Powertrain Control Module C2 - Black/Orange 38 Way
Powertrain Control Module C2 - Black/Orange 38 Way

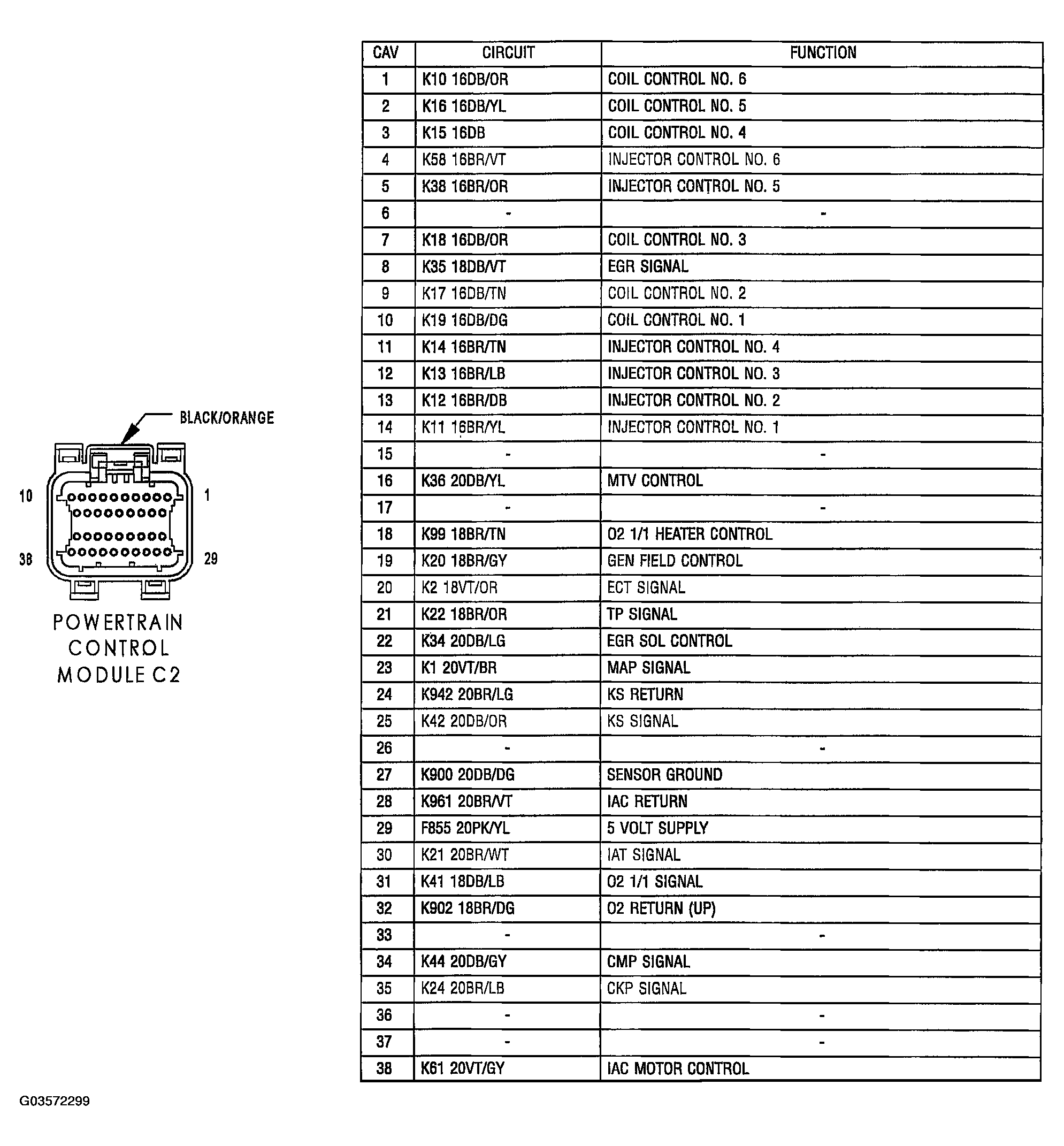

Fig 1: Identifying Powertrain Control Module C2 Connector Terminals And Specification (Black/Orange 38 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
