Wiper Module-Rear - Natural 3 Way

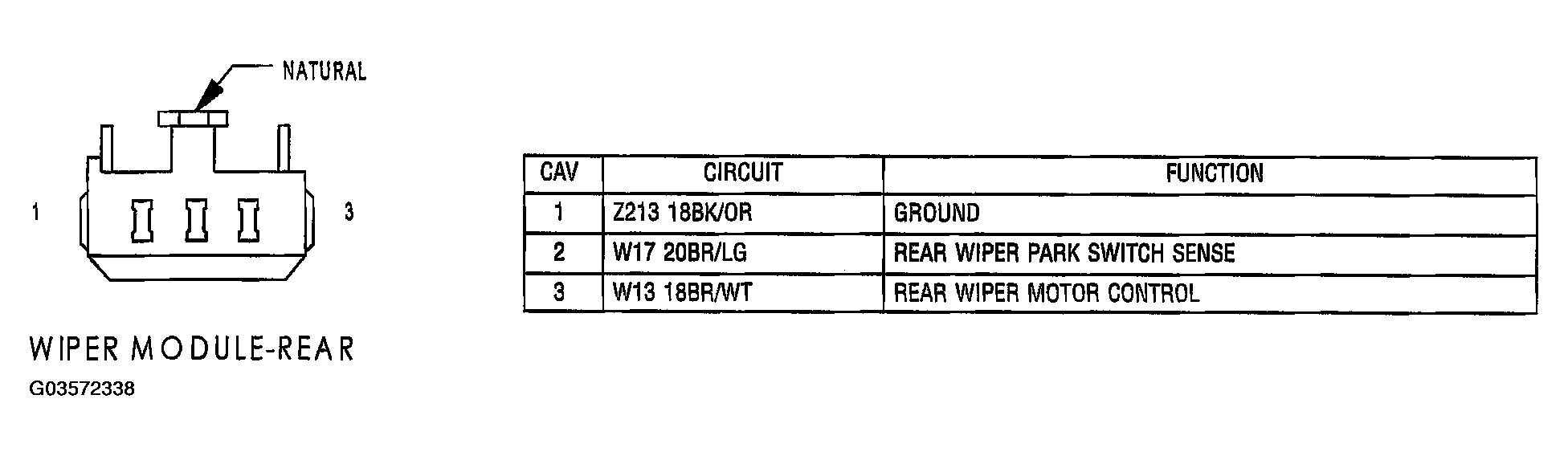

Fig 1: Identifying Wiper Module-Rear Connector Terminals And Specification (Natural 3 Way)
G03572338Courtesy of DAIMLERCHRYSLER CORP.
