Chrysler
›
2004
›
Pacifica AWD
›
Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Diagnostic Procedures - Component Locations
›
Schematic Diagrams
›
Automatic Temperature Control System
Automatic Temperature Control System

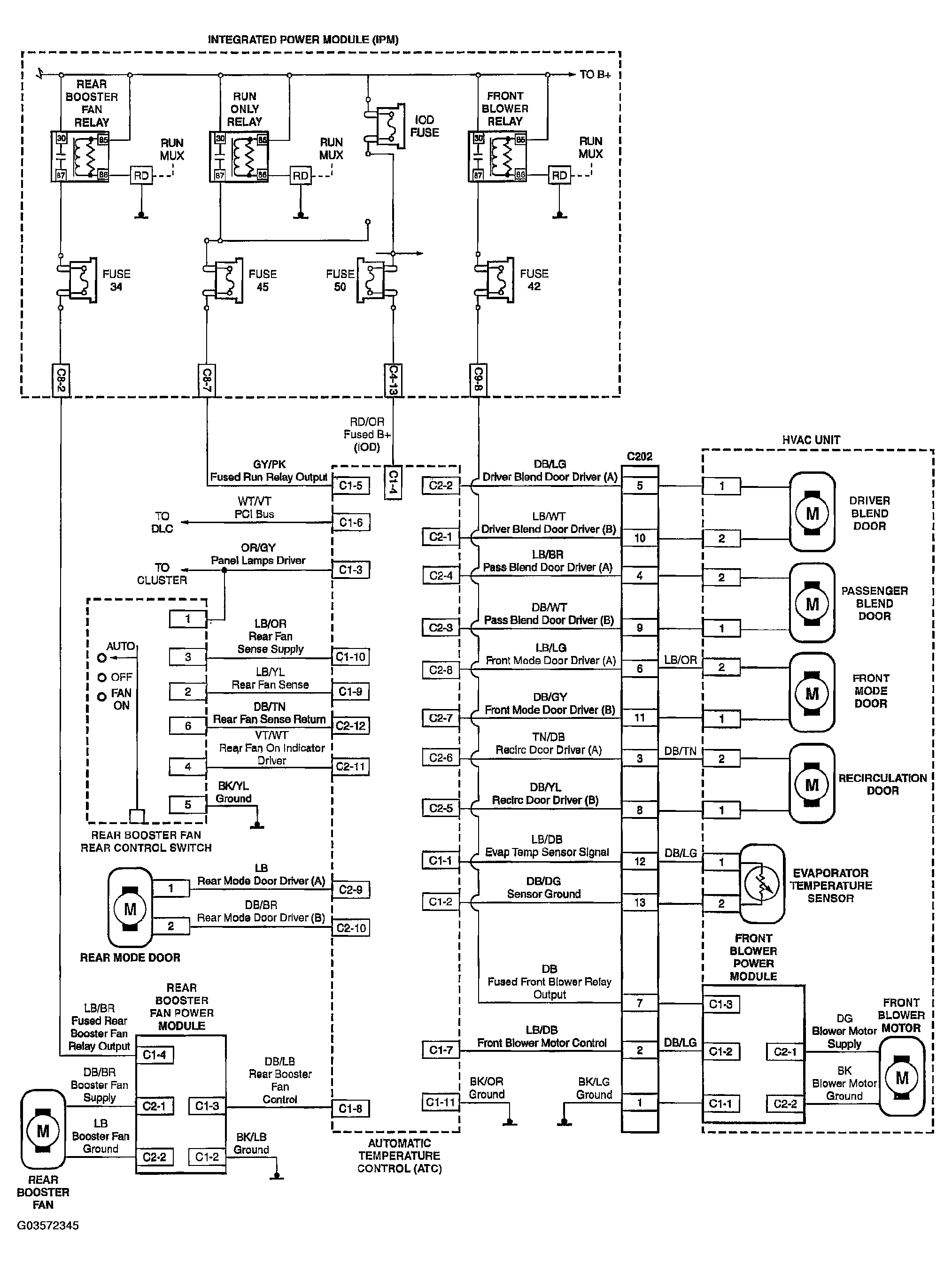

Fig 1: Automatic Temperature Control System - Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
