Door Glass: Removal
- Remove door trim panel. (Refer to REMOVAL
).
- Remove watershield. (Refer to REMOVAL
).
- Remove inner belt molding. (Refer to FRONT INNER BELT MOLDING WEATHERSTRIP
)

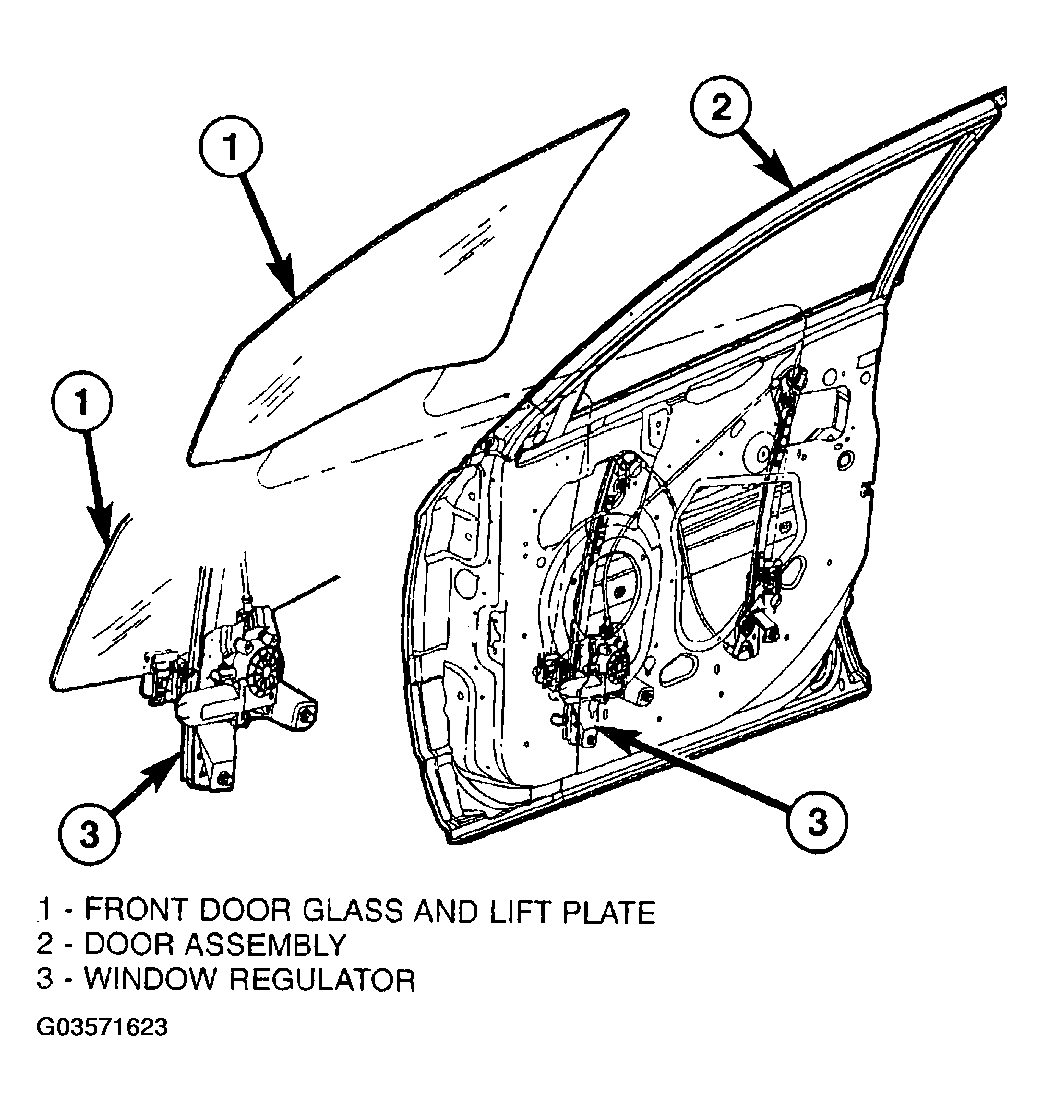

- Position glass to gain access to front and rear regulator lift plate's through front and rear access holes in door panel (Fig 1
).
- Loosen damp bolts attaching glass brackets to widow glass.
- Remove glass from regulator glass brackets.
- Disengage glass from glass run weatherstrip.
- Insert front of glass between glass run channel and outer door panel.
- Lift glass upward and out of exterior side of the opening at top of door.
- Remove glass from vehicle.
Courtesy of DAIMLERCHRYSLER CORP.
