Latch Striker: Installation

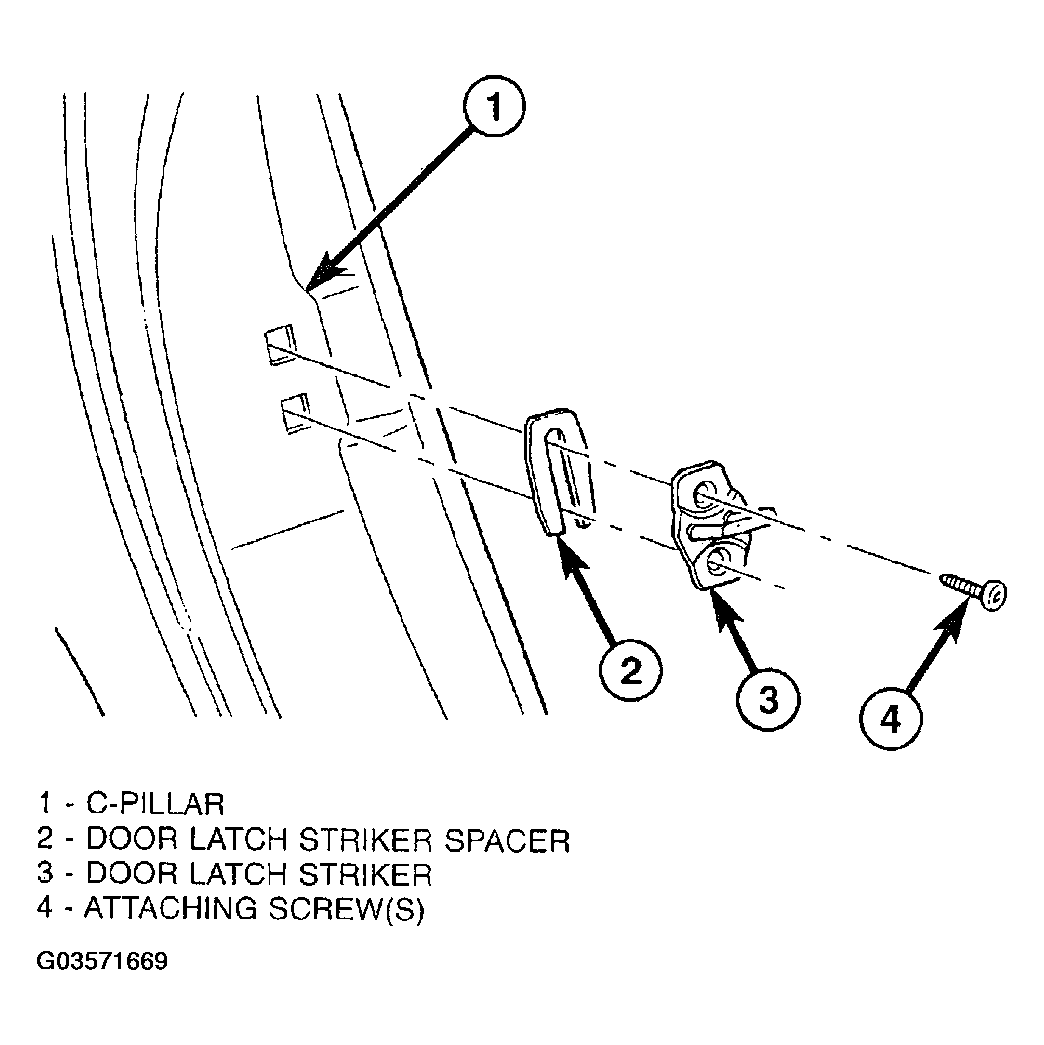

- Position latch striker and any shims retrieved on vehicle (Figure).
- Loosely install screws attaching latch striker to C-pillar.
- Align latch striker to outline on C-pillar made previously.
- Tighten fasteners to 26 N.m (19 ft. lbs.) torque.
- Verify door fit and operation. Adjust latch striker as necessary.
