Trim Panel: Installation

Place trim panel in position.

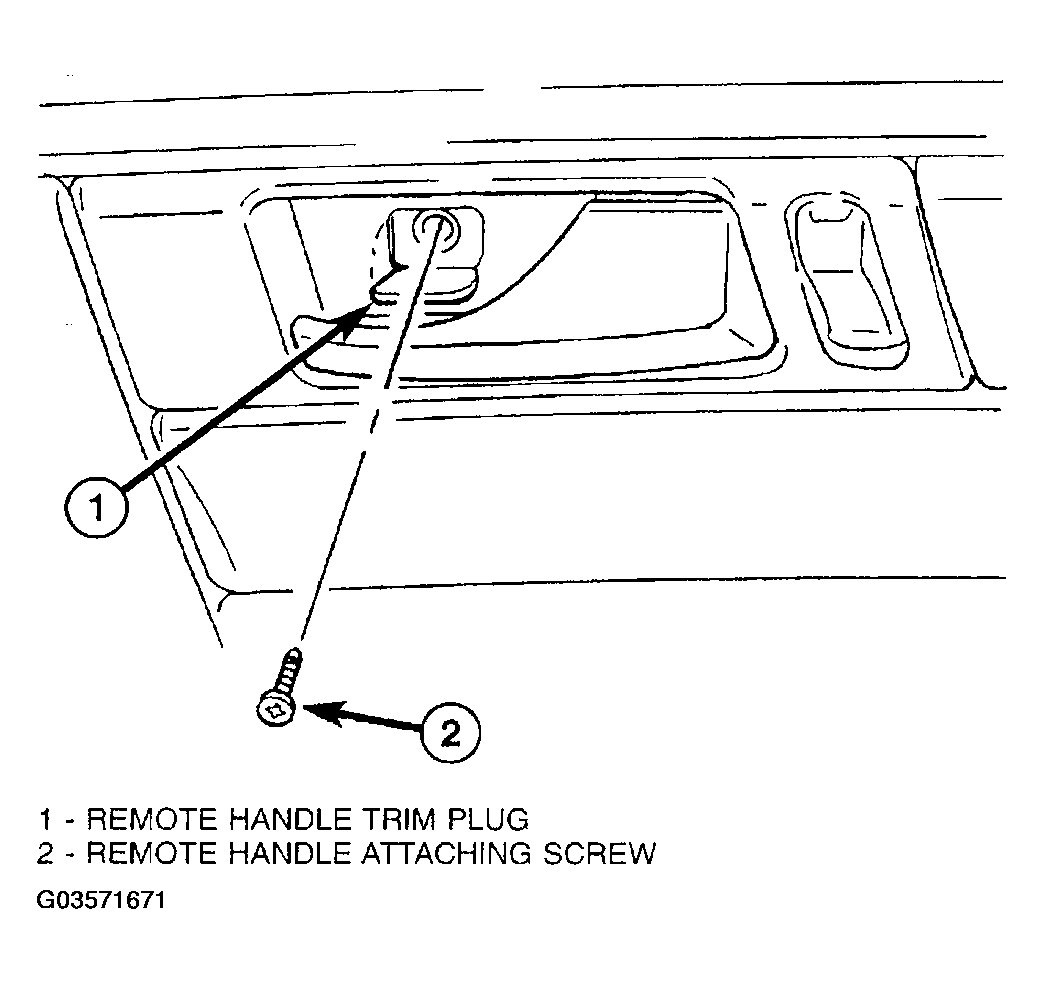

Fig 1: Removing Remote Handle Attaching Screw
Courtesy of DAIMLERCHRYSLER CORP.

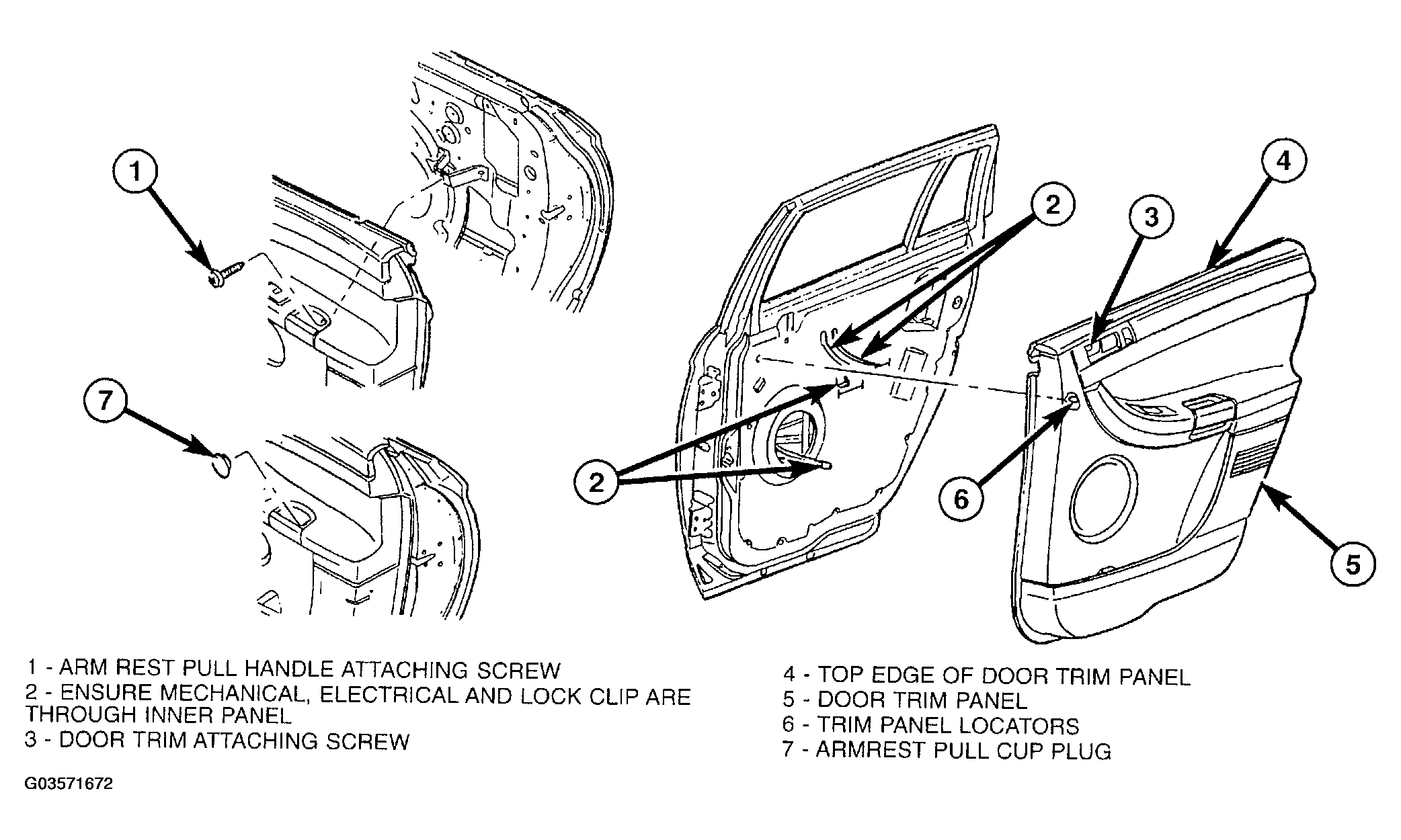

Fig 2: Disengaging Push-In Fasteners Attaching Trim To Door Panel Around Perimeter Of Trim Panel
Courtesy of DAIMLERCHRYSLER CORP.

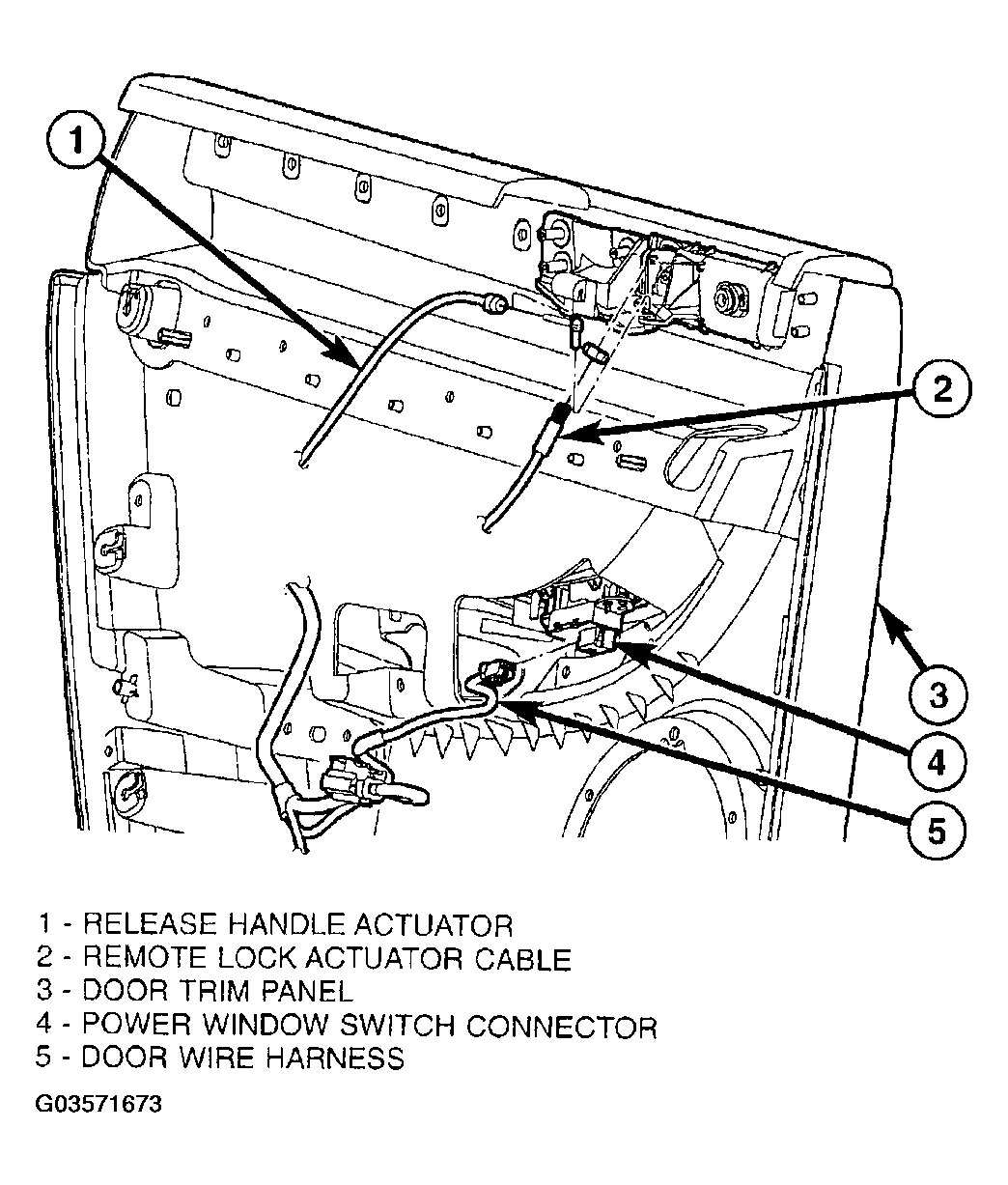

Fig 3: Disconnecting Rear Door Trim Panel
Courtesy of DAIMLERCHRYSLER CORP.
Connect wire connector to power door lock switch, mirror switch, and power window switch if so equipped.
CAUTION: Do not allow door trim panel to hang by he wire connector or wiring.
Move trim panel away from door and engage actuator cables attaching inside remote handle (Fig 3) and (Fig 4).
Connect trim panel to retainer channel in inner belt weatherstrip at top of door gently jiggling while lowering into position.
Tilt trim panel outward to align locator pins into position on backside of trim panel (Fig 2).
Applying hand pressure engage push pin fasteners attaching trim panel to door around perimeter of trim panel.
Install screw behind inside remote handle and close remote handle trim plug (Fig 1).
Install screw inside arm rest pull cup and close remote handle trim plug (Figure).
Raise door glass.
Close door.

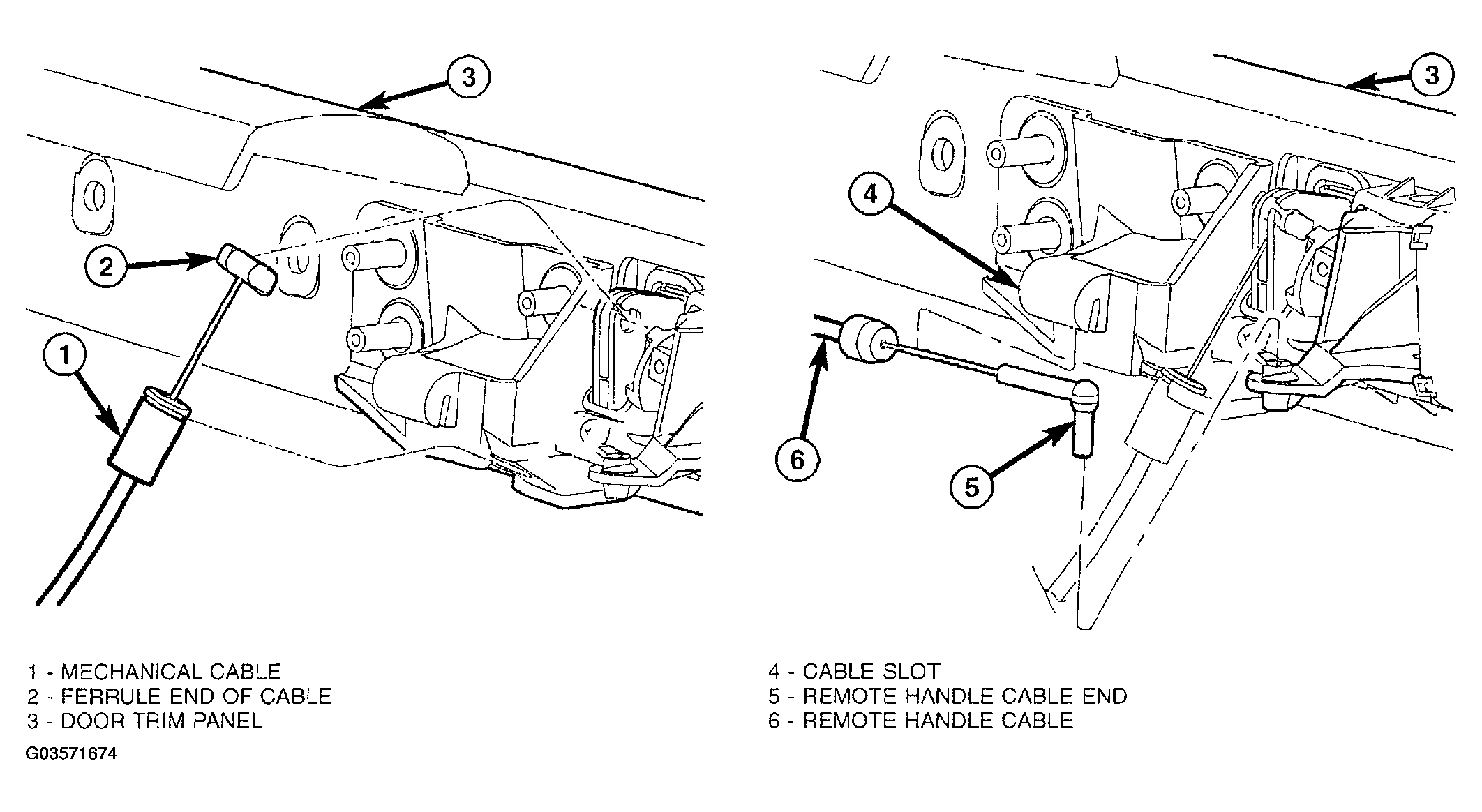

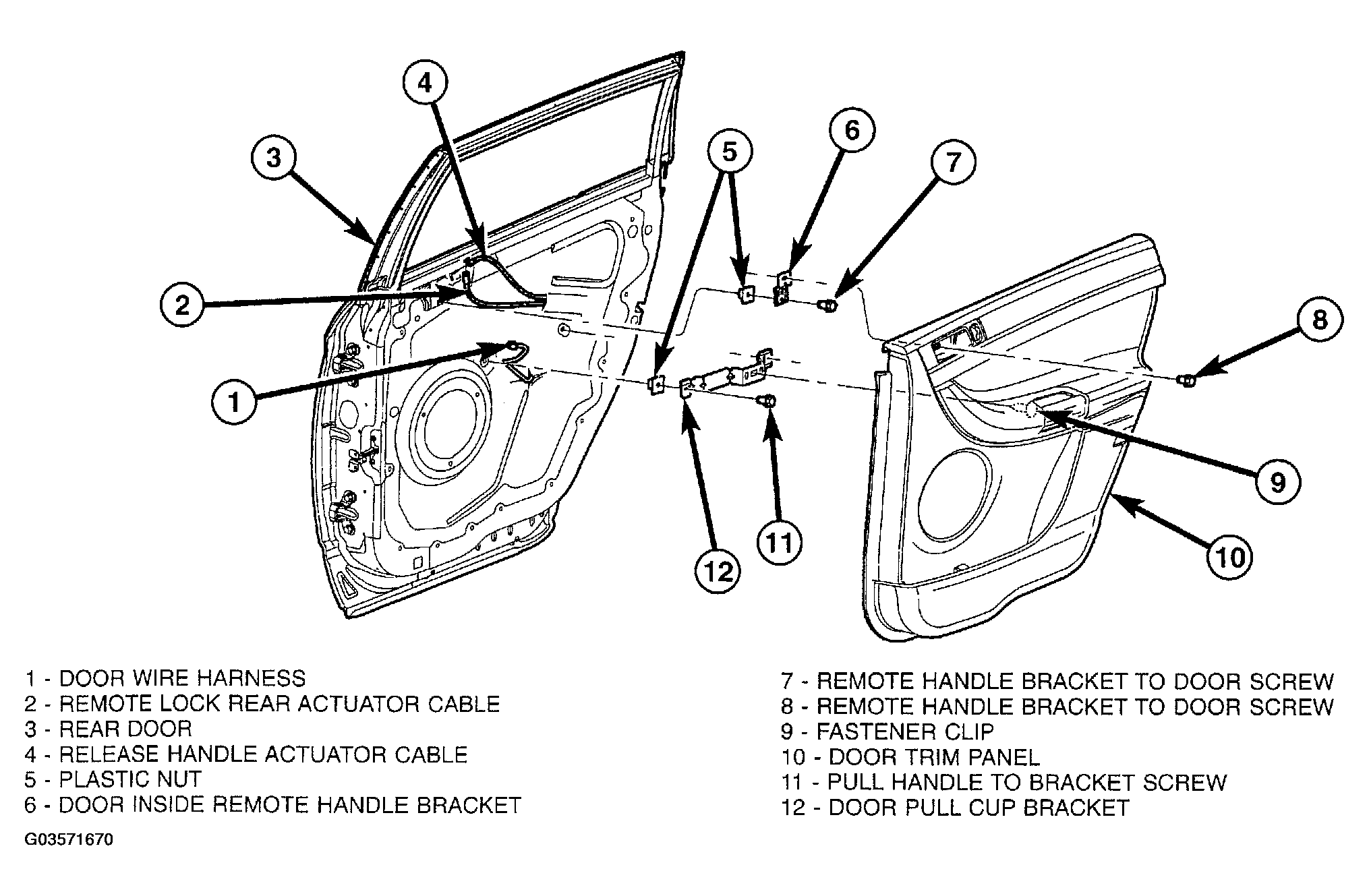

Fig 4: Identifying Rear Door Trim Panel Mechanical Connections
Courtesy of DAIMLERCHRYSLER CORP.
