Cluster Bezel: Installation

  1. Connect the electrical connector to the instrument panel switch pod (EVIC, NAV, Clock, and Hazard Switch).

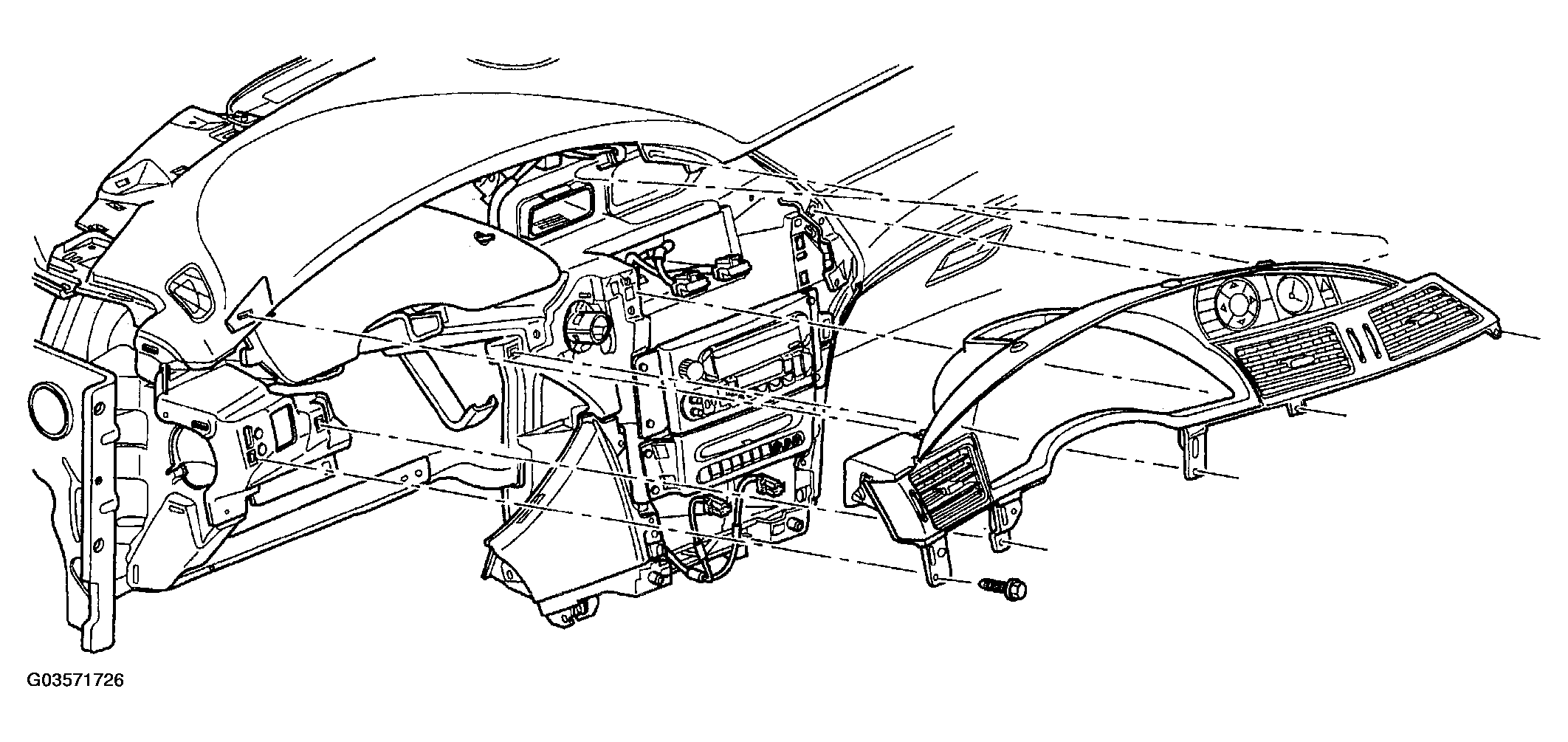

  2. Position the cluster bezel over retaining slots and firmly snap into place (Figure ).
  3. Install the eight retaining screws to the cluster bezel (Figure ).
  4. Position the left side instrument panel center stack trim from panel over retaining slots and firmly snap into place.
  5. Install the instrument panel center bezel (Refer to INSTALLATION  ).
  6. Position the left lower instrument panel trim plate over the retaining slots and firmly snap into place. Install the two screws.
  7. Position the left end cover over the retaining slots and firmly snap into place.
  8. Install the knee blocker airbag (Refer to AIR BAG RESTRAINT SYSTEMS ).
  9. Position the steering opening cover over retaining and firmly snap into place. Install the two retaining screws.
    WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to AIR BAG RESTRAINT SYSTEMS ) FIRST.
  10. Verify vehicle and system operation.
