Instrument Panel End Cap: Removal

  1. Open front door.

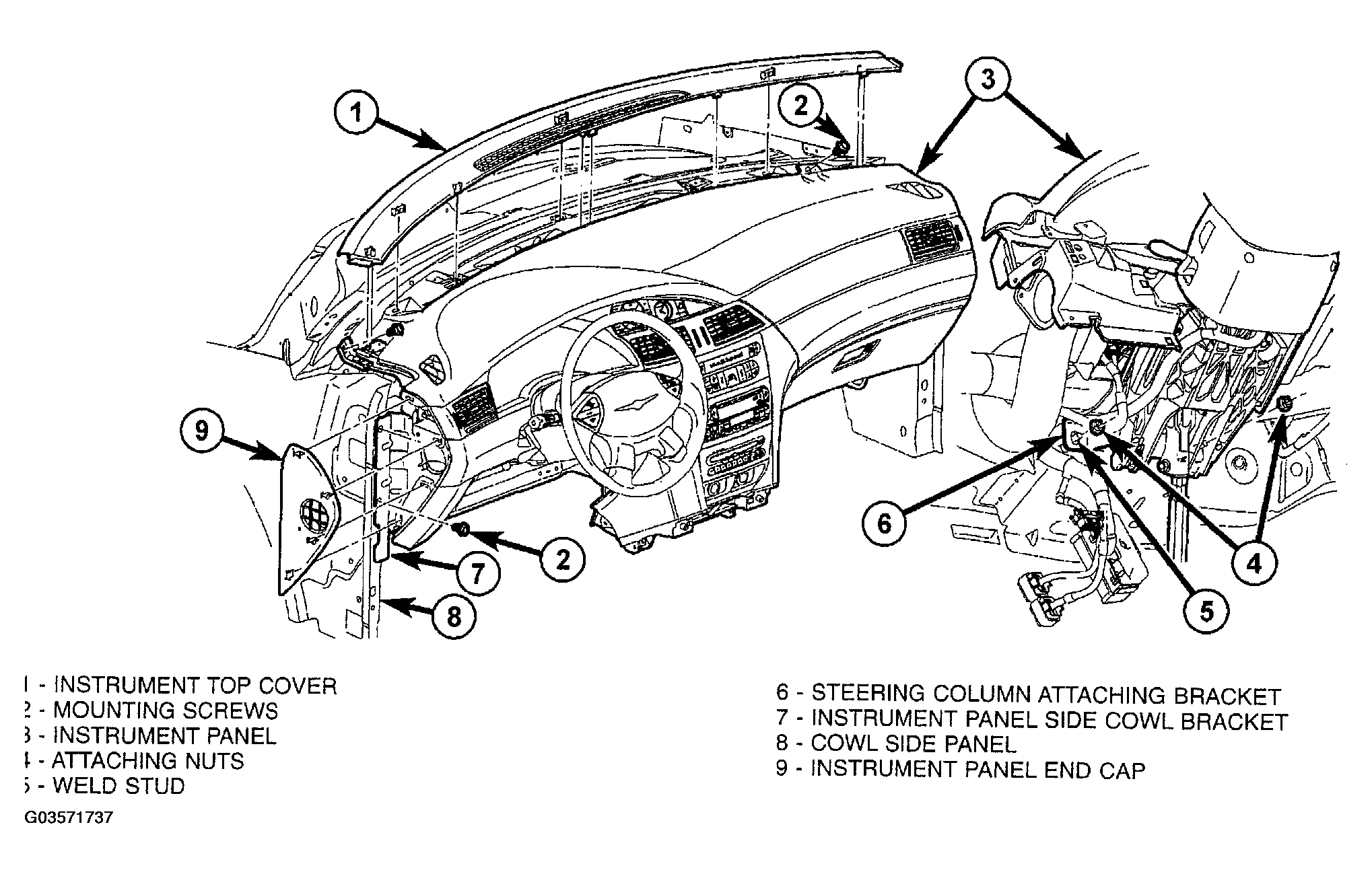

  2. Using a trim stick C-4755 or equivalent, disengage the locking tabs attaching instrument panel end cap (Figure ).
  3. Remove end cap.
