Fuel Tank Filler Tube: Removal

Release the fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE PROCEDURE .
Disconnect the negative battery cable.
Raise vehicle and support.
Remove the left rear tire.

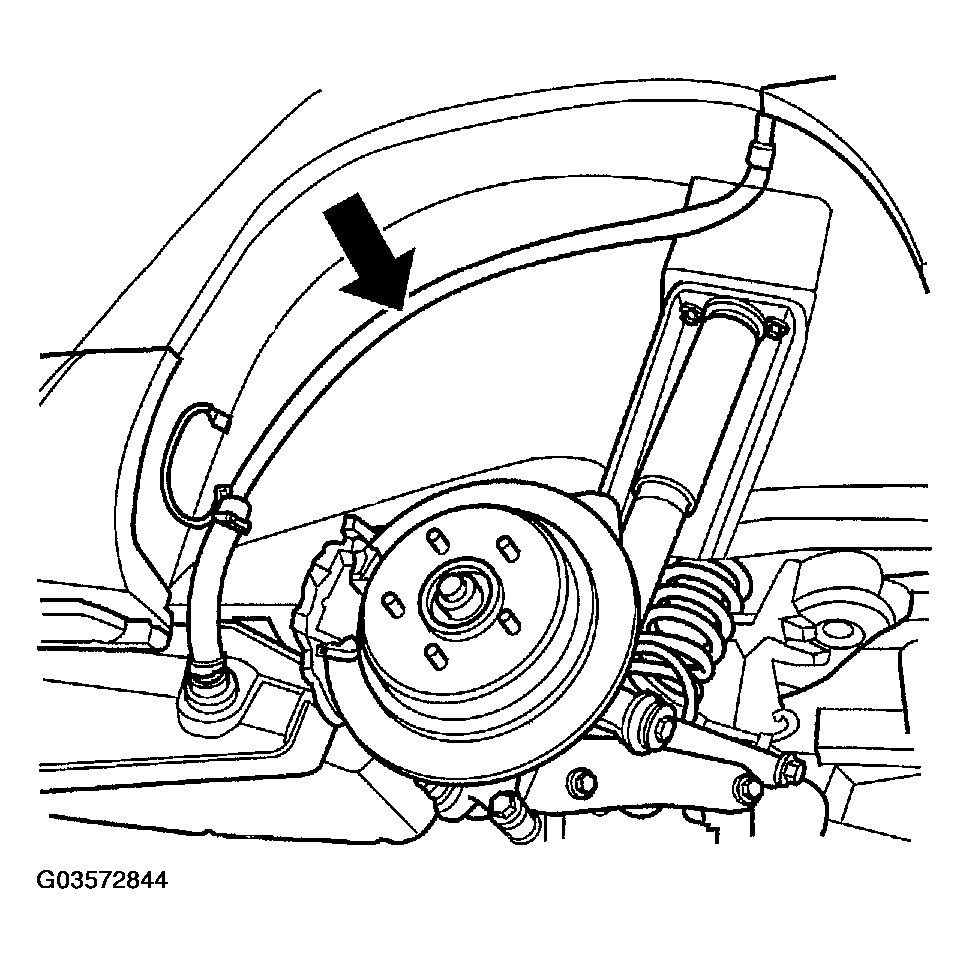

Fig 1: Locating Fuel Filler Tube
Courtesy of DAIMLERCHRYSLER CORP.
Remove 3 screws from filler neck to quarter panel (Fig 2).

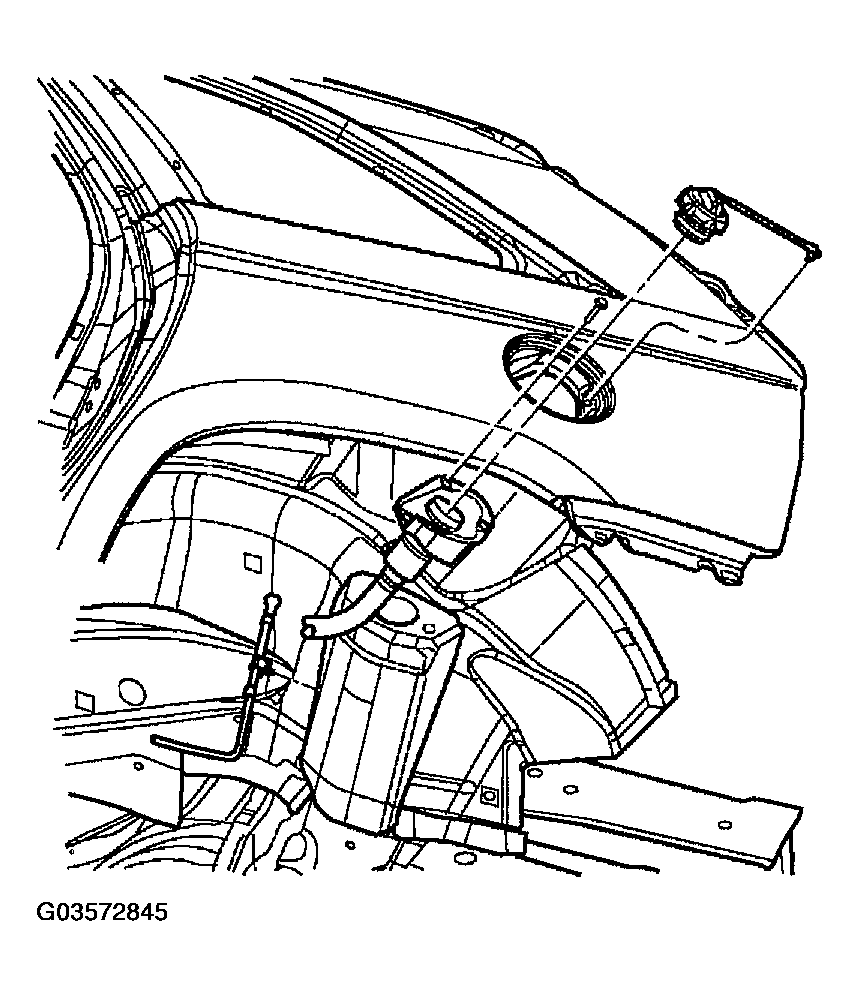

Fig 2: Removing Filler Neck
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the vent line to filler tube.
Remove the fuel filler tube from the rubber hose at fuel tank (Fig 3).

Fig 3: Removing Filler Tube To Rubber Hose
Courtesy of DAIMLERCHRYSLER CORP.
Remove the filler tube.
