A/C Pressure Transducer Connector End View
A/C Pressure Transducer Connector End View

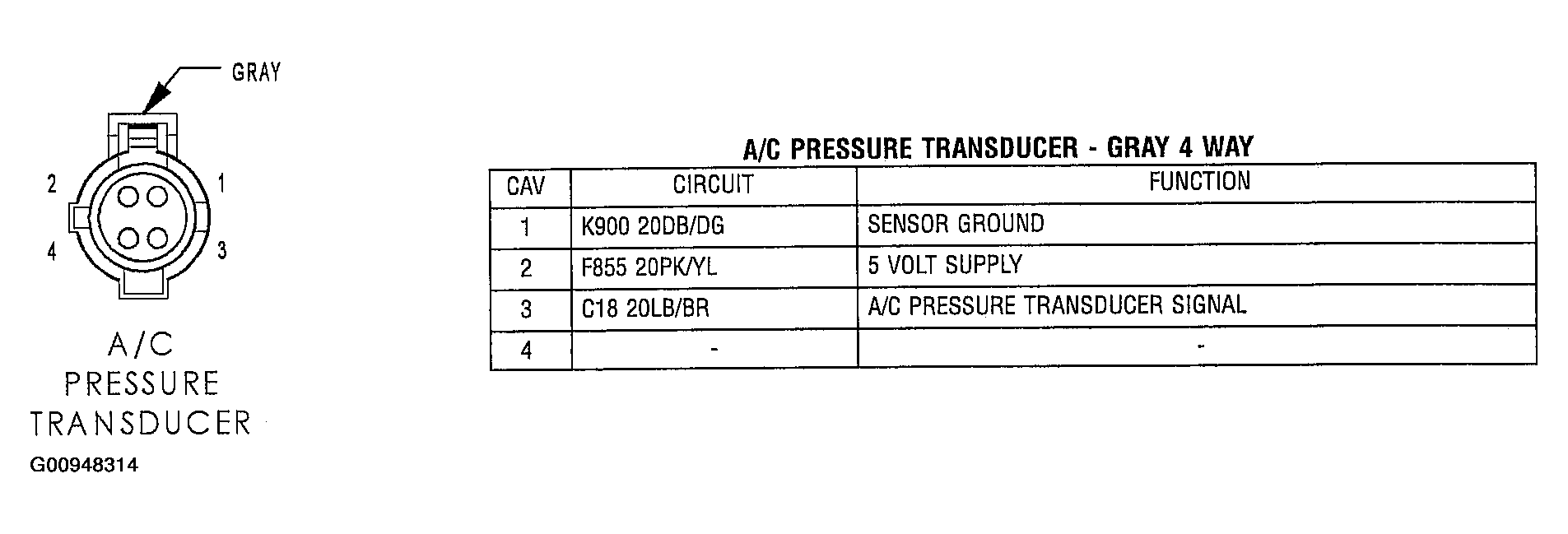

Fig 1: Identifying A/C Pressure Transducer - Gray 4 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
