EVAP/Purge Solenoid Connector End Views
EVAP/Purge Solenoid Connector End Views

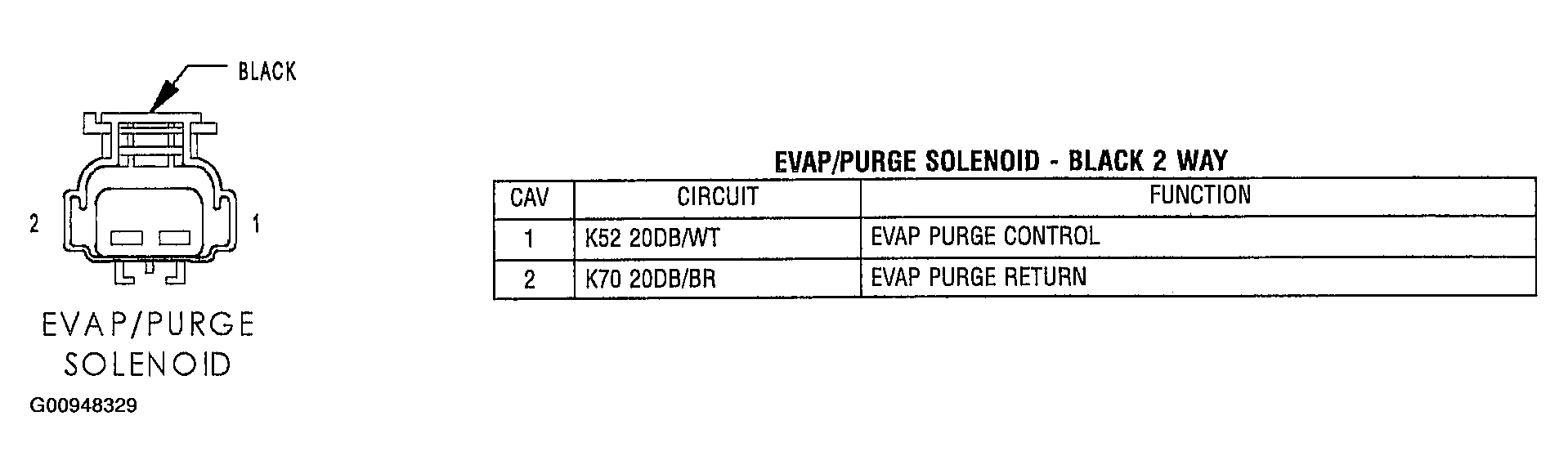

Fig 1: Identifying EVAP/PURGE Solenoid - Black 2 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
