Fuel Injector Connector End Views

Fig 1: Identifying Fuel Injector No. 1 - Black 2 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Fuel Injector No. 2 - Black 2 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.

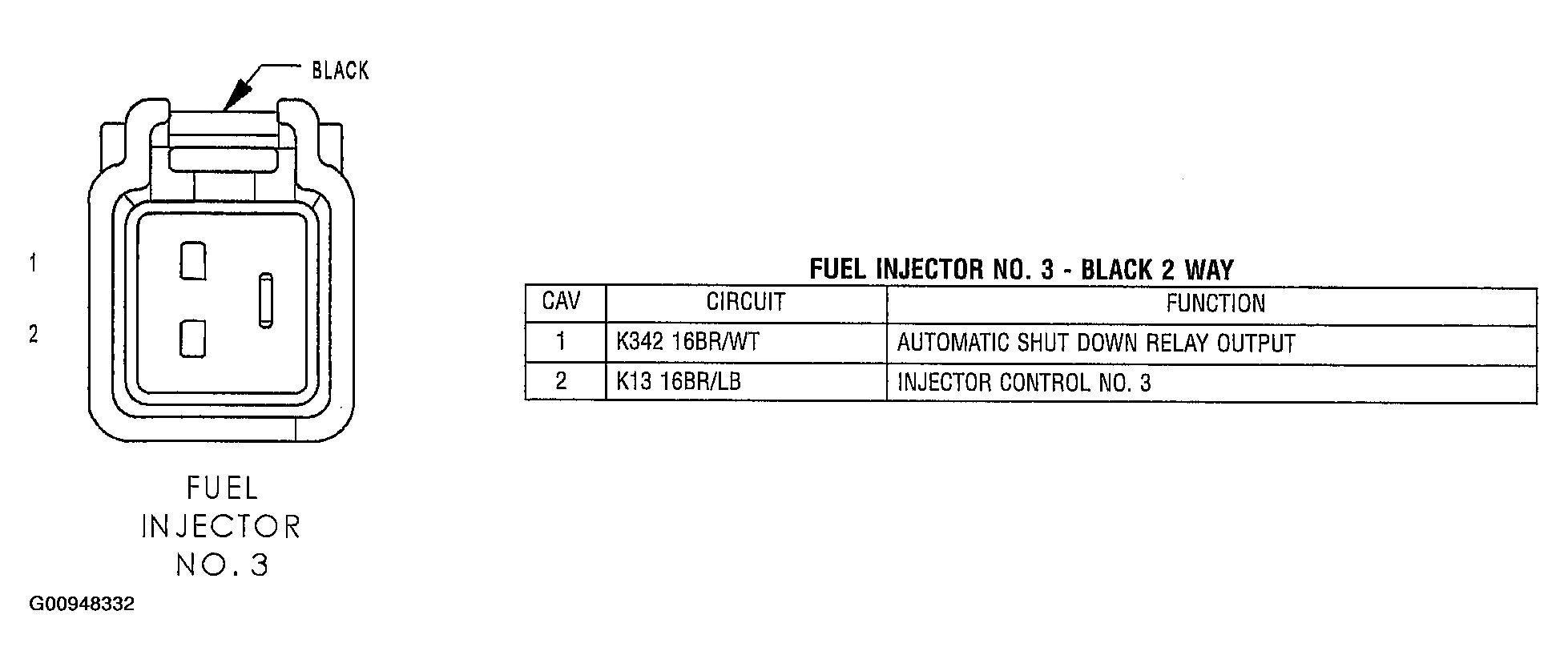

Fig 3: Identifying Fuel Injector No. 3 - Black 2 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.

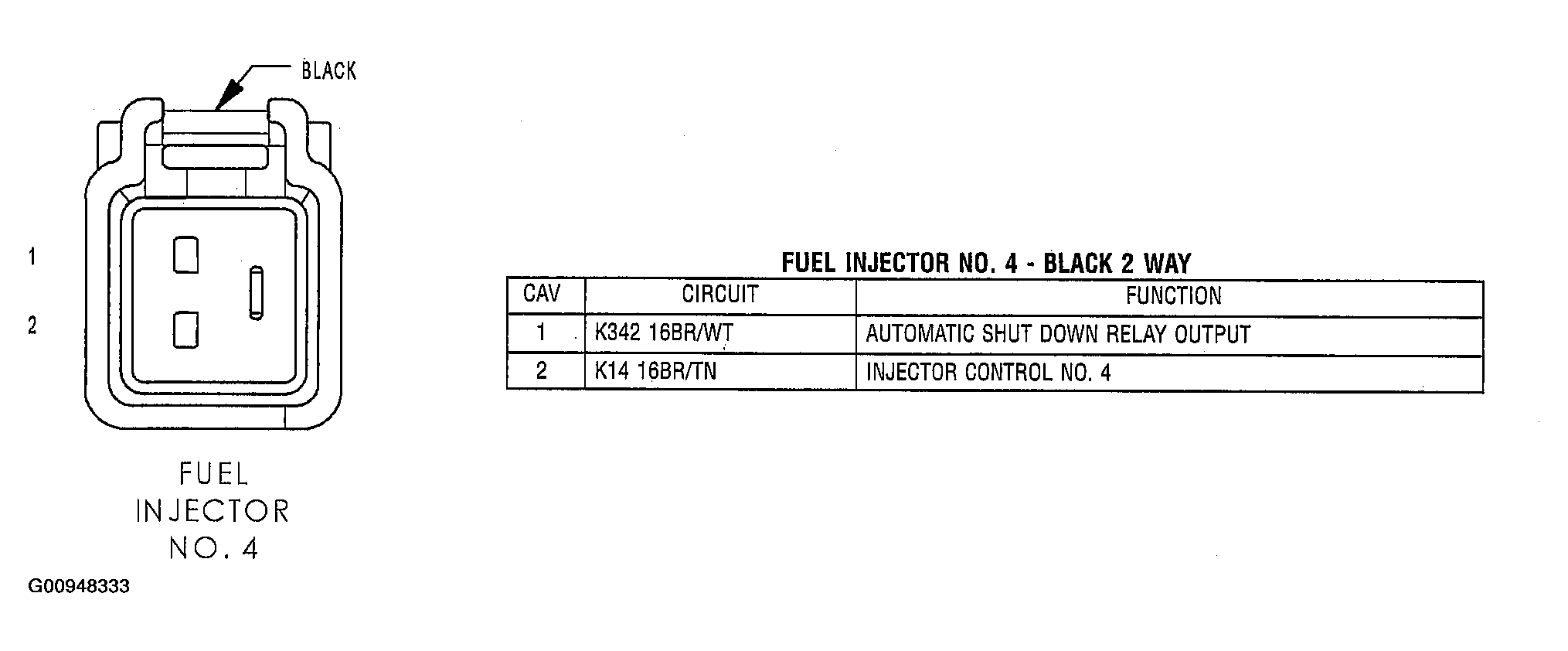

Fig 4: Identifying Fuel Injector No. 4 - Black 2 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.

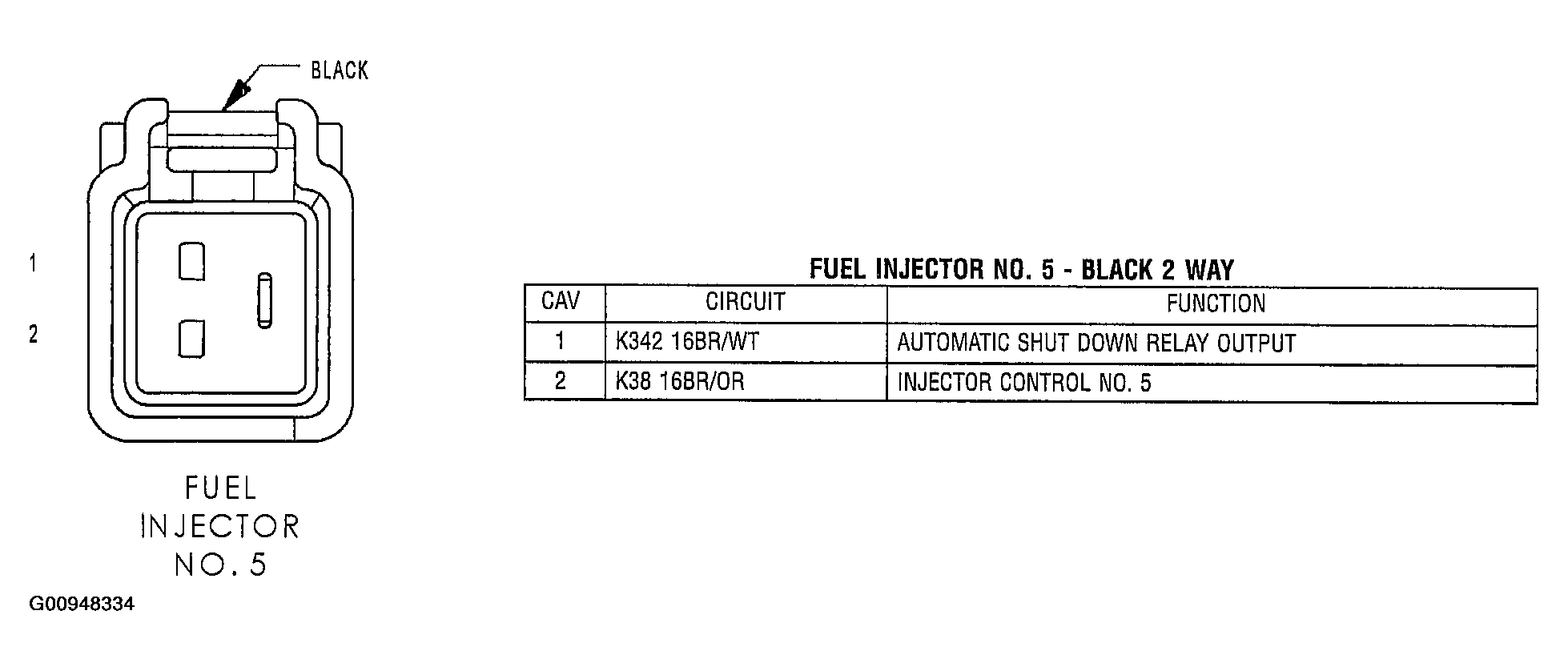

Fig 5: Identifying Fuel Injector No. 5 - Black 2 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.

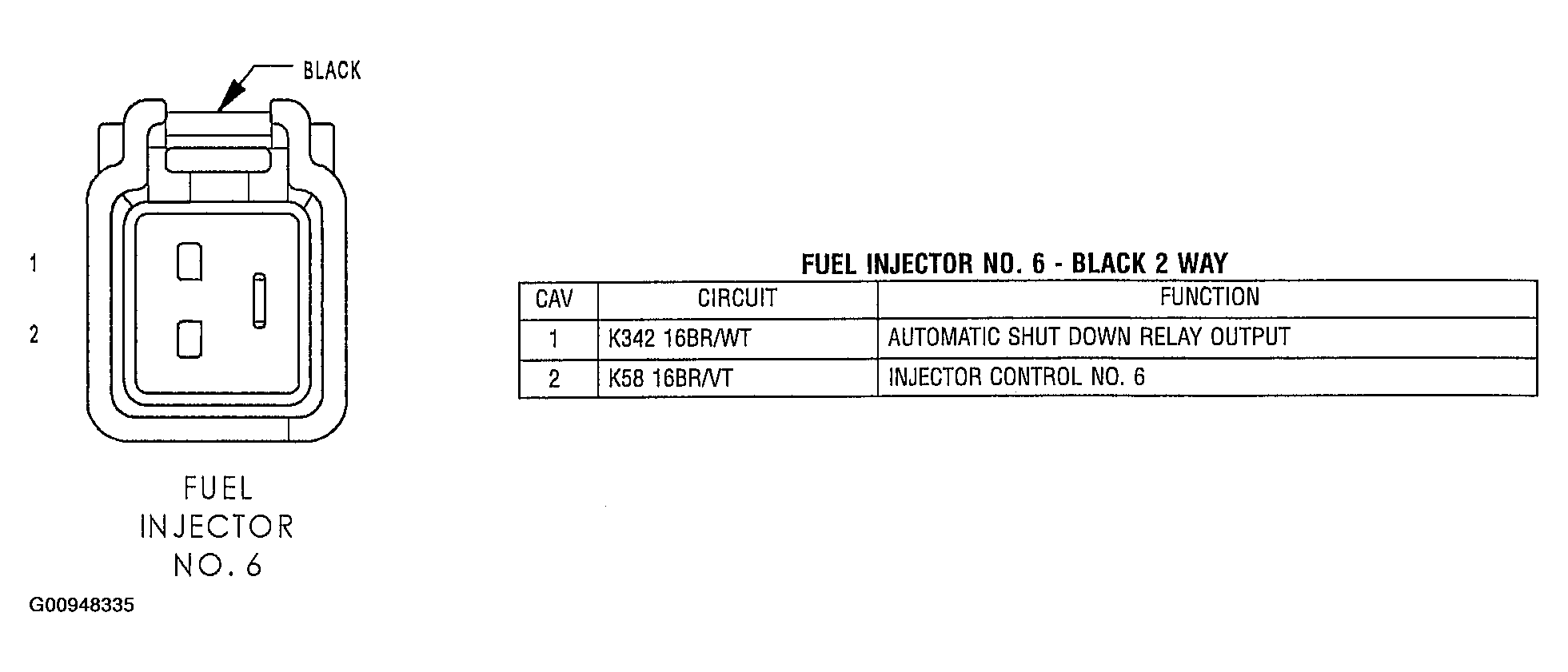

Fig 6: Identifying Fuel Injector No. 6 - Black 2 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.
