Manifold Absolute Pressure Sensor Connector End View
Manifold Absolute Pressure Sensor Connector End View

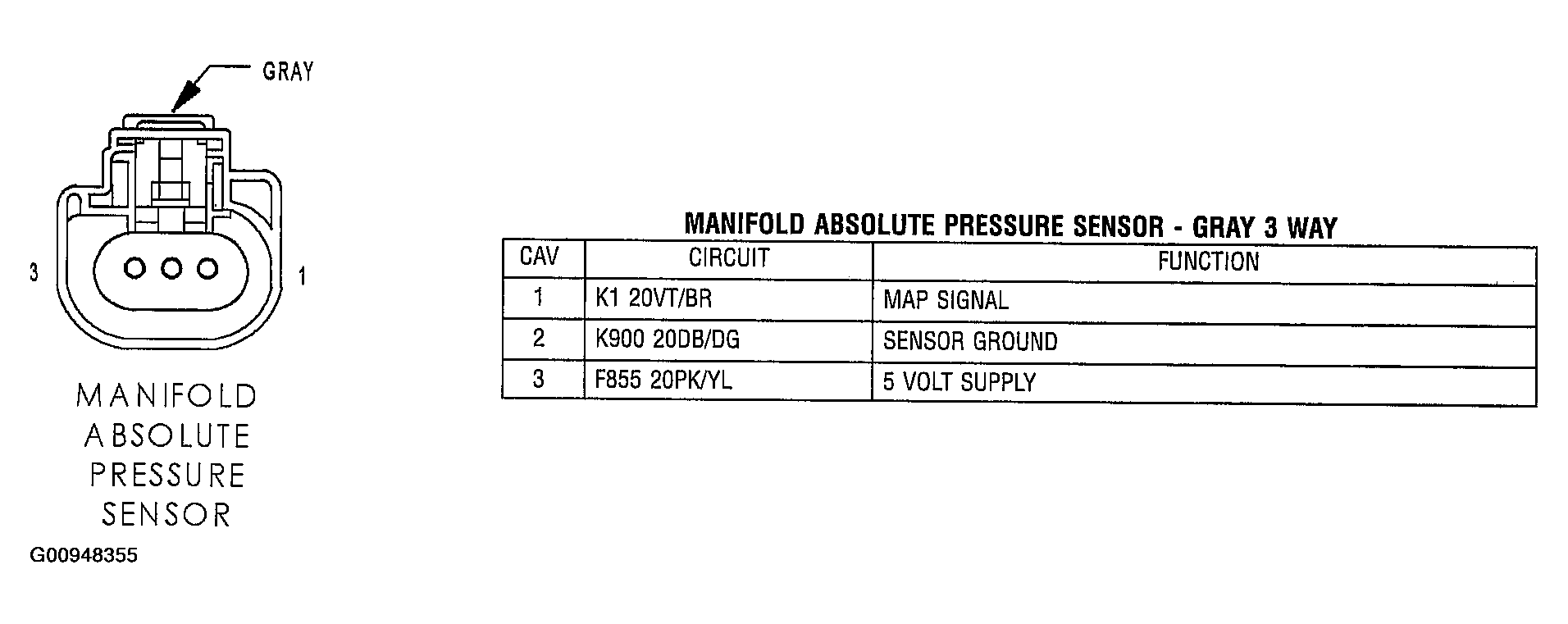

Fig 1: Identifying Manifold Absolute Pressure Sensor - Gray 3 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
