SKREEM Module Connector End View

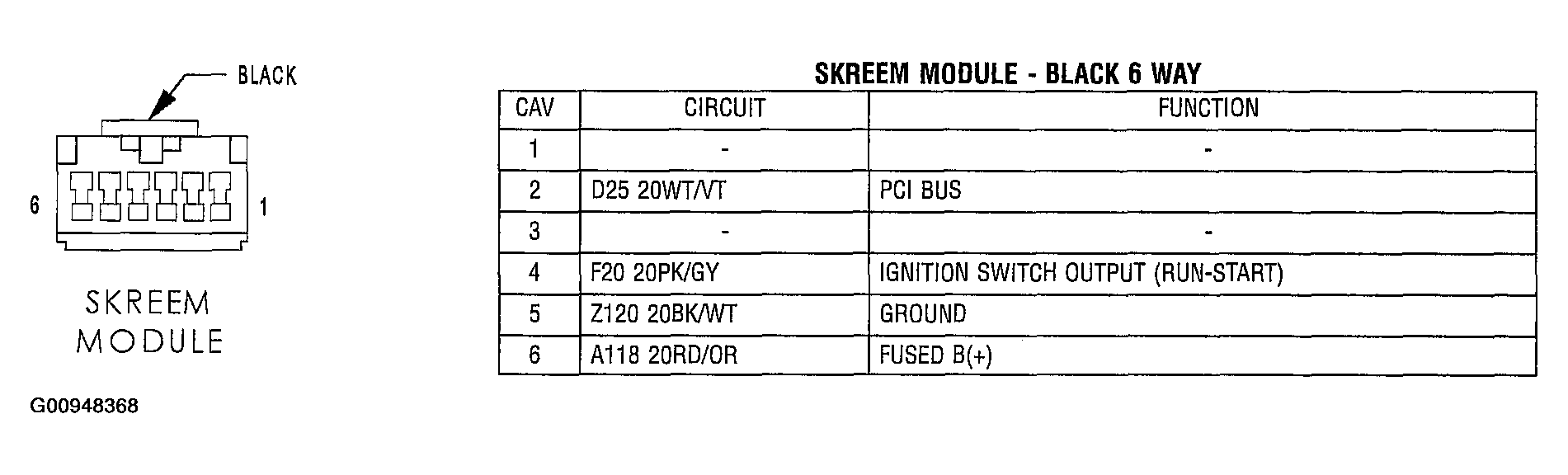

Fig 1: Identifying Skreem Module - Black 6 Way Connector
G00948368Courtesy of DAIMLERCHRYSLER CORP.
