Short Runner Valve Solenoid Connector End View
Short Runner Valve Solenoid Connector End View

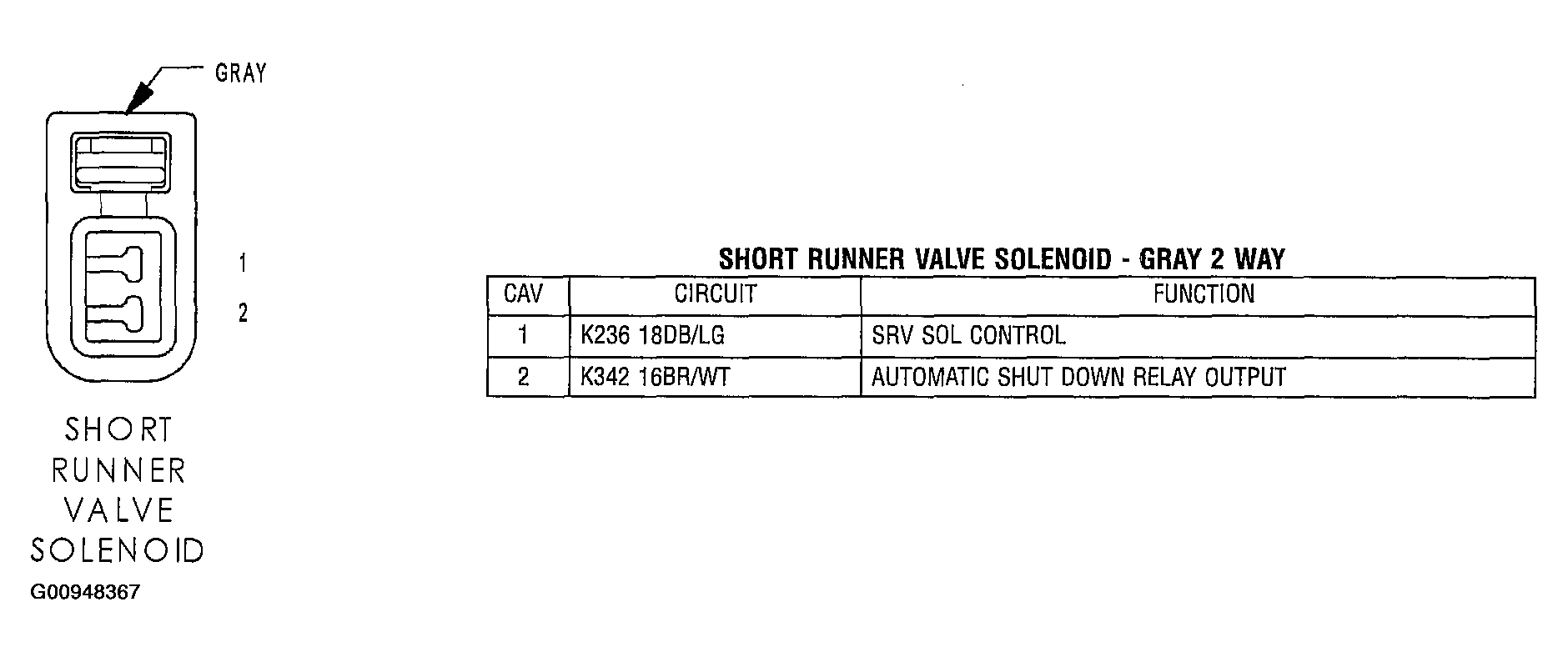

Fig 1: Identifying Short Runner Valve Solenoid - Gray 2 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
