P0031-O2 Sensor 1/1 Heater Circuit Low, P0037-O2 Sensor 1/2 Heater Circuit Low
›
Diagnostic Procedure
Diagnostic Procedure

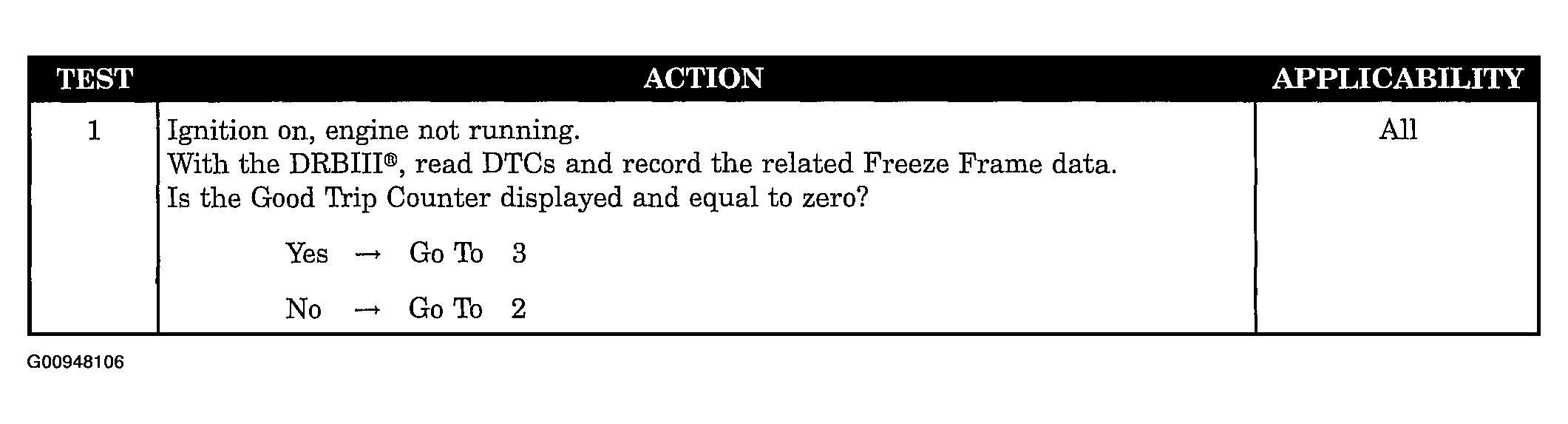

Fig 1: Diagnostic Chart - Sensor Heater Circuit Low (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

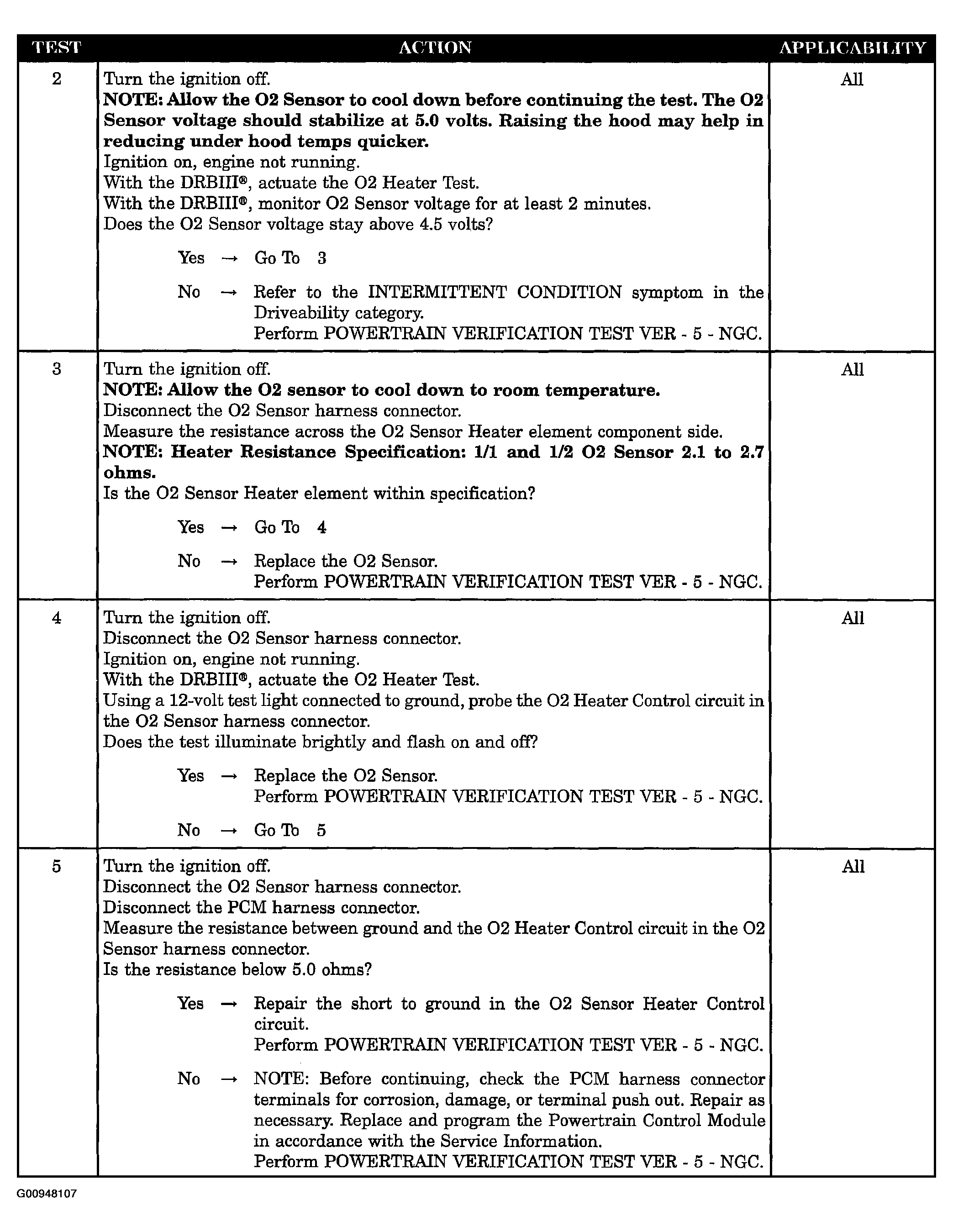

Fig 2: Diagnostic Chart - Sensor Heater Circuit Low (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
