DRIVEABILITY - NGC - Diagnostic Tests
›
P0032-O2 Sensor 1/1 Heater Circuit High, P0038-O2 Sensor 1/2 Heater Circuit High
›
Diagnostic Procedure
Diagnostic Procedure

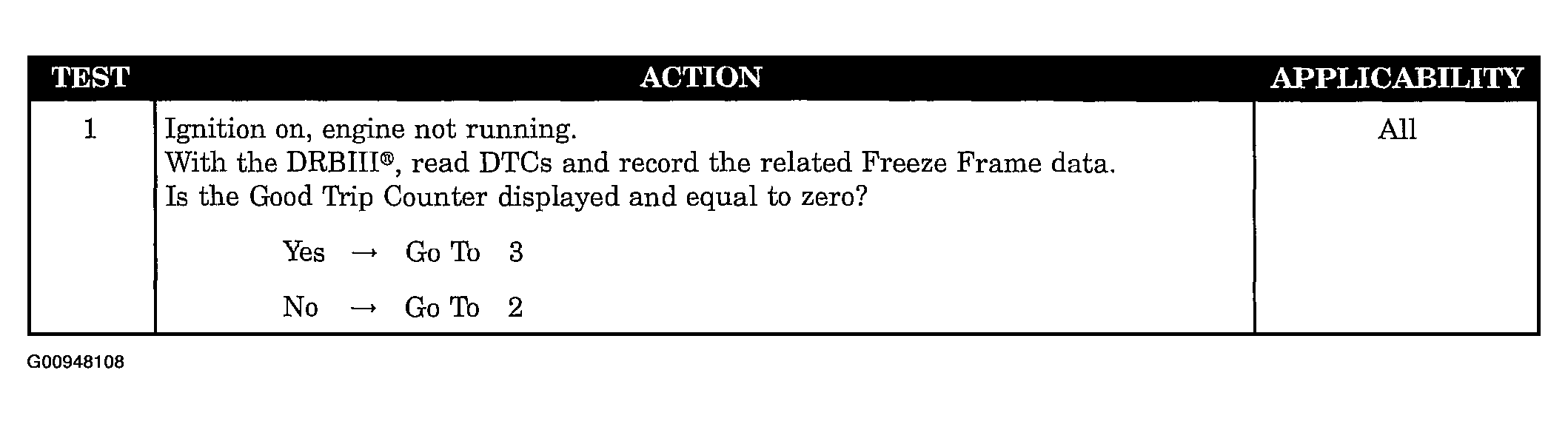

Fig 1: Diagnostic Chart - Sensor Heater Circuit High (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

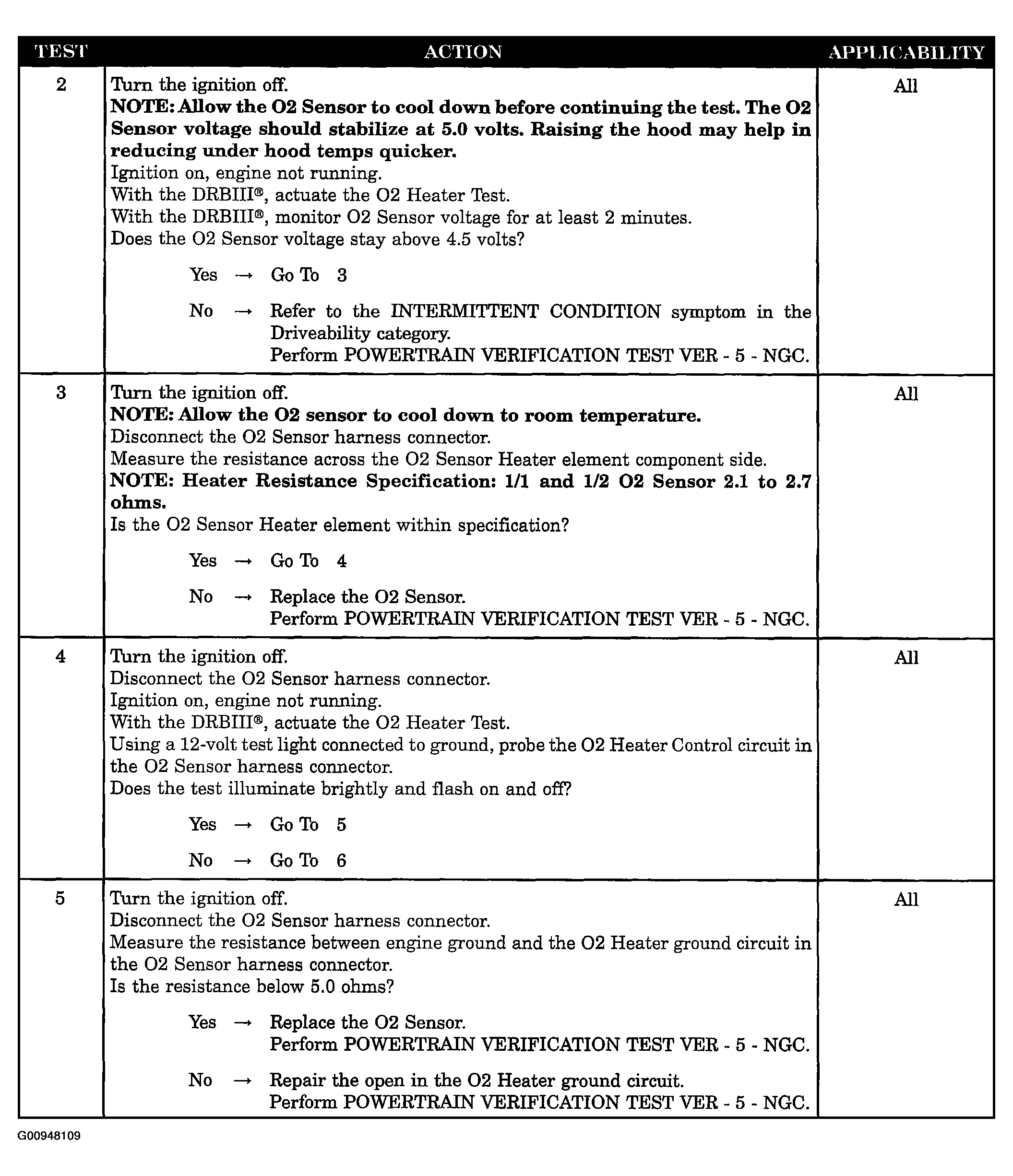

Fig 2: Diagnostic Chart - Sensor Heater Circuit High (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

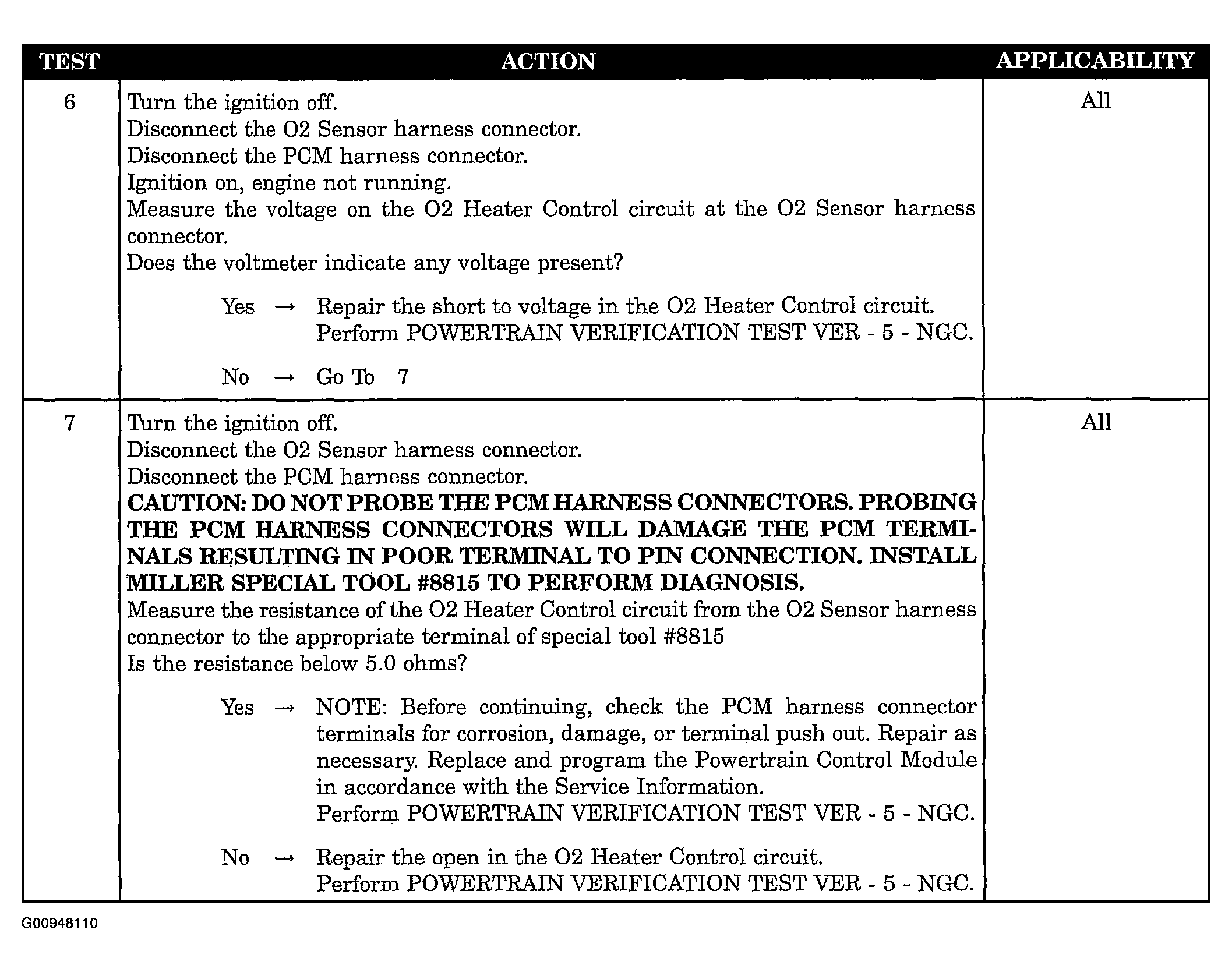

Fig 3: Diagnostic Chart - Sensor Heater Circuit High (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
