P0133-O2 Sensor 1/1 Slow Response, P0139-O2 Sensor 1/2 Slow Response
›
Diagnostic Procedure
Diagnostic Procedure

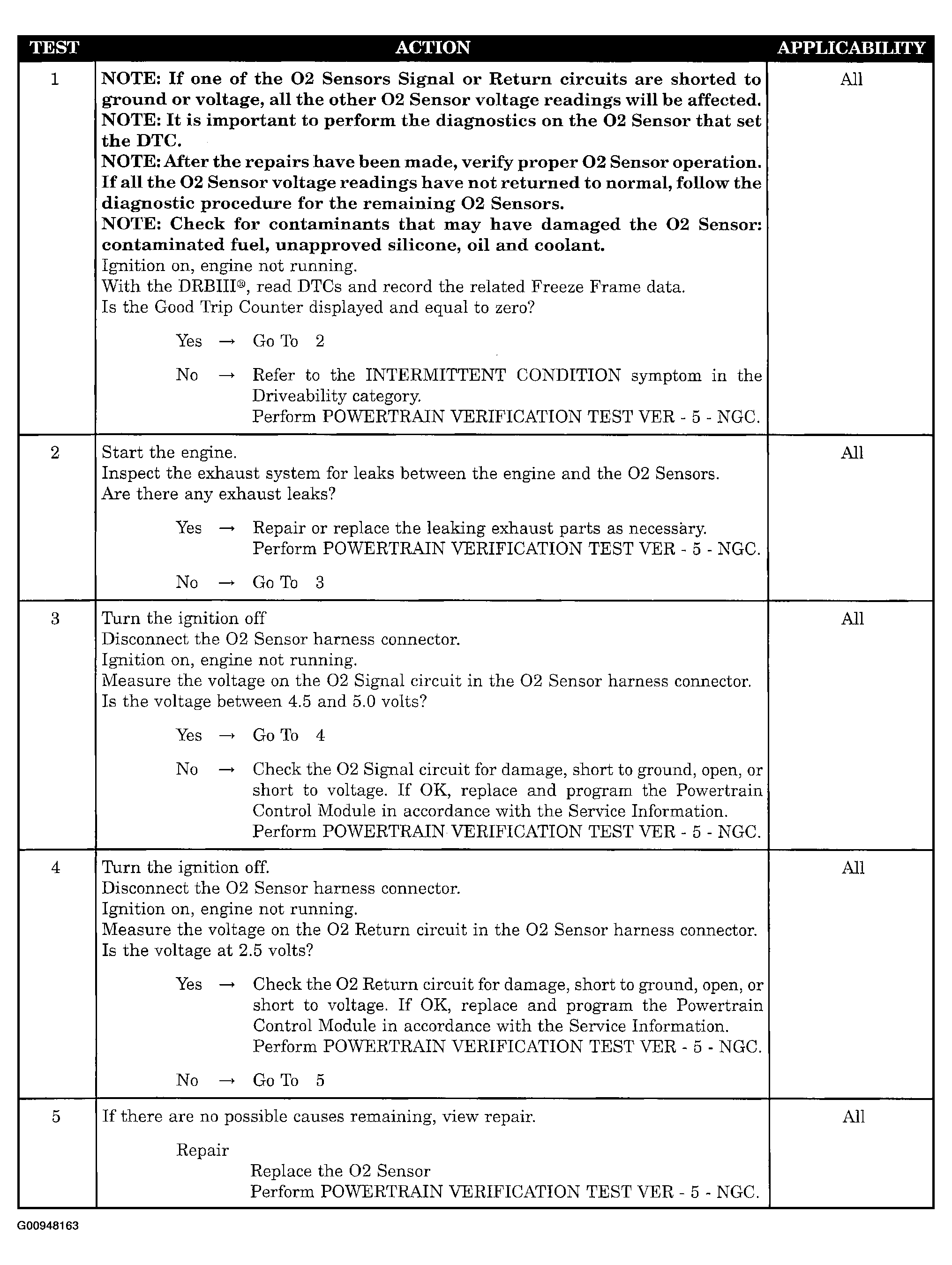

Fig 1: Diagnostic Chart - Sensor Slow Response
Courtesy of DAIMLERCHRYSLER CORP.
