Possible Causes

CHECKING DTCS
CHECKING SKIM DTCS
FUEL PRESSURE OUT OF SPECS
TP SENSOR SWEEP
TP SENSOR VOLTAGE GREATER THAN 0.92 VOLTS WITH THROTTLE CLOSED
ECT SENSOR OPERATION
OTHER POSSIBLE CAUSES FOR START & STALL
RESTRICTED FUEL SUPPLY LINE
FUEL PUMP INLET STRAINER PLUGGED
FUEL PUMP MODULE

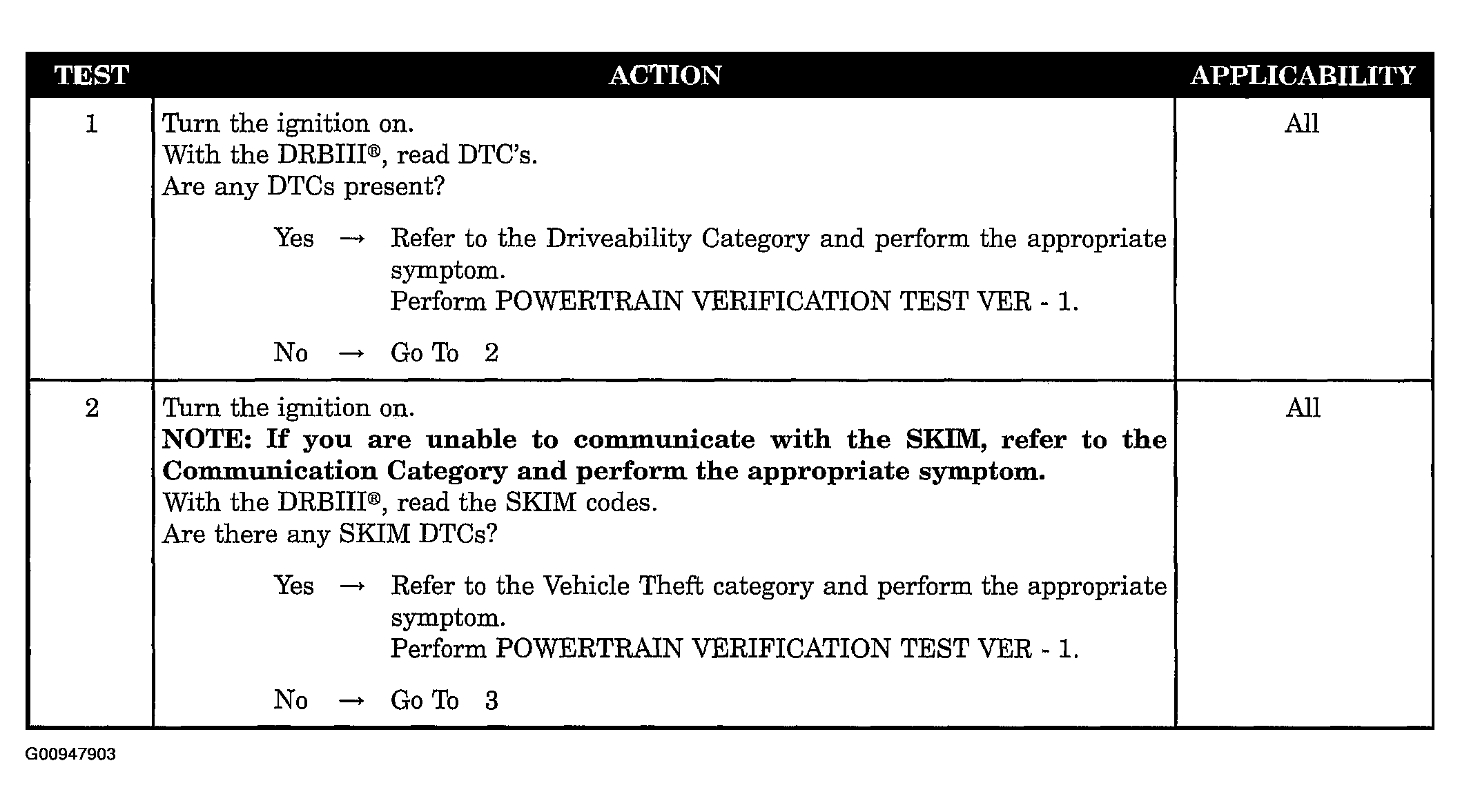

Fig 1: Diagnostic Chart - Start And Stall Condition (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

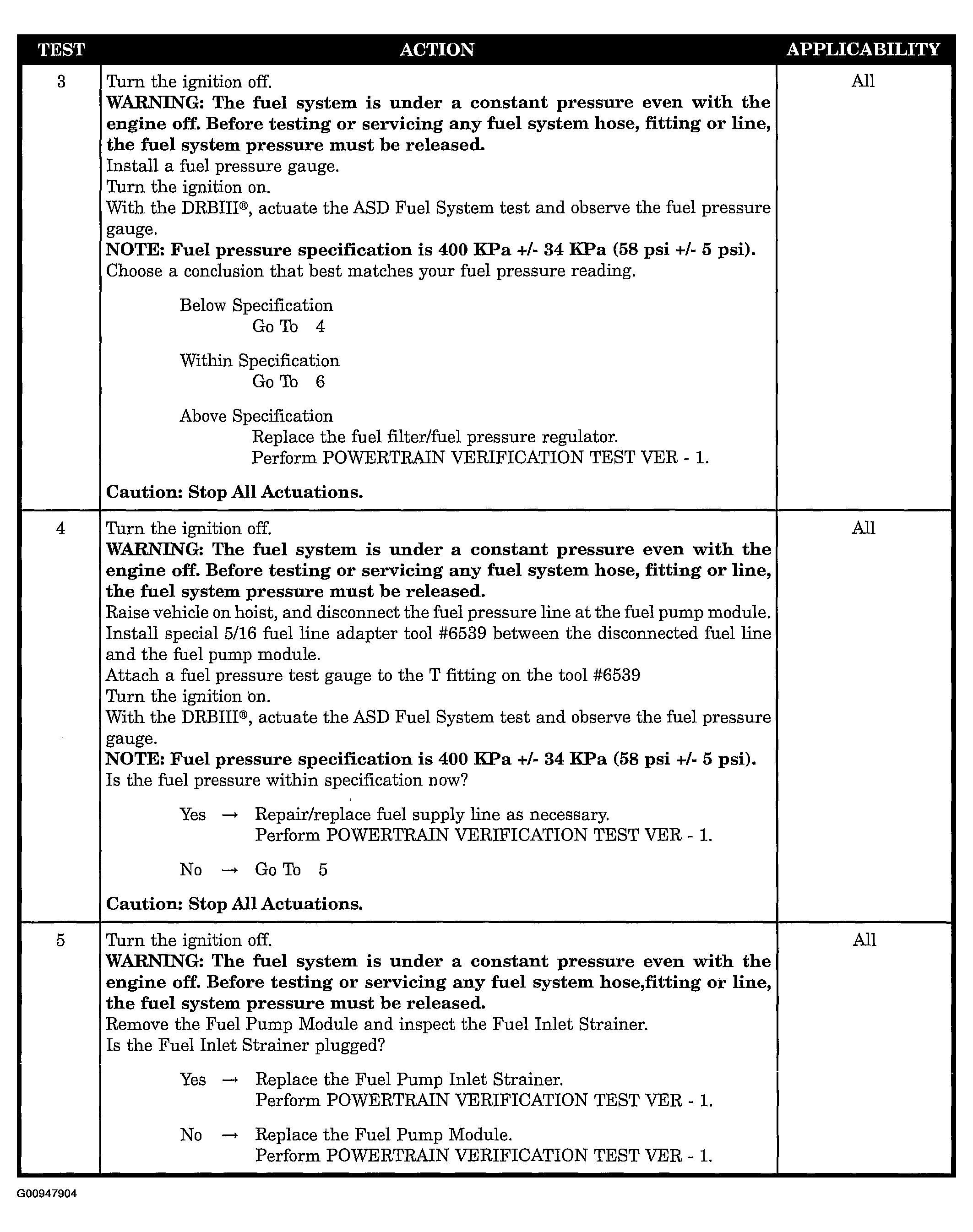

Fig 2: Diagnostic Chart - Start And Stall Condition (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

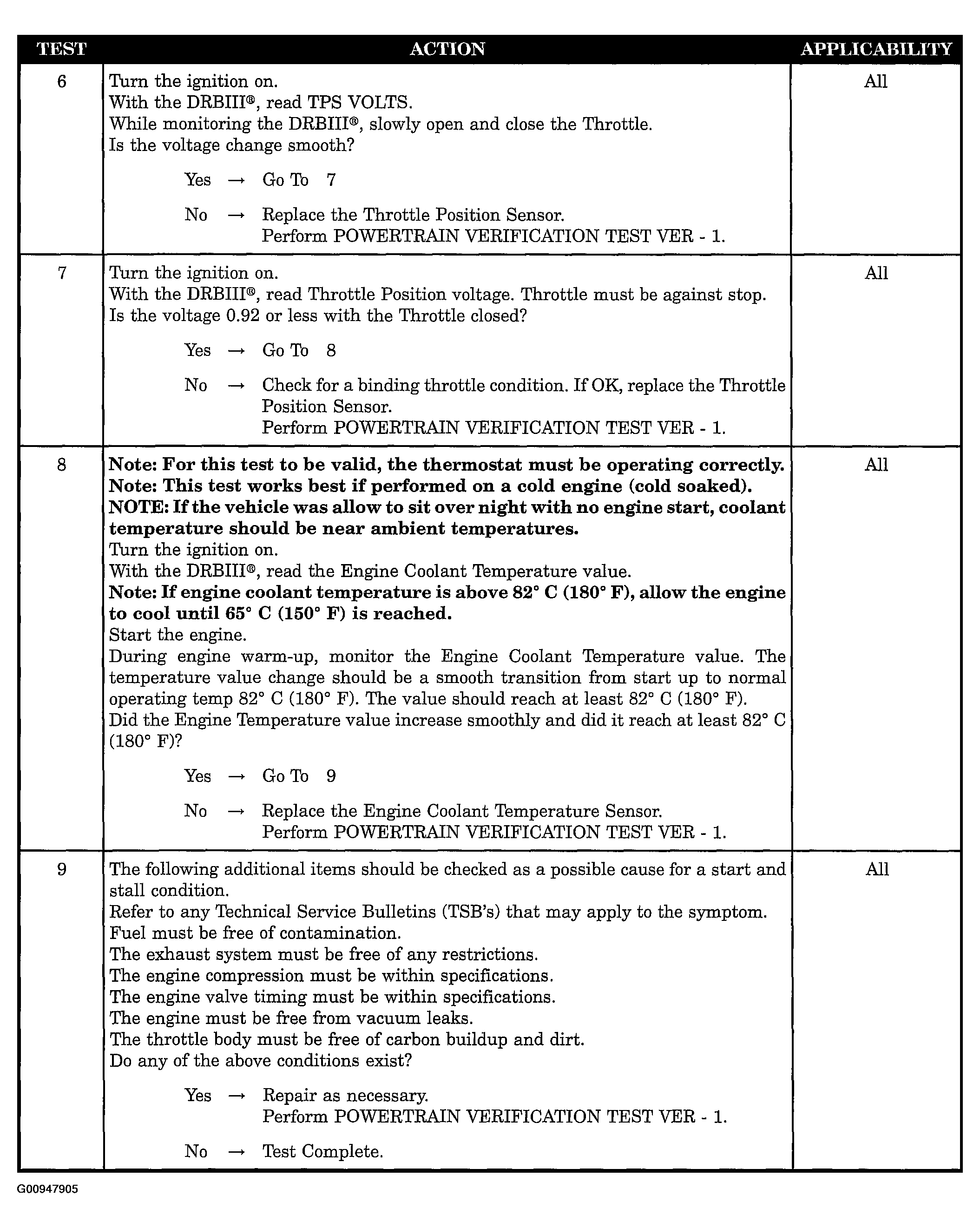

Fig 3: Diagnostic Chart - Start And Stall Condition (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
