Chrysler
›
2004
›
Pacifica AWD
›
Repair and Diagnosis
›
Engine Performance
›
Testing & Diagnosis
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Crankshaft Position Sensor Connector End View
Crankshaft Position Sensor Connector End View

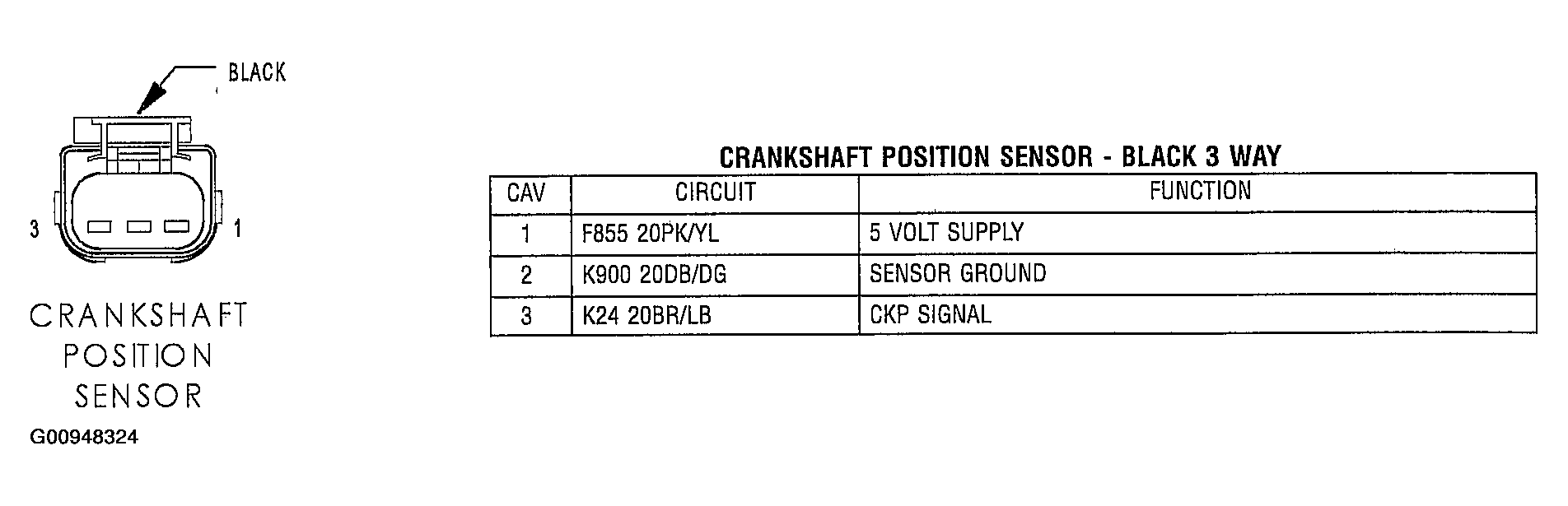

Fig 1: Identifying Crankshaft Position Sensor - Black 3 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
