Radiator Fan Relay Connector End View
Radiator Fan Relay Connector End View

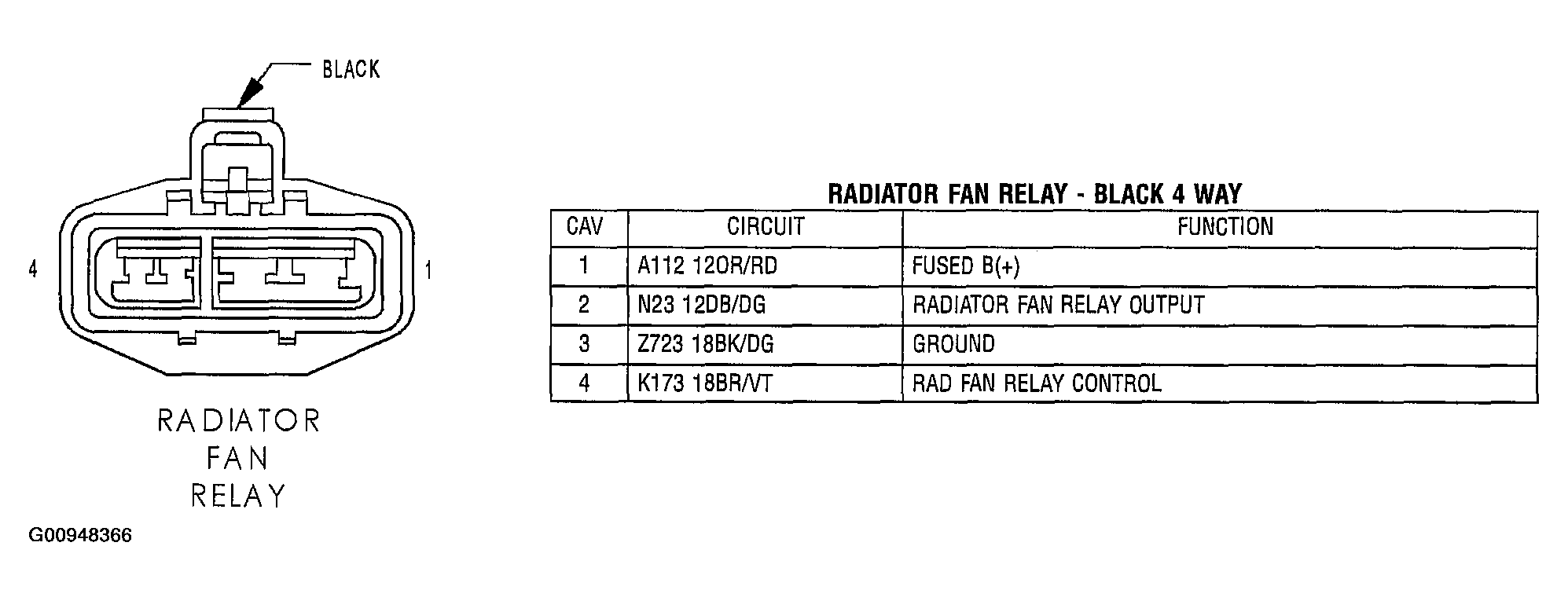

Fig 1: Identifying Radiator Fan Relay - Black 4 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
