Automatic Transmission Cooler: Transmission: Description

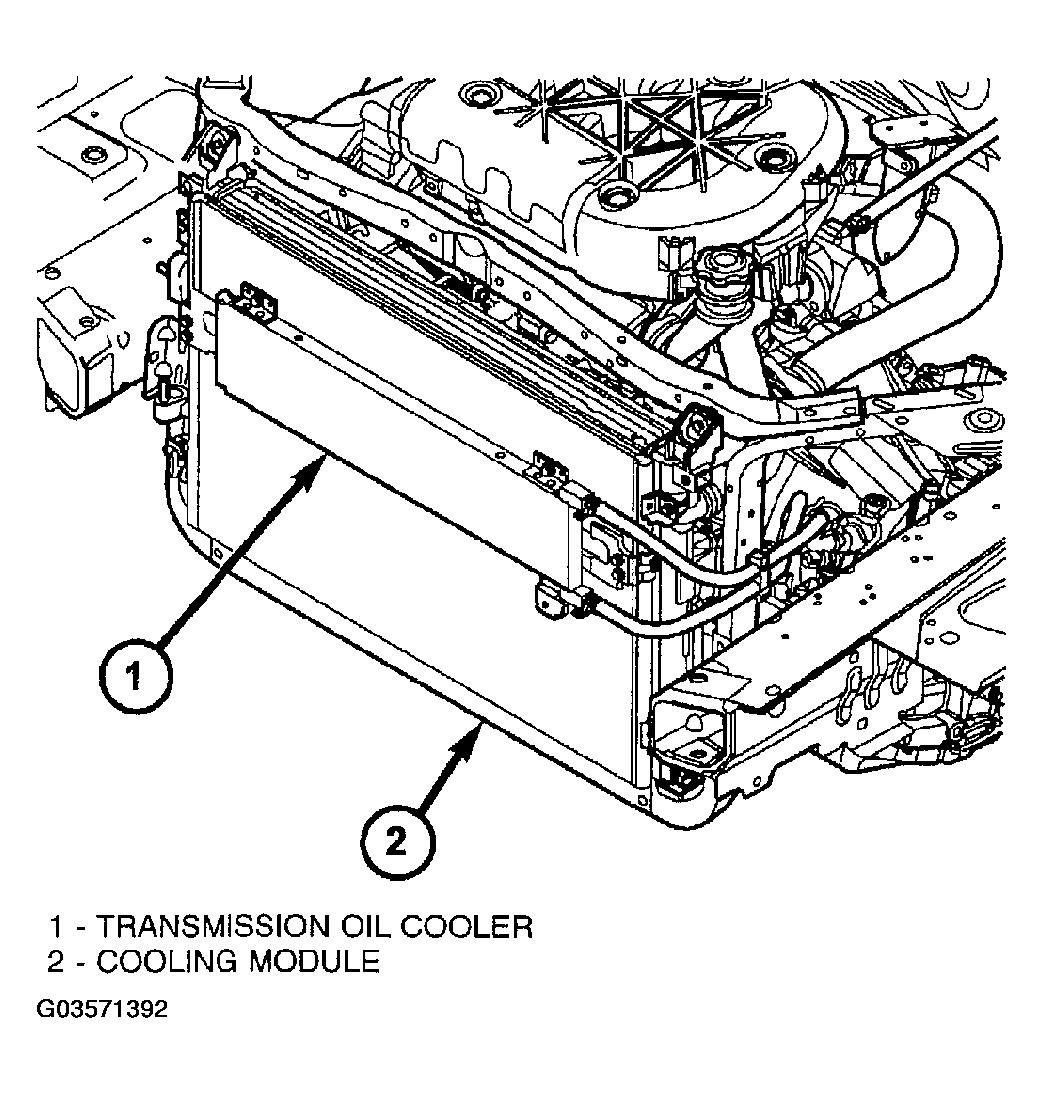

The transmission oil cooler is an oil-to-air type cooler that is mounted on the front of the radiator and in front of the of the A/C condenser. Use only approved transmission oil cooler hoses that are molded to fit the space available (Fig 1 ).
