Transmission Range Sensor: Installation

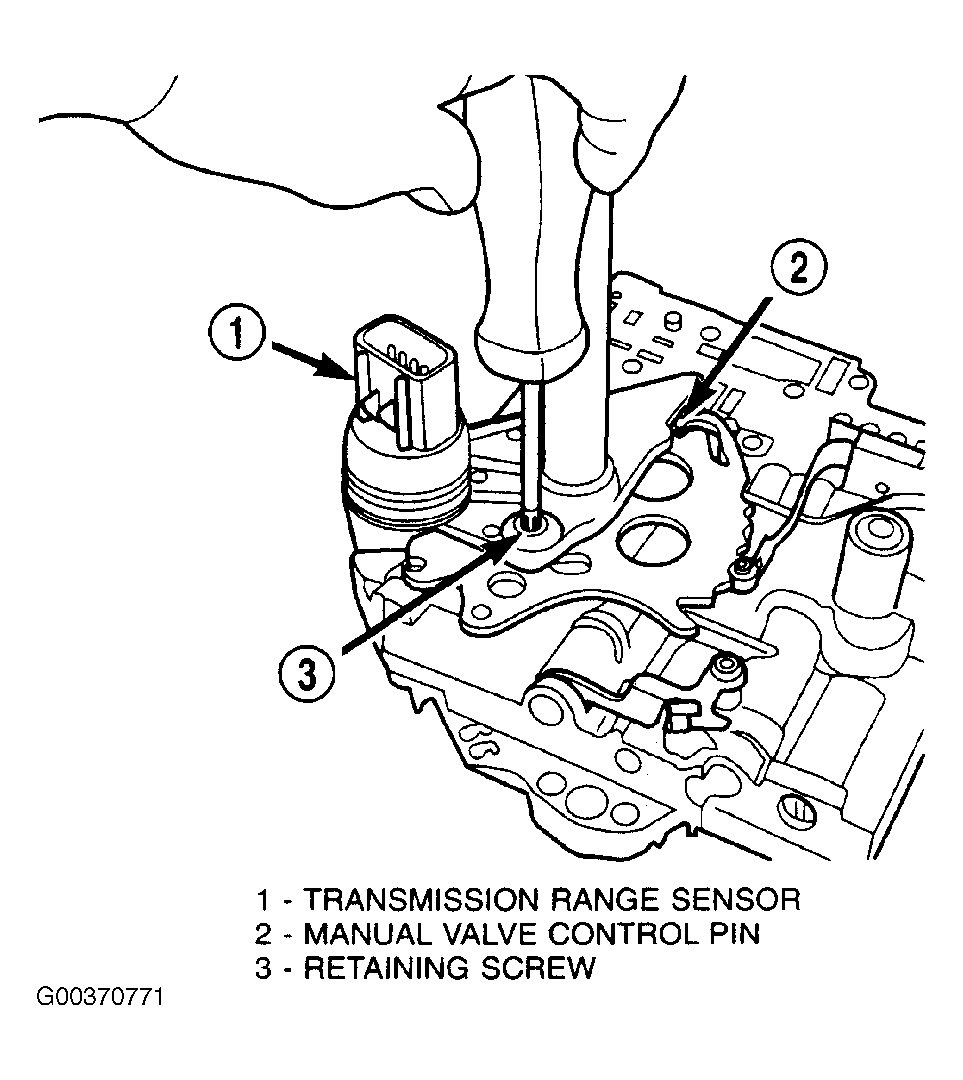

Install Transmission Range Sensor (TRS) to the valve body and torque retaining screw to 45 INCH Lbs. (5 N.m). See Figure .
Install valve body to transaxle. See VALVE BODY .
