Gear Shift Cable: Installation

Install gearshift cable to vehicle. Secure grommet.
Install gearshift cable to shift mechanism (Fig 3).

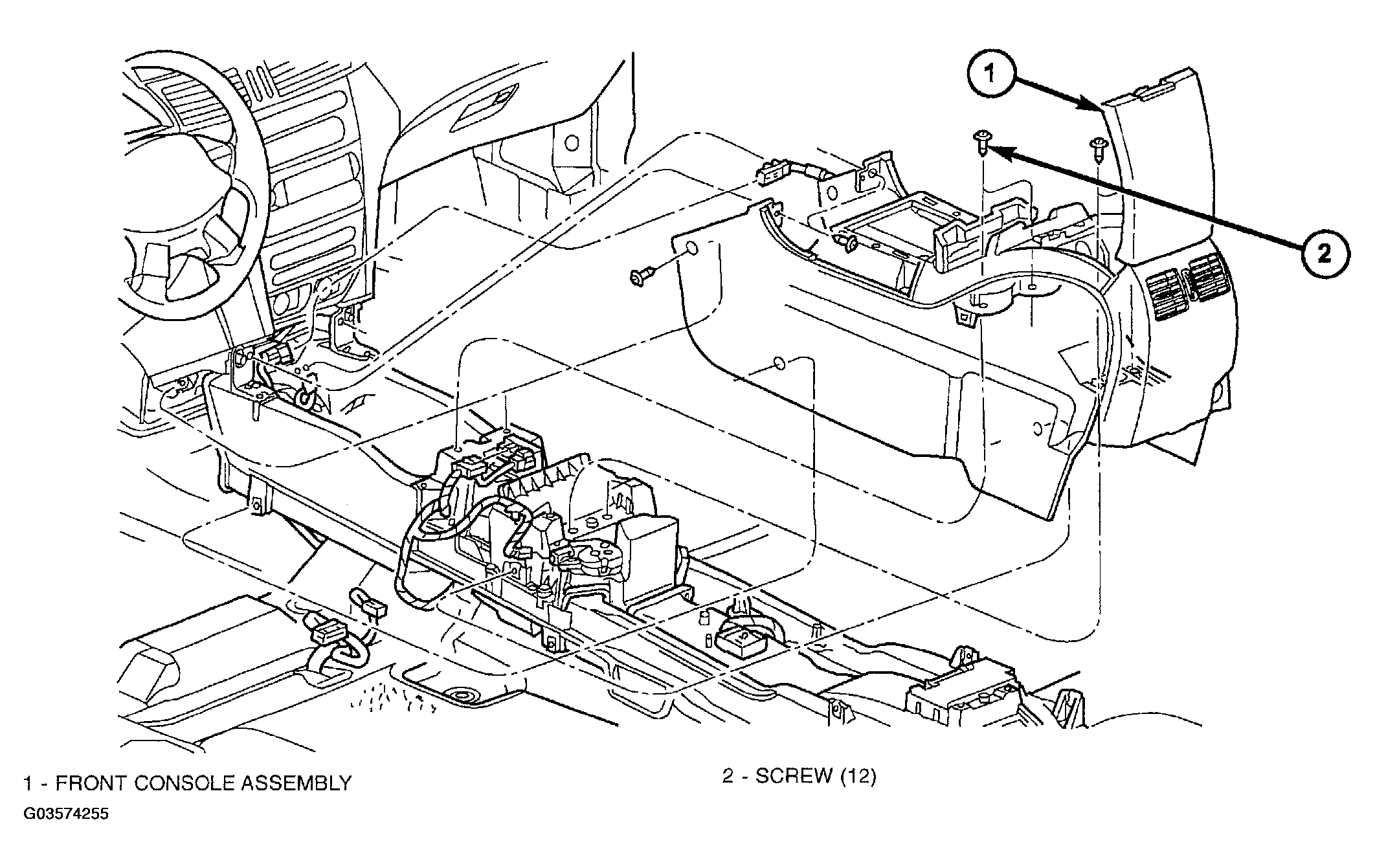

Fig 1: Removing Front Floor Console
Courtesy of DAIMLERCHRYSLER CORP.

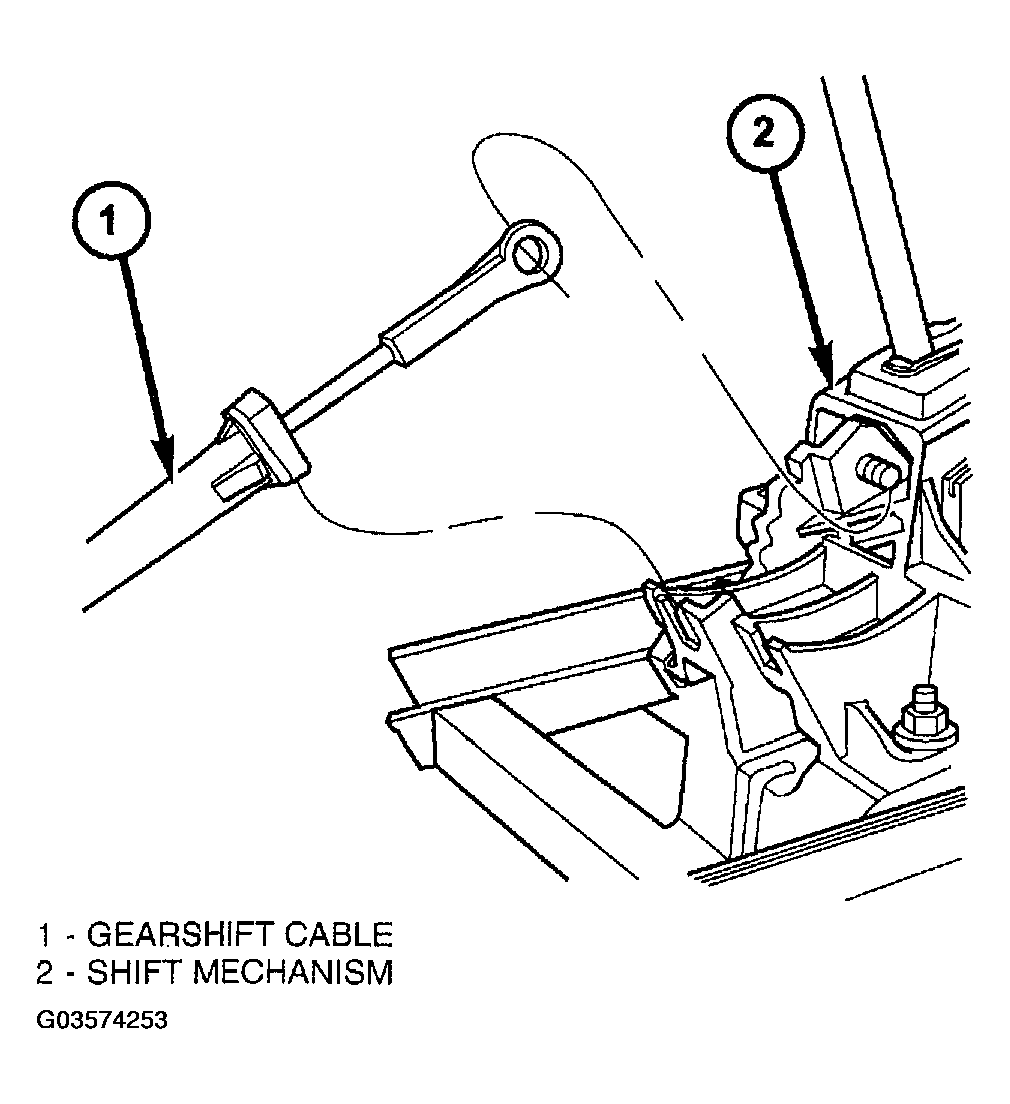

Fig 2: Identifying Gearshift Cable At Mechanism
Courtesy of DAIMLERCHRYSLER CORP.

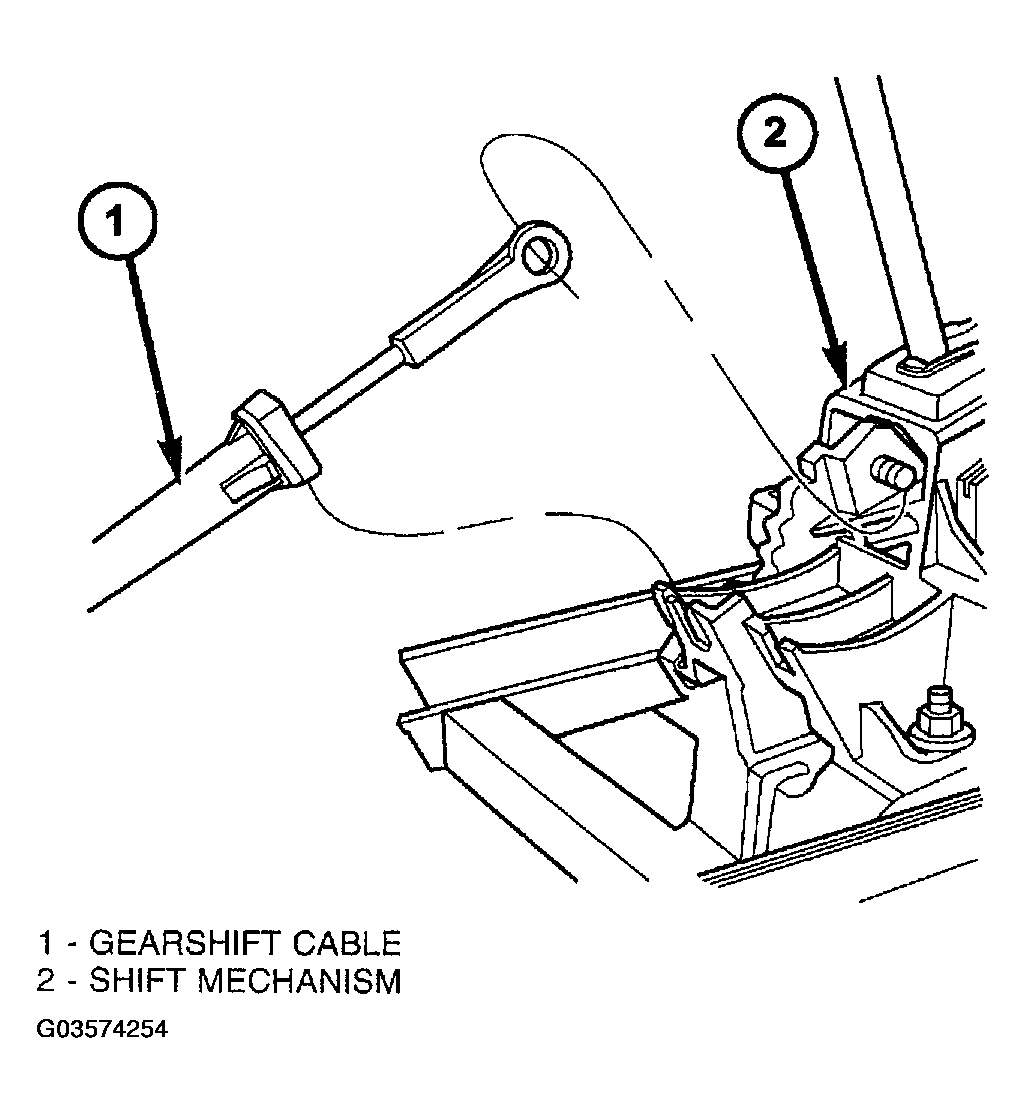

Fig 3: Installing Gearshift Cable At Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
Install center console assembly (Fig 4).

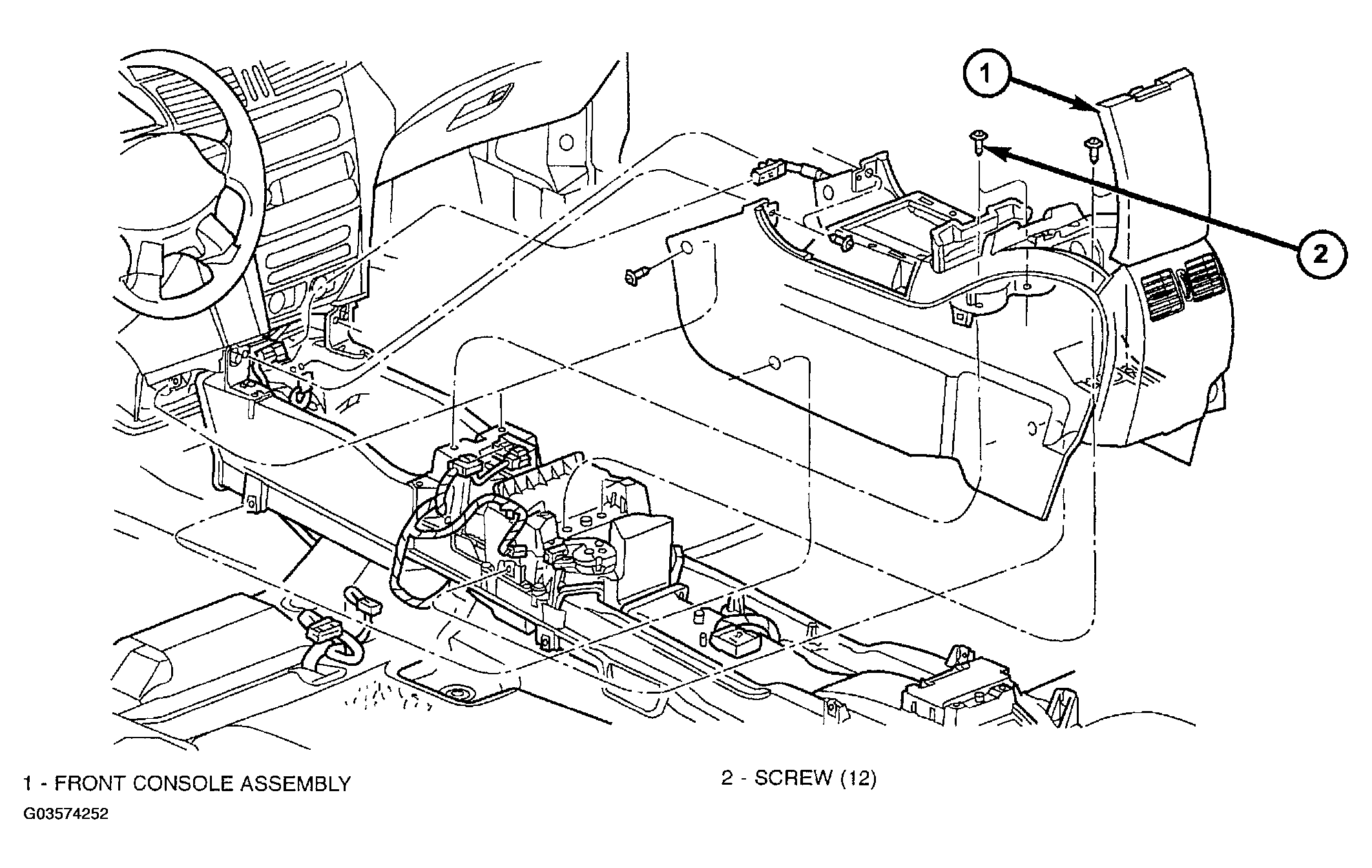

Fig 4: Installing Front Floor Console
Courtesy of DAIMLERCHRYSLER CORP.
Install PRNDL surround bezel (Fig 5).

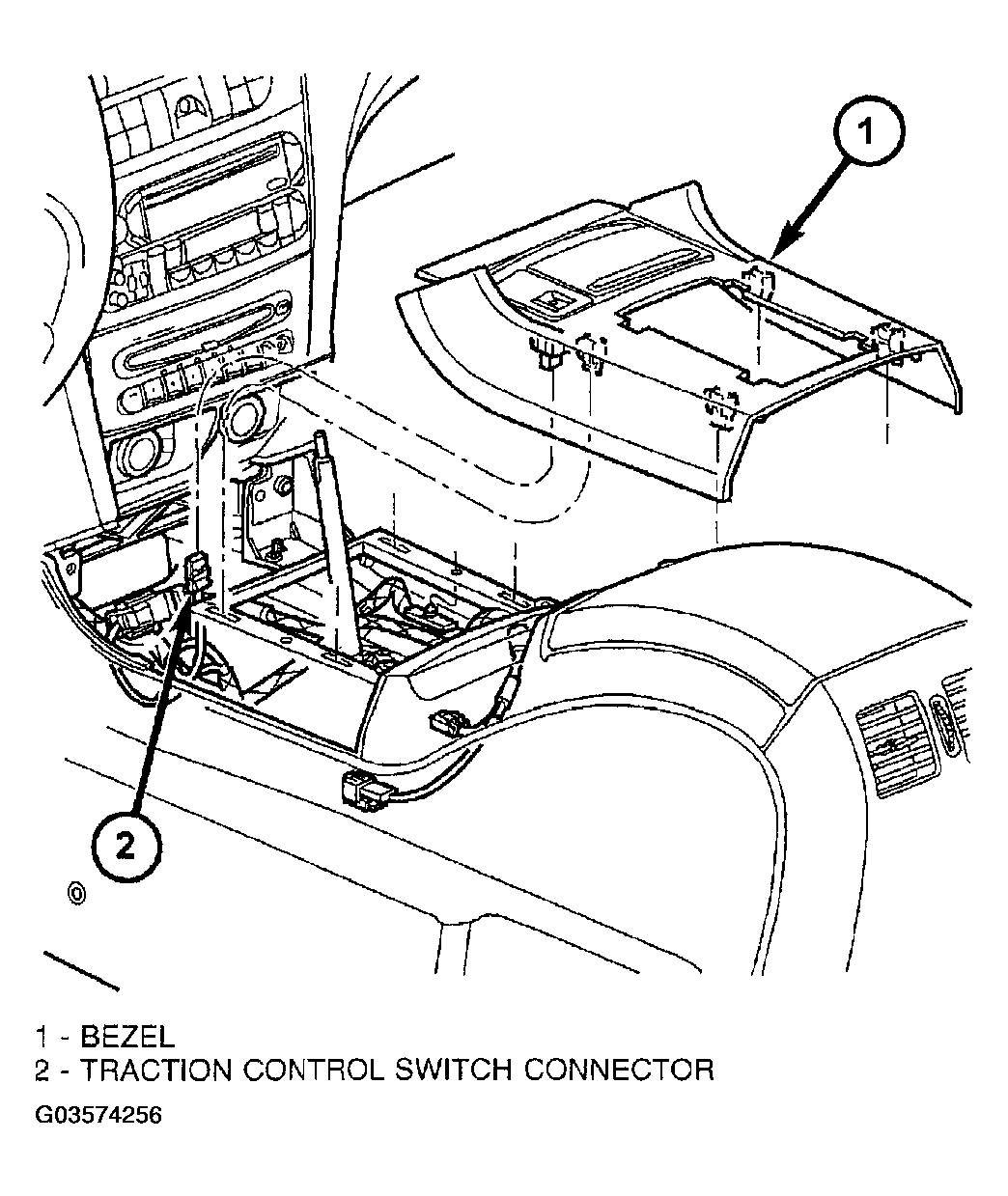

Fig 5: Installing PRNDL Surround Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Install gearshift bezel (Fig 6).

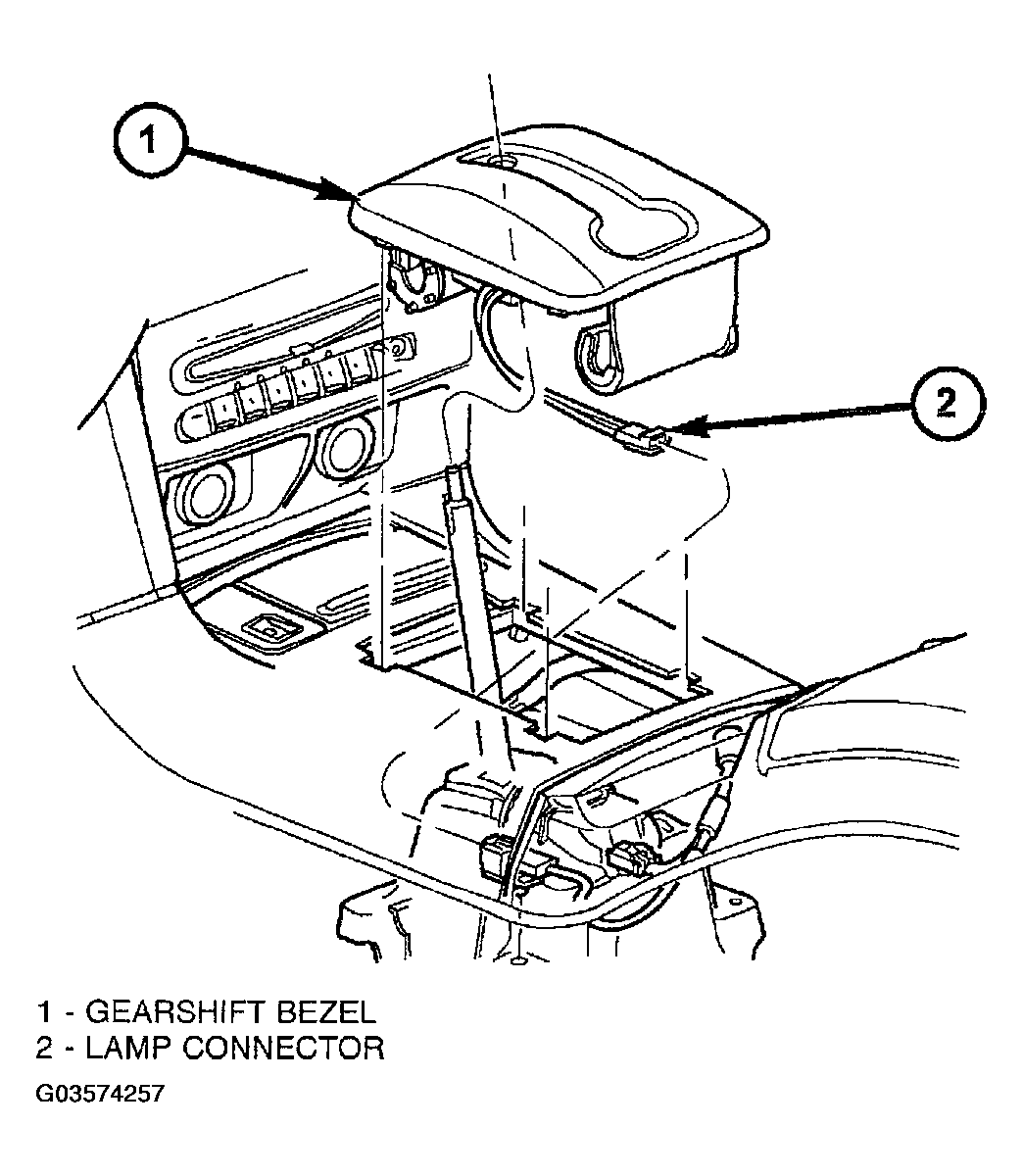

Fig 6: Installing Gearshift Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Install gearshift knob (Fig 7).

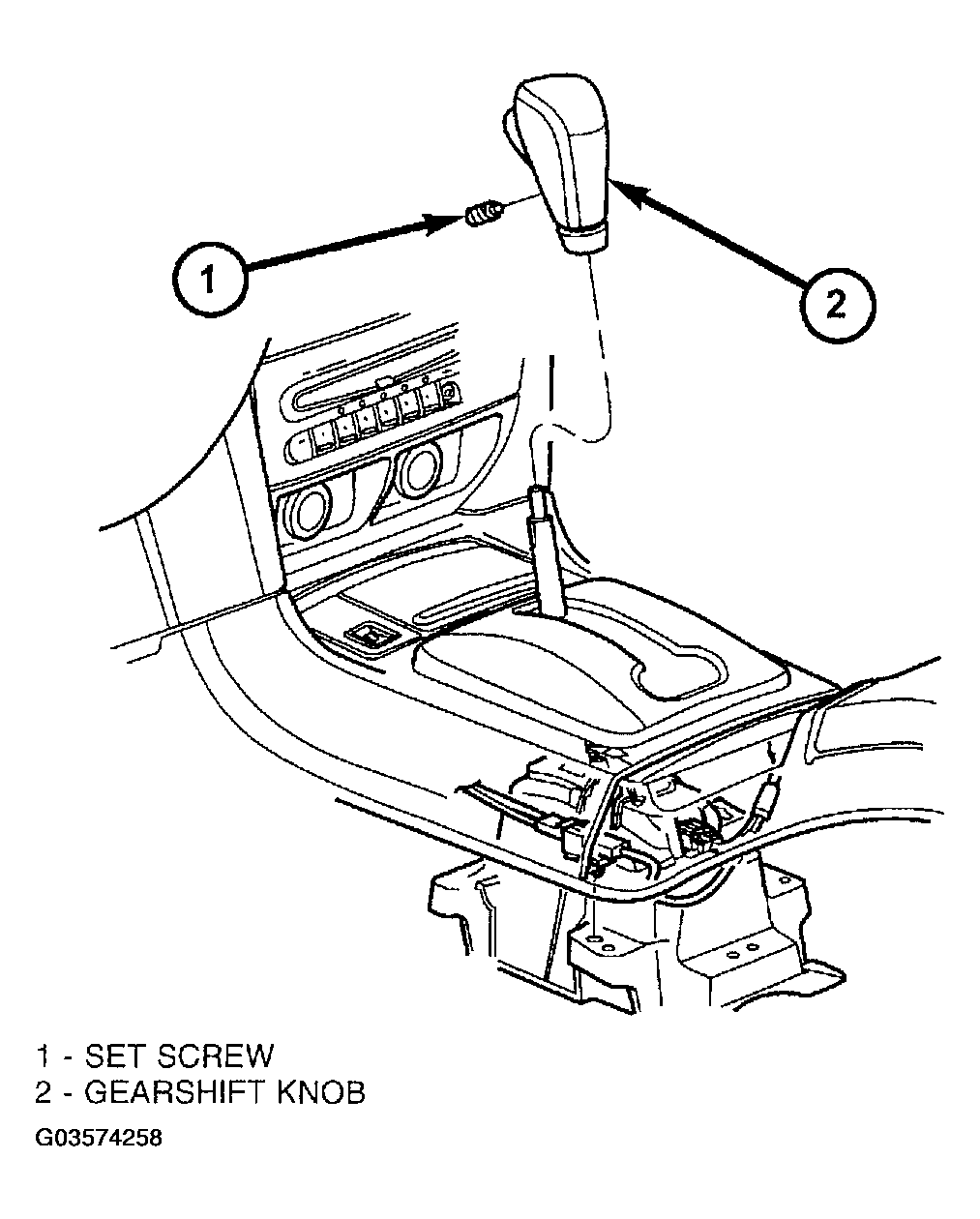

Fig 7: Installing Gearshift Knob
Courtesy of DAIMLERCHRYSLER CORP.

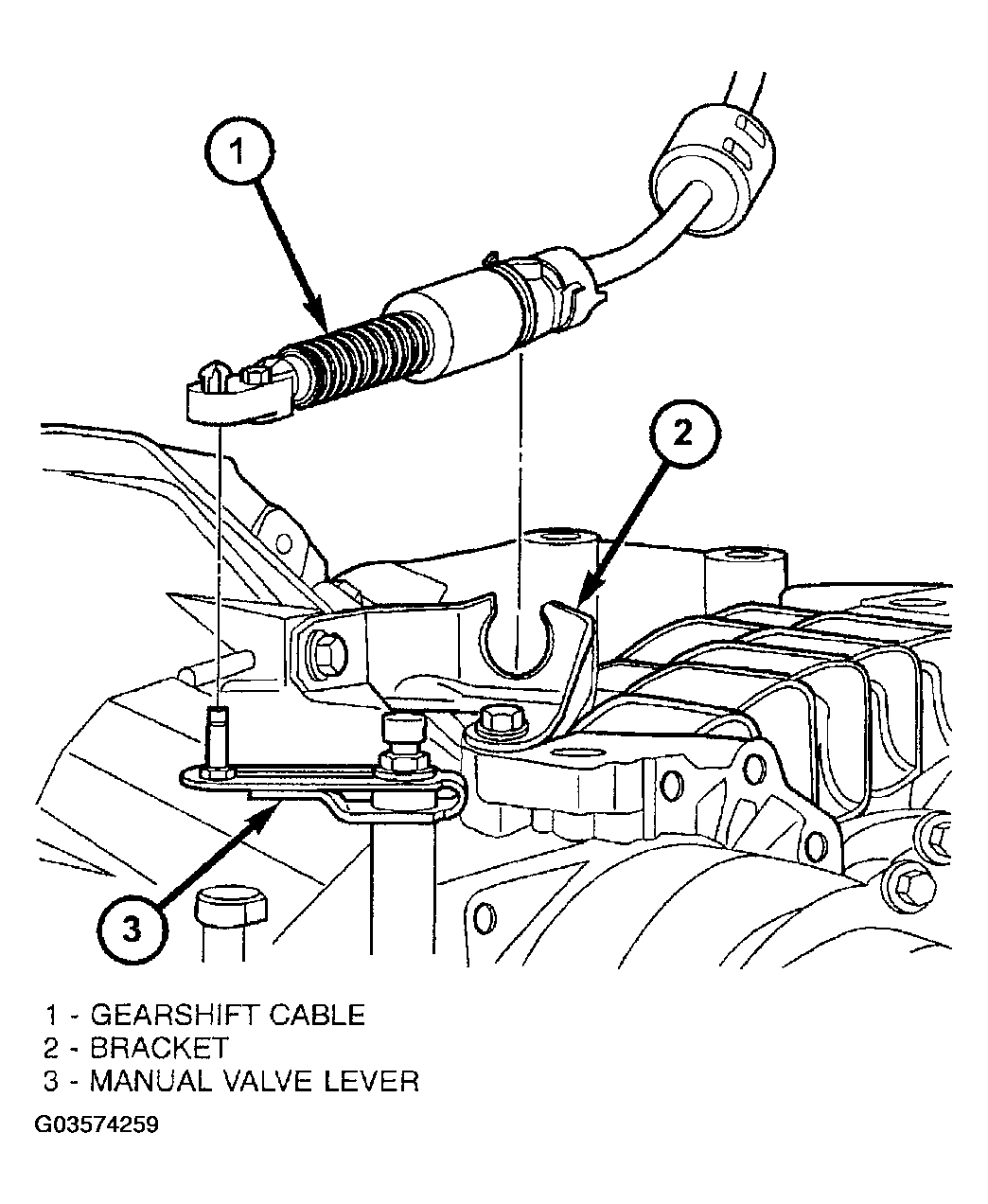

From underhood, install gearshift cable to transaxle bracket (Figure).
Install cable to transaxle manual valve lever (Figure).
Adjust gearshift cable. (Refer to ADJUSTMENTS )
Connect battery negative cable.
