Shift Interlock Cable: Removal

Disconnect battery negative cable.
Remove instrument panel lower silencer panel.
Remove inflatable knee blocker (Fig 1).

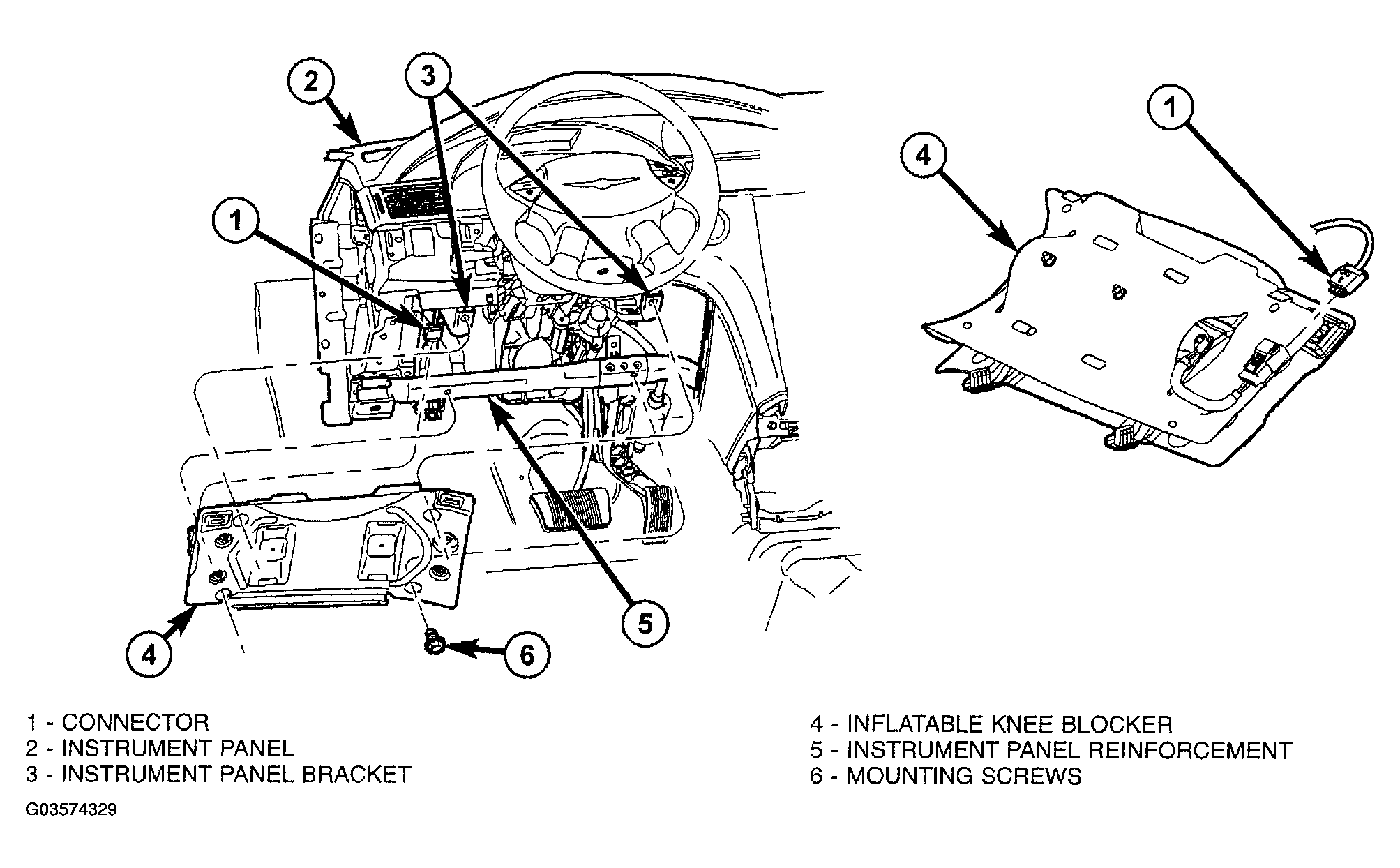

Fig 1: Identifying Inflatable Knee Bolster
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect shift interlock cable connector (Fig 2).

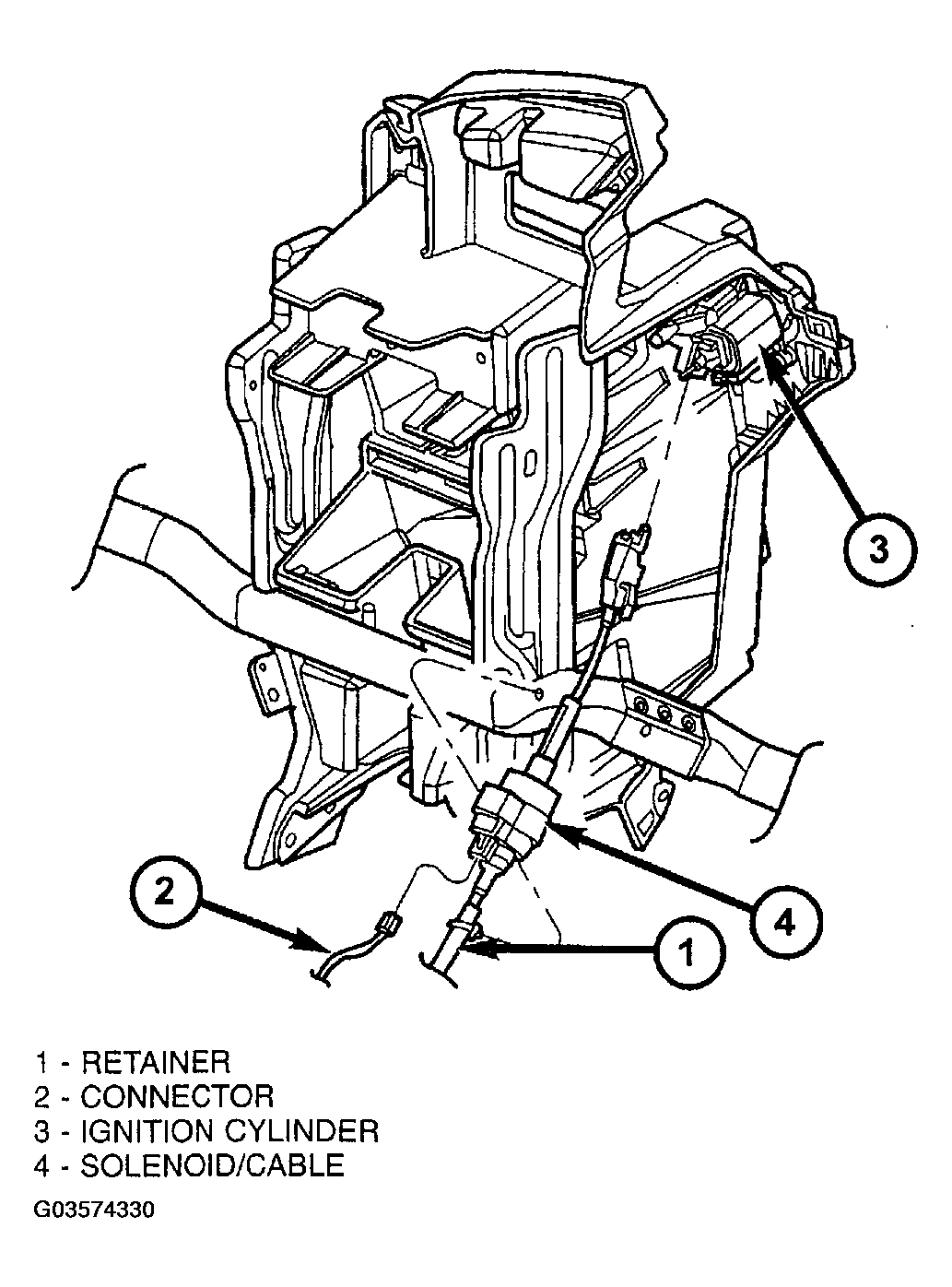

Fig 2: Disconnecting Shift Interlock Cable Connector
Courtesy of DAIMLERCHRYSLER CORP.
Place ignition key in the ACC position (Fig 3).

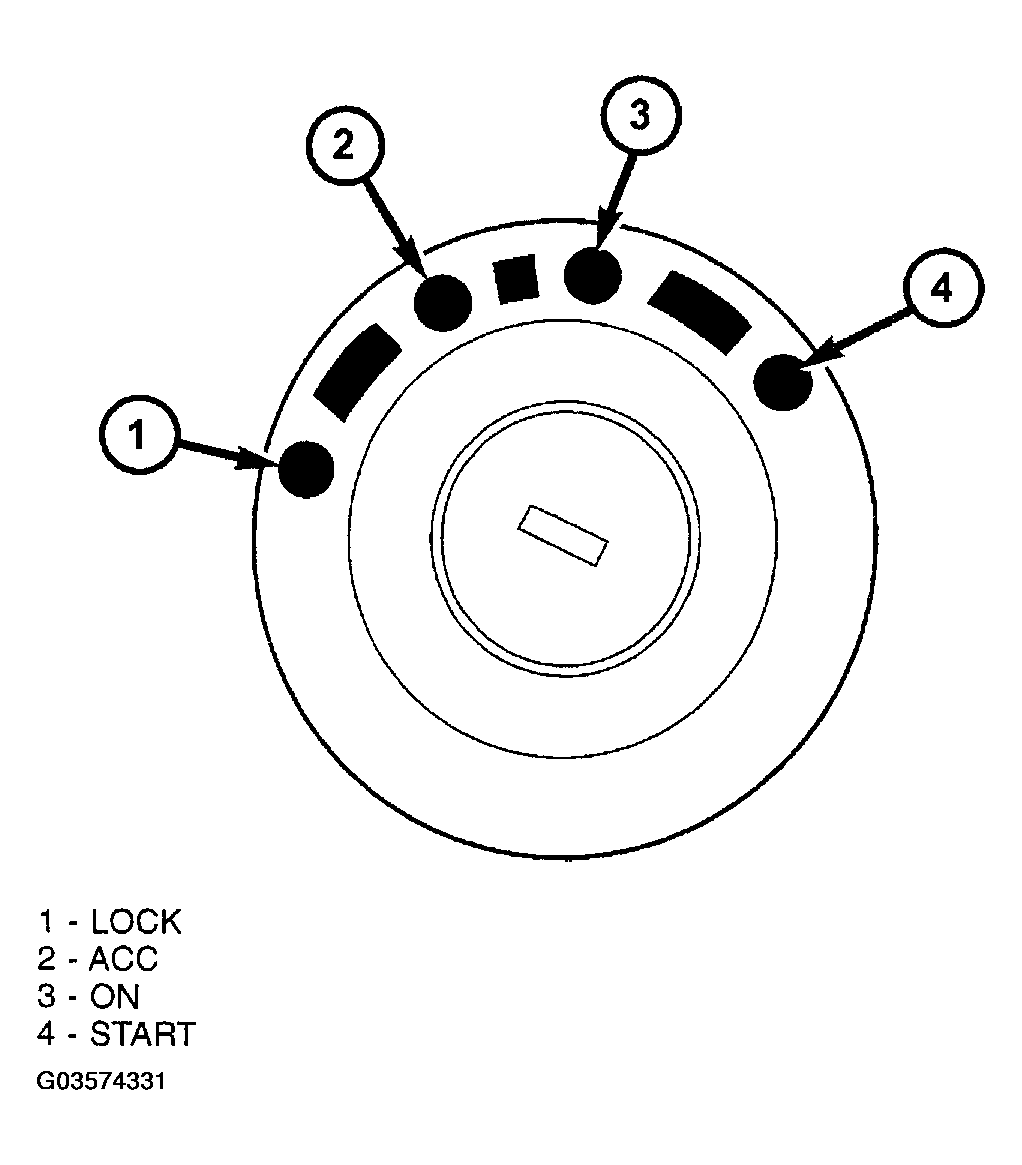

Fig 3: Identifying Ignition Key/Switch Positions
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect shift interlock cable from ignition cylinder (Fig 4).

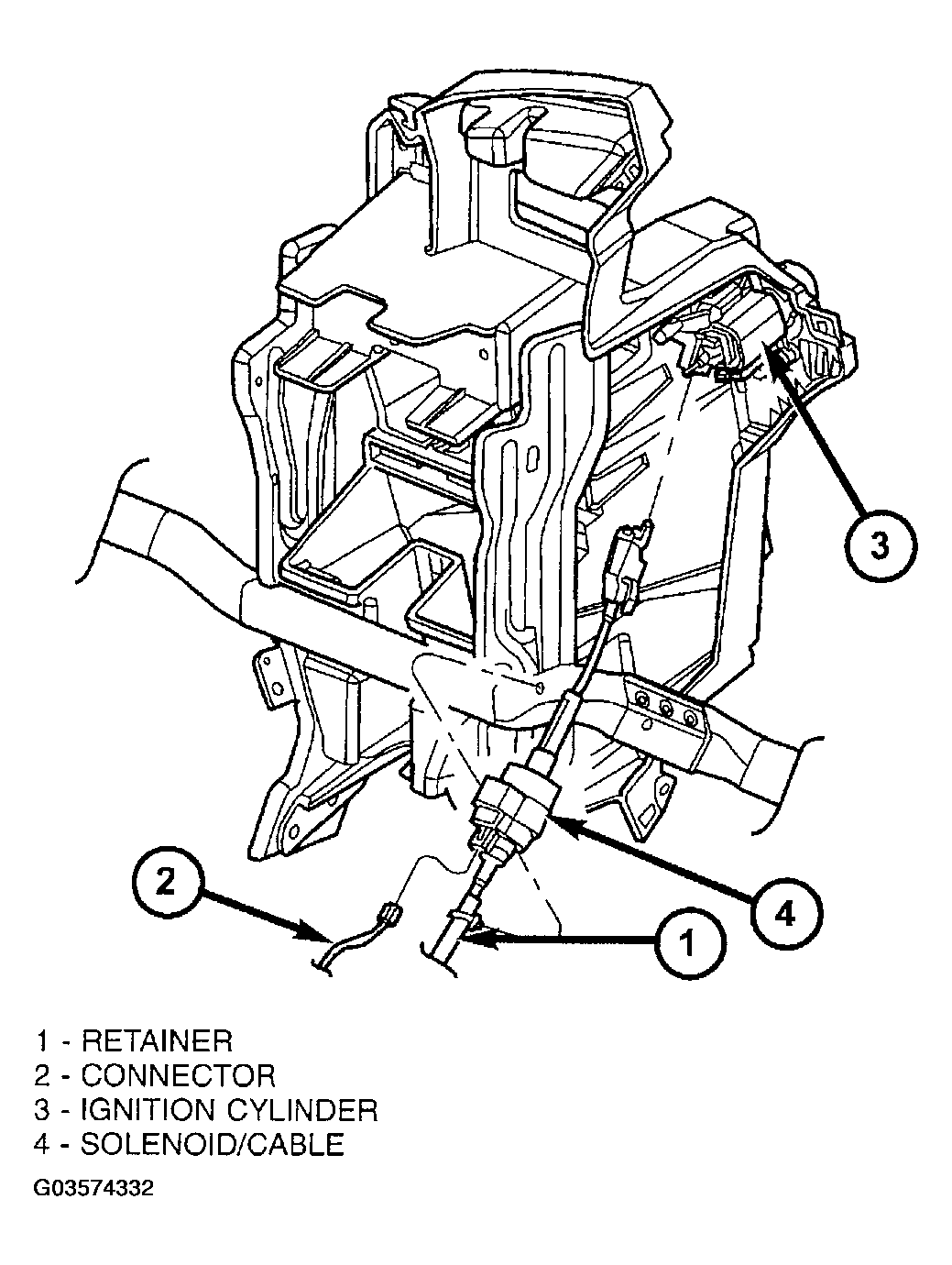

Fig 4: Disconnecting Shift Interlock Cable From Ignition Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
Remove gearshift knob (Fig 5).

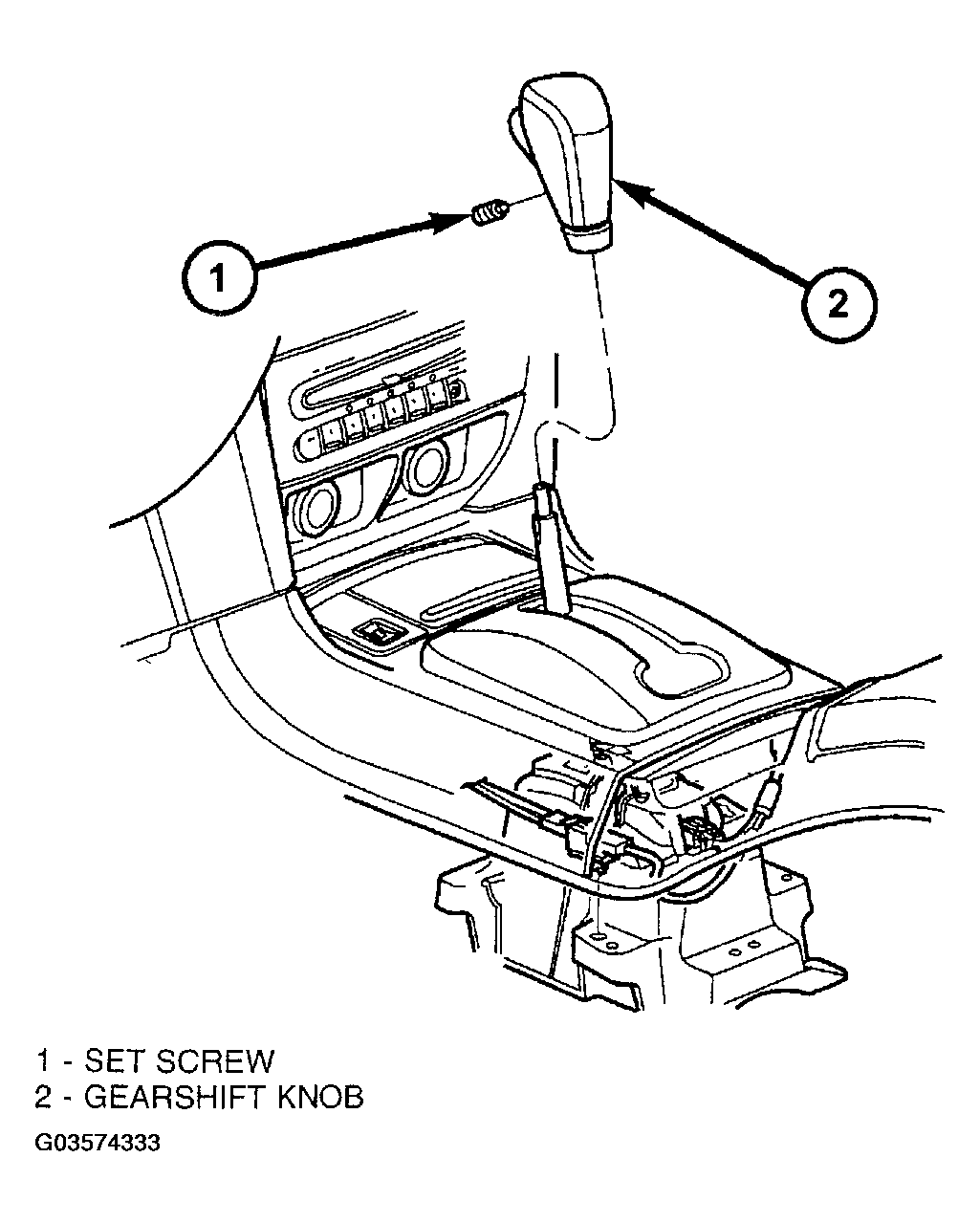

Fig 5: Removing Gearshift Knob
Courtesy of DAIMLERCHRYSLER CORP.
Remove gearshift bezel (Fig 6).

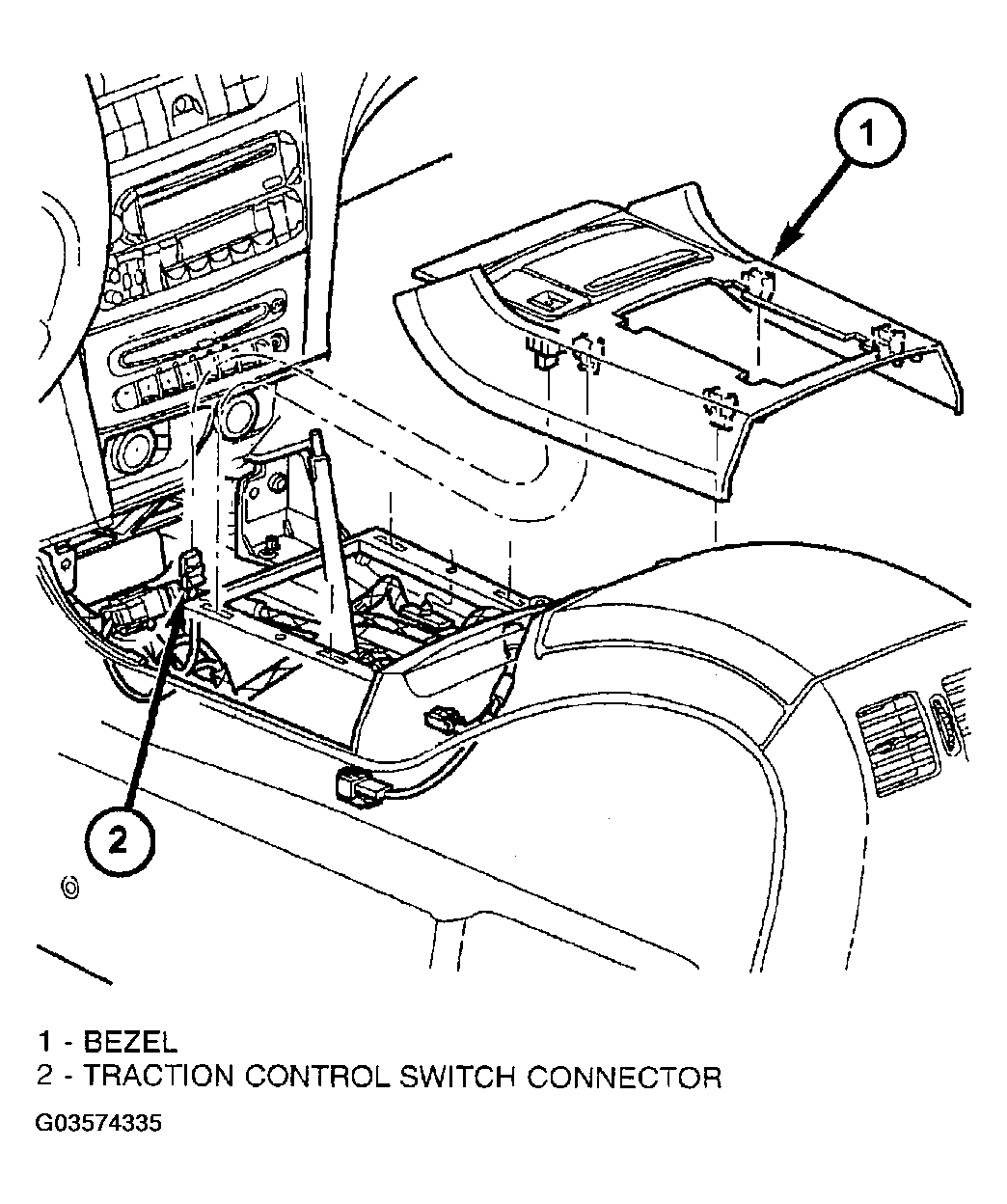

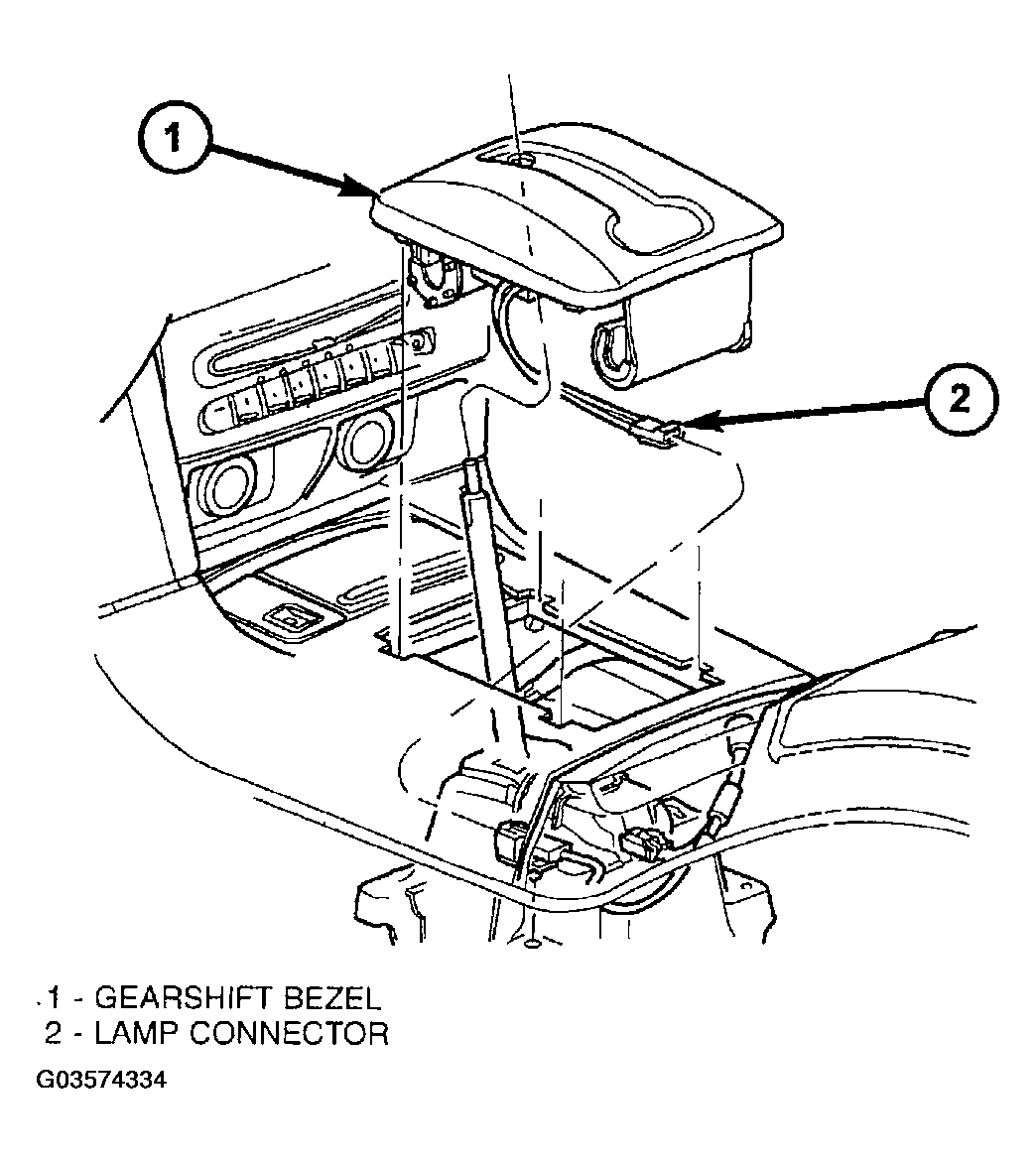

Fig 6: Removing Gearshift Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Remove PRNDL surround bezel (Fig 7).

Fig 7: Removing PRNDL Surround Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Remove center console assembly (Fig 8).

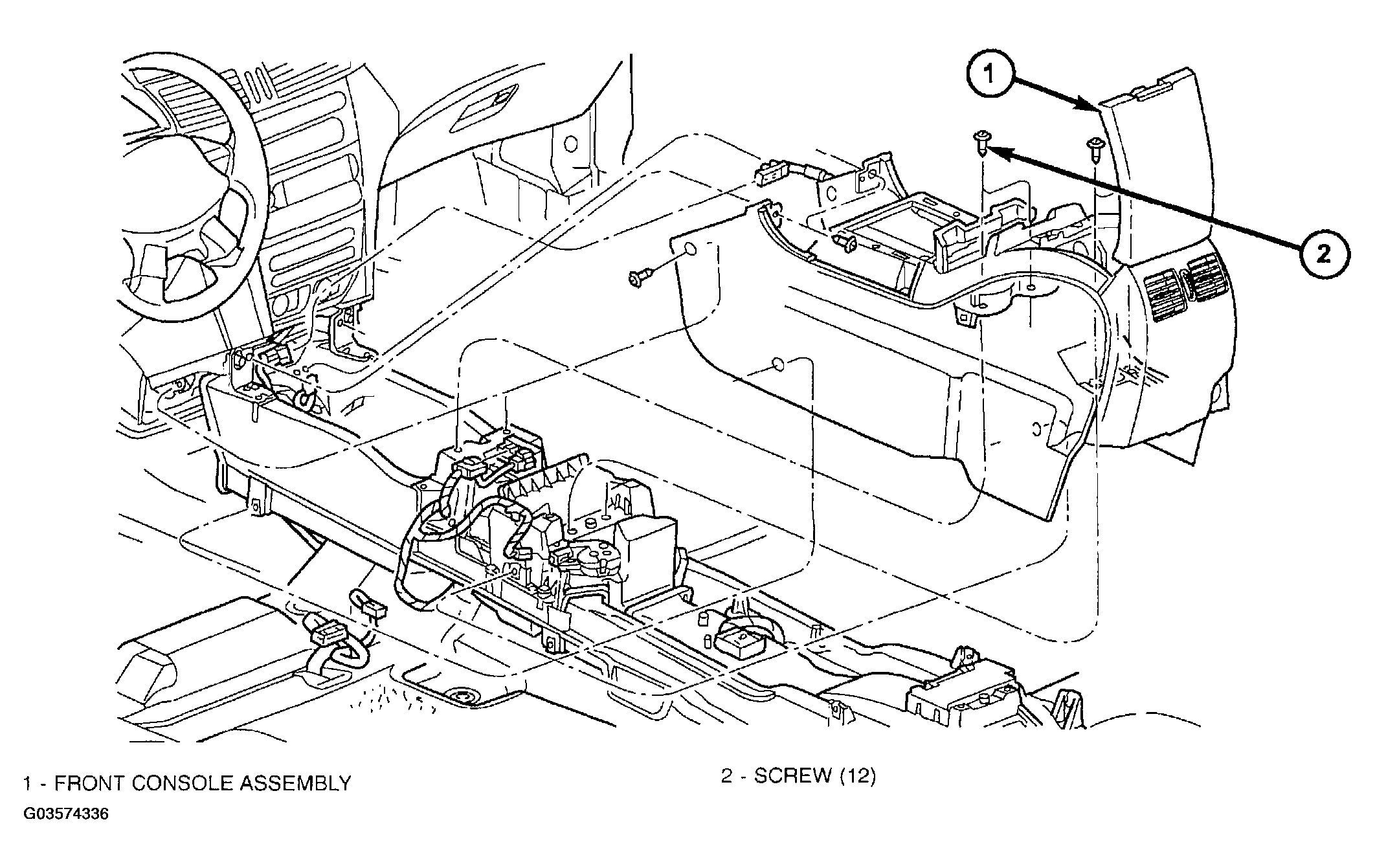

Fig 8: Removing Front Floor Console
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect shift interlock cable from shift mechanism as shown in (Fig 9).

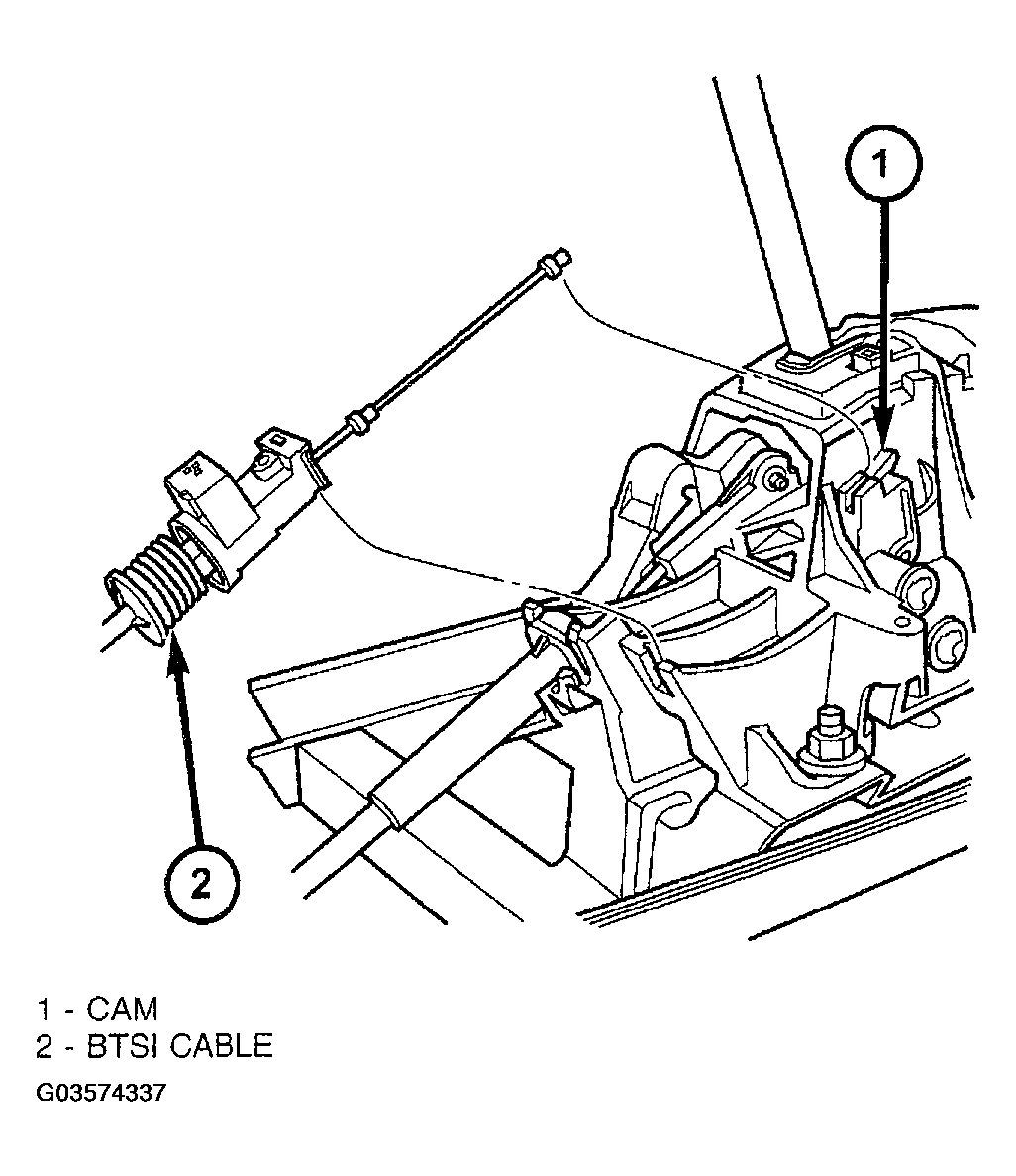

Fig 9: Identifying BTSI Cable At Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
