Shift Mechanism: Installation

Install shift mechanism to lower console (Fig 1). Install and torque four (4) mechanism-to-console base nuts to 12 N.m (105 in. lbs.).
Install gearshift cable to mechanism (Fig 2).
Install shift interlock cable to mechanism (Fig 3).
Adjust shift interlock cable. (Refer to ADJUSTMENTS )

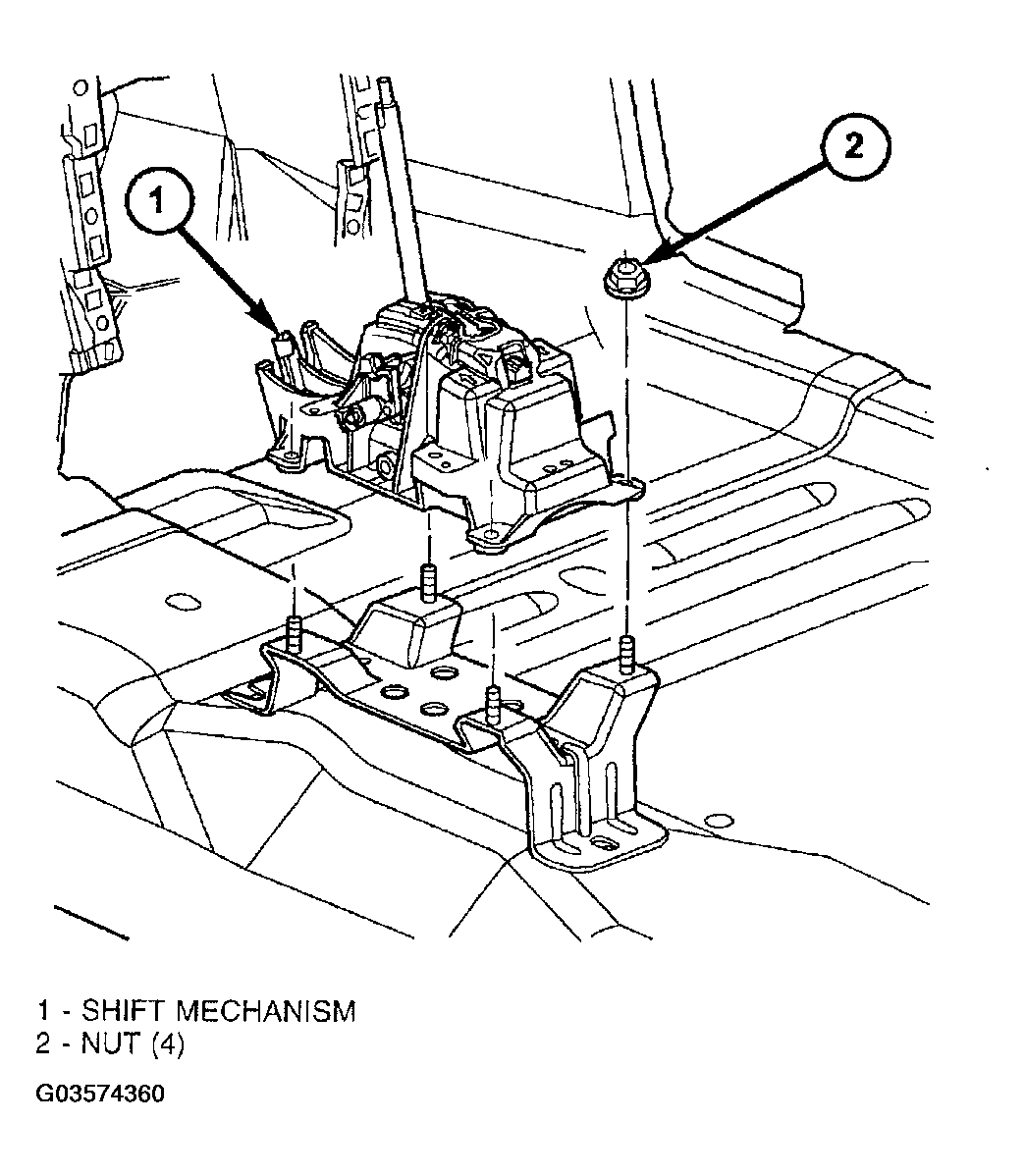

Fig 1: Installing Gearshift Mechanism
Courtesy of DAIMLERCHRYSLER CORP.

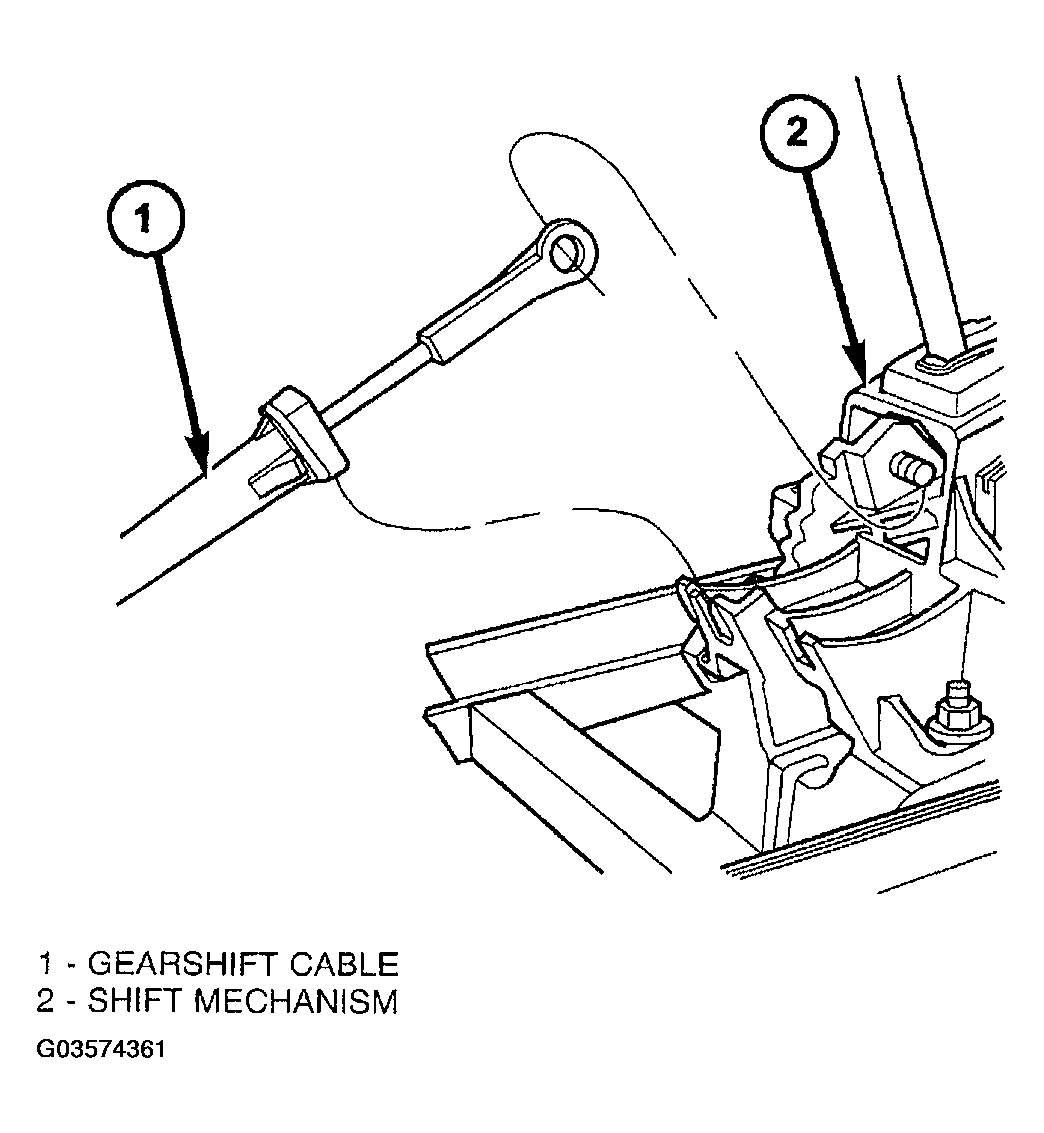

Fig 2: Installing Gearshift Cable At Mechanism
Courtesy of DAIMLERCHRYSLER CORP.

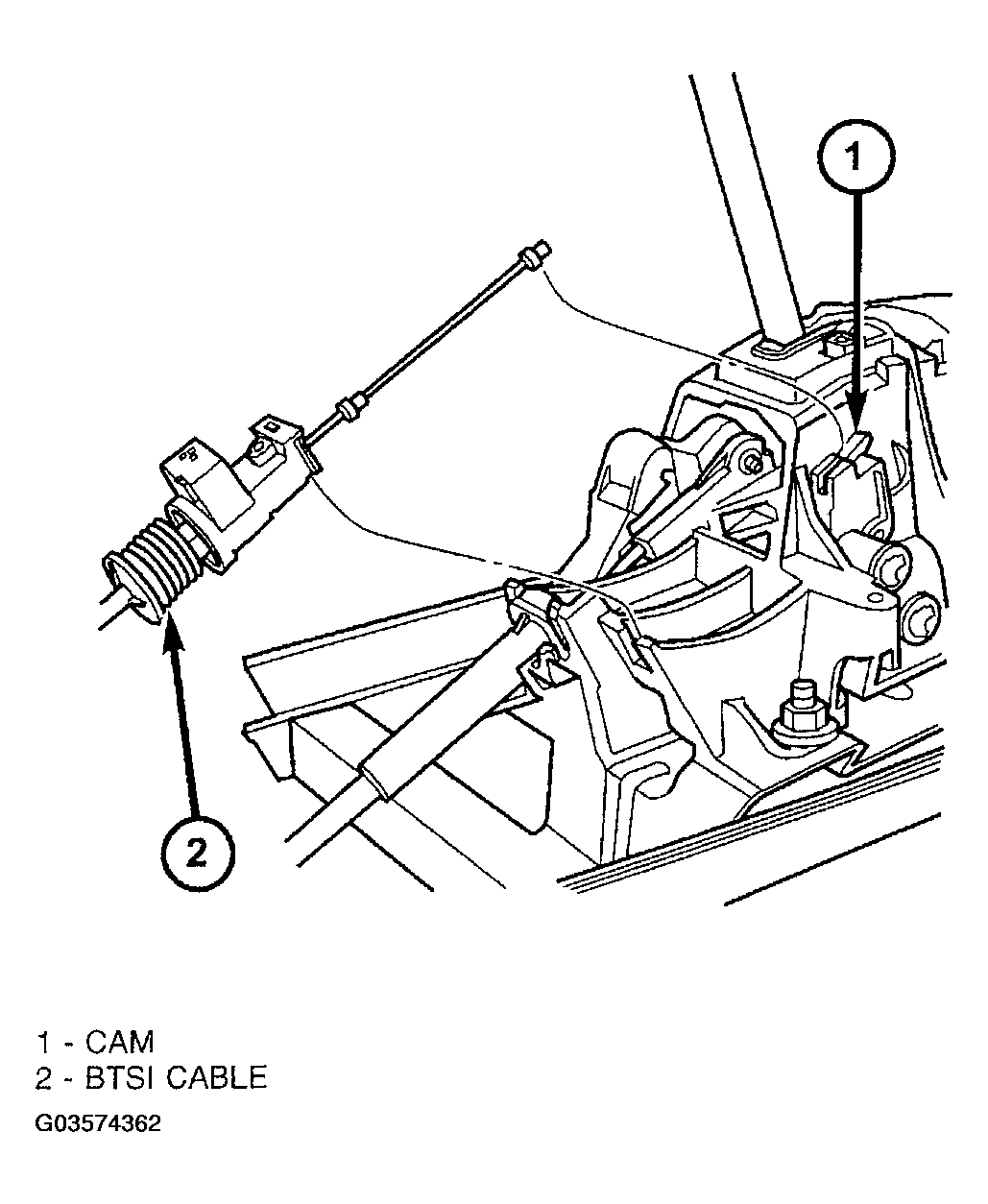

Fig 3: Installing BTSI Cable At Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
Install center console assembly (Fig 4).

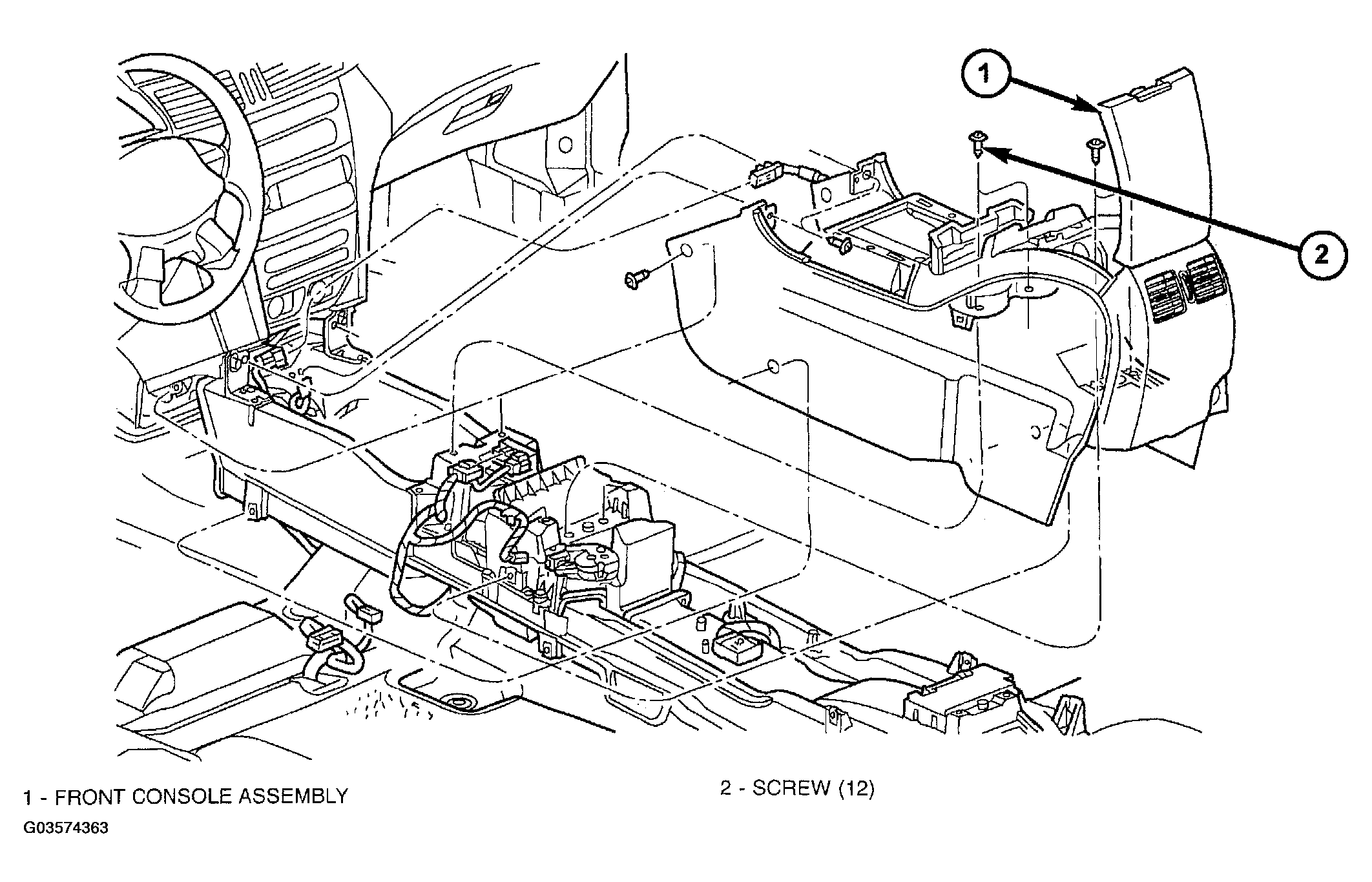

Fig 4: Installing Front Floor Console
Courtesy of DAIMLERCHRYSLER CORP.
Install PRNDL surround bezel (Fig 5).

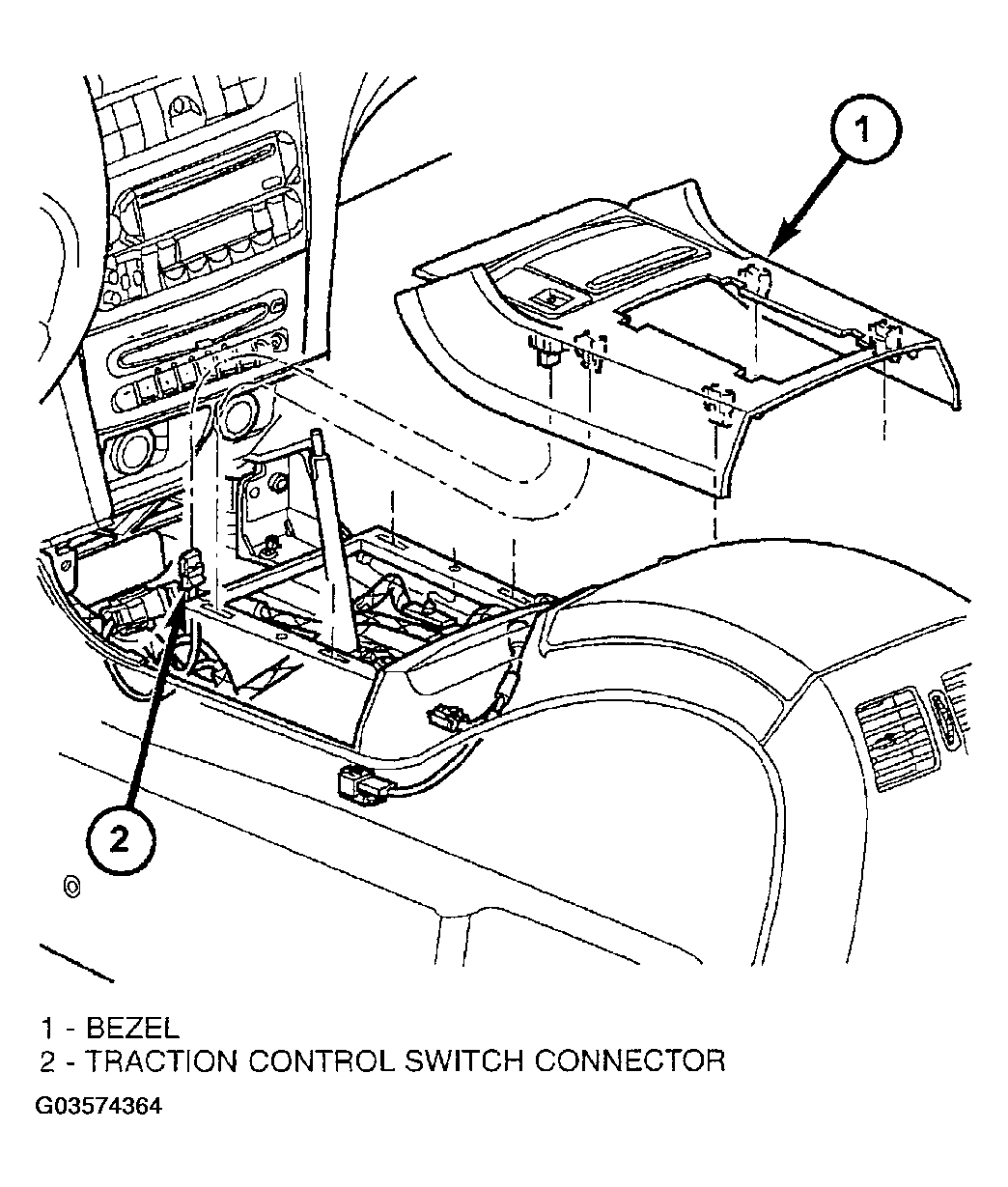

Fig 5: Installing PRNDL Surround Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Install gearshift bezel (Fig 6).

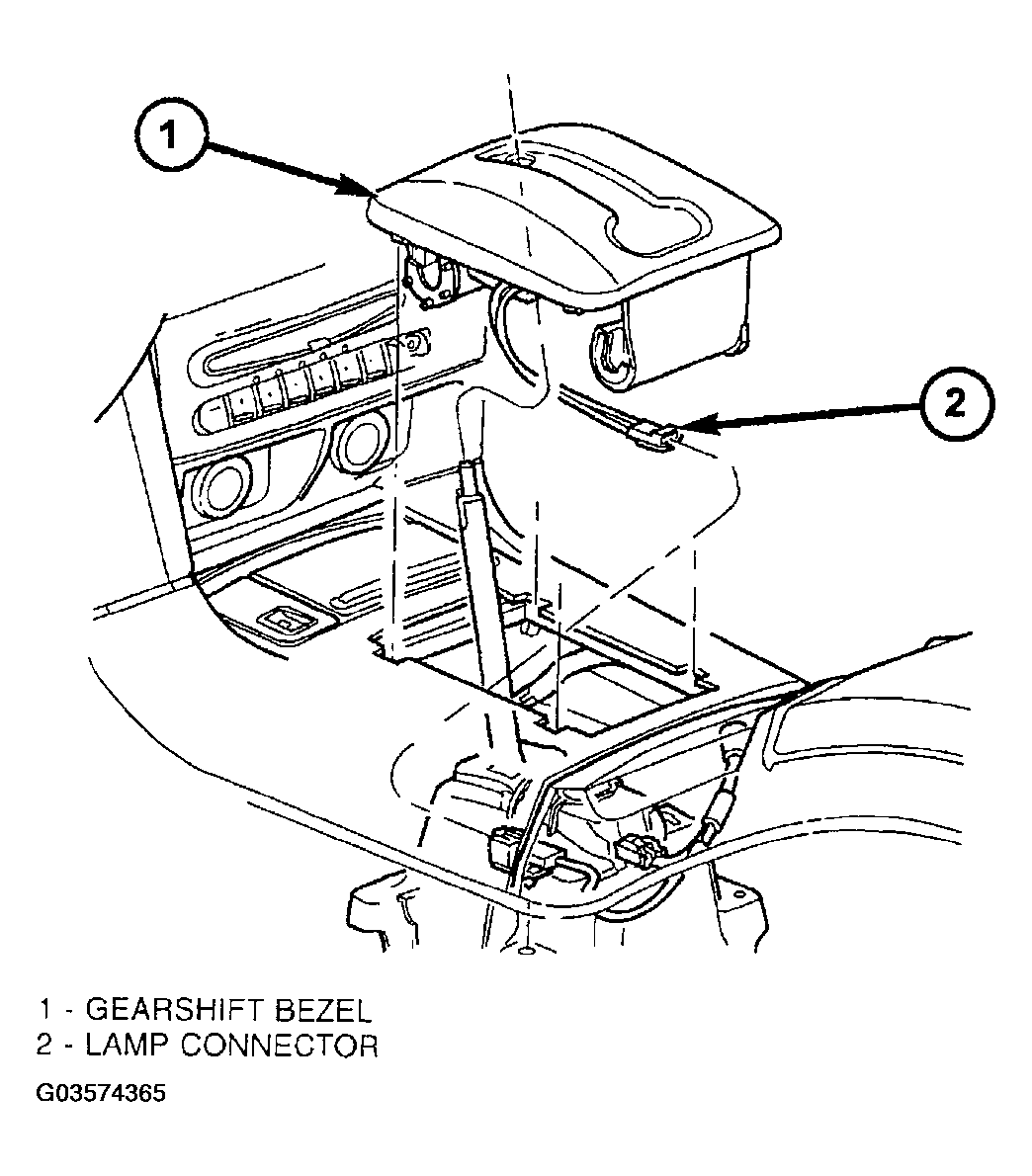

Fig 6: Installing Gearshift Bezel
Courtesy of DAIMLERCHRYSLER CORP.
Install gearshift knob (Fig 7). Torque set-screw to 2 N.m (20 in. lbs.).

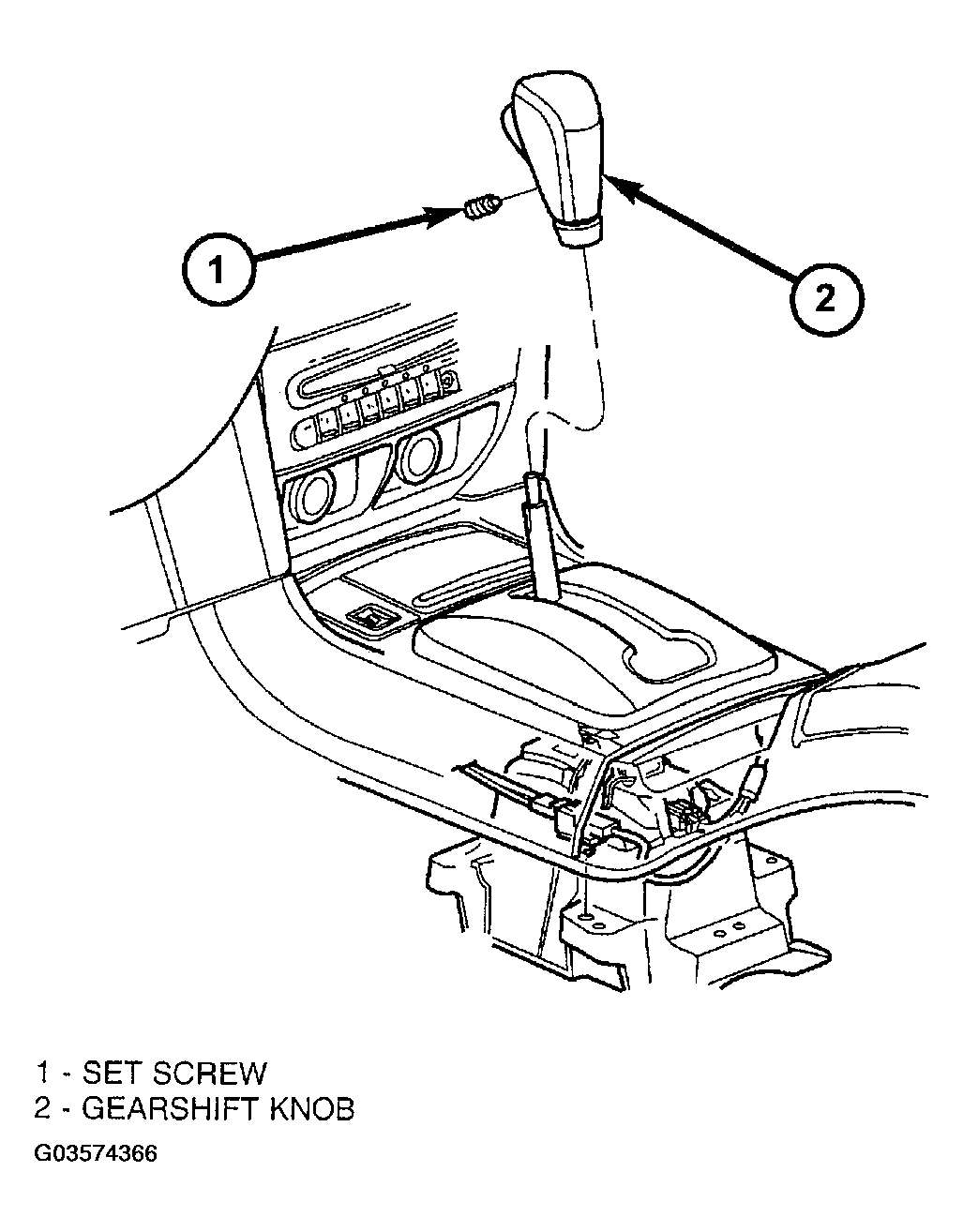

Fig 7: Installing Gearshift Knob
Courtesy of DAIMLERCHRYSLER CORP.
