Transmission Control Relay: Description

The transmission control relay (Fig 1) is located in the Power Distribution Center (PDC) which is located on the left side of the engine compartment between the battery and radiator upper support.

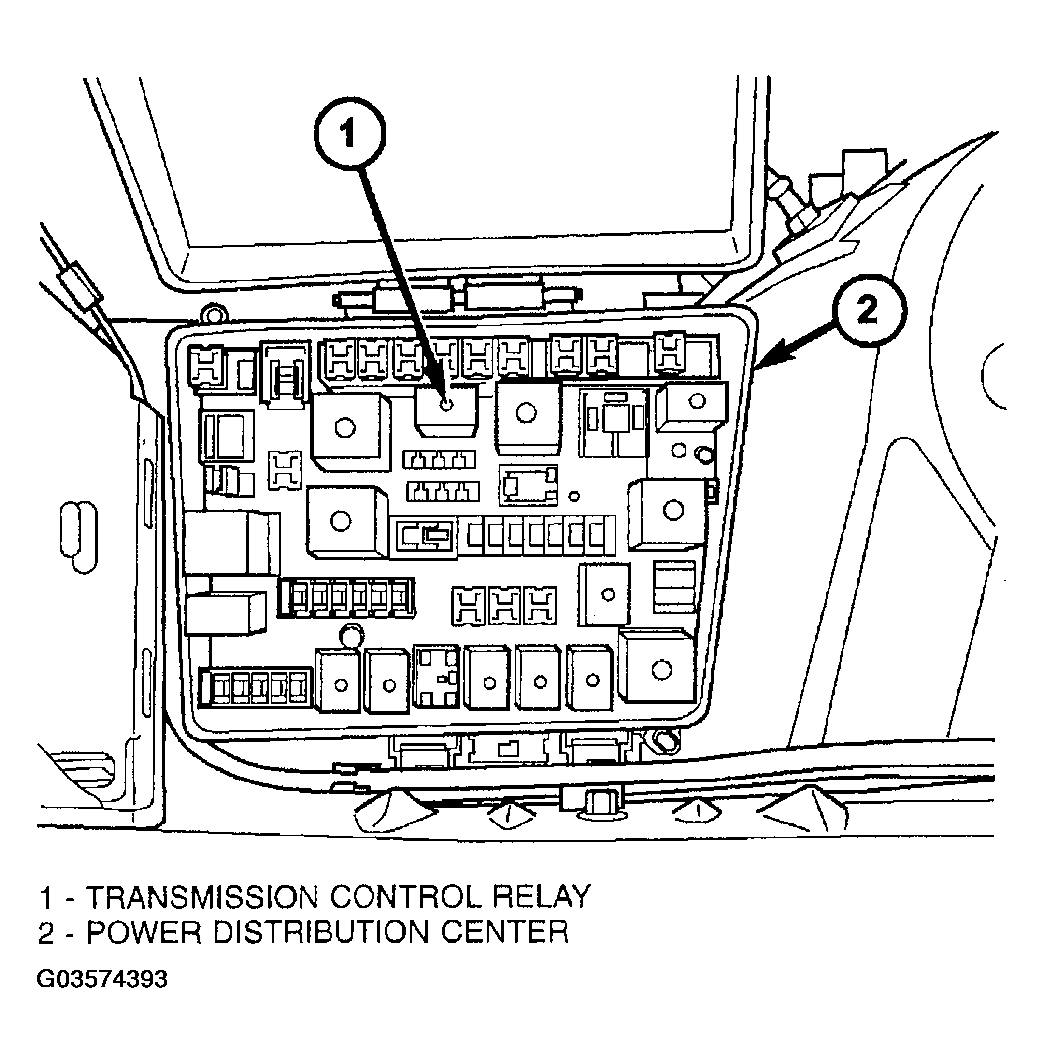

Fig 1: Identifying Transmission Control Relay Location

Courtesy of DAIMLERCHRYSLER CORP.
