Valve Body: Assembly

NOTE: If valve body assembly is reconditioned, the PCM/TCM Quick Learn Procedure must be performed. (Refer to STANDARD PROCEDURE - QUICK LEARN PROCEDURE )

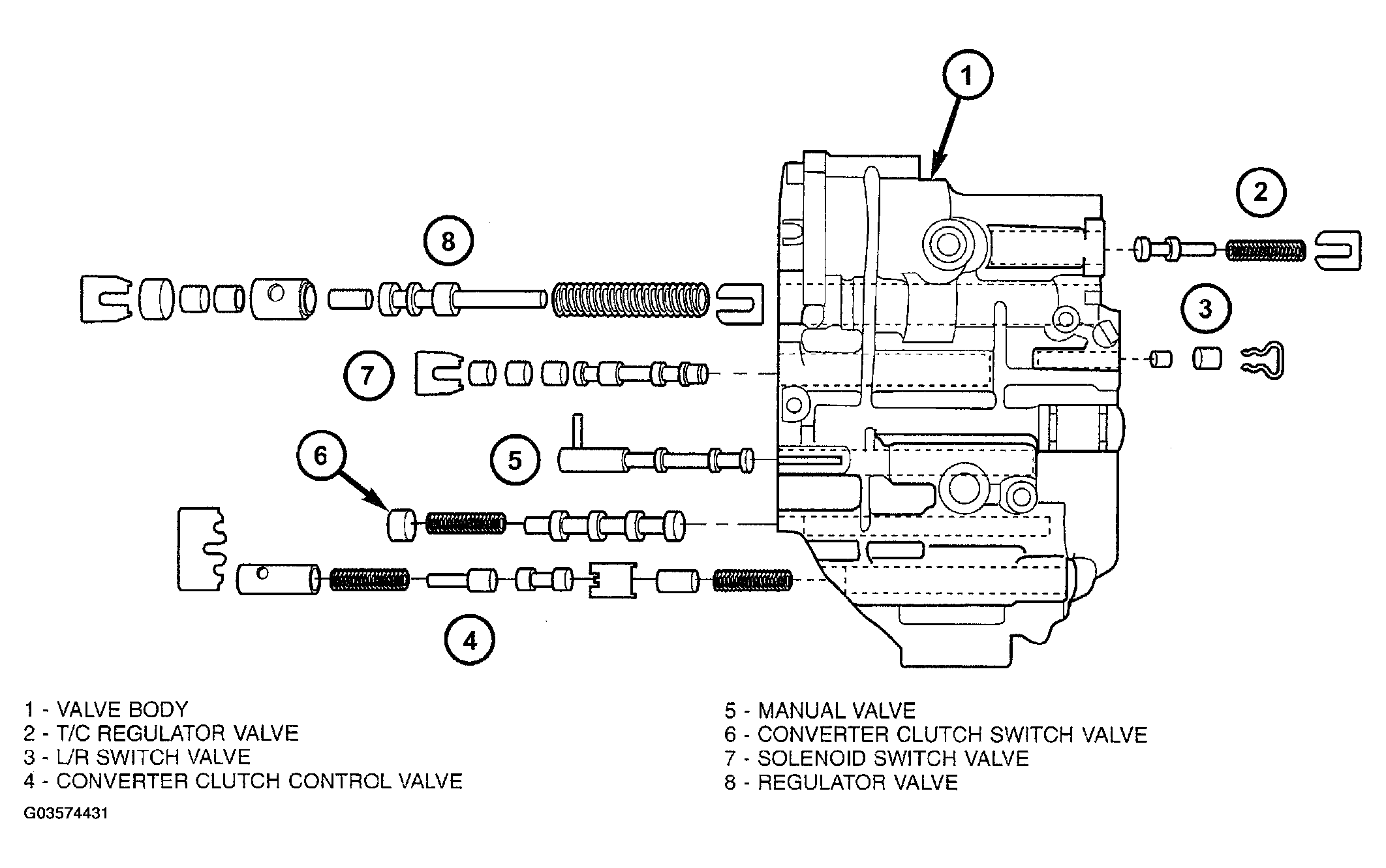

Install valves and springs as shown in (Fig 1).

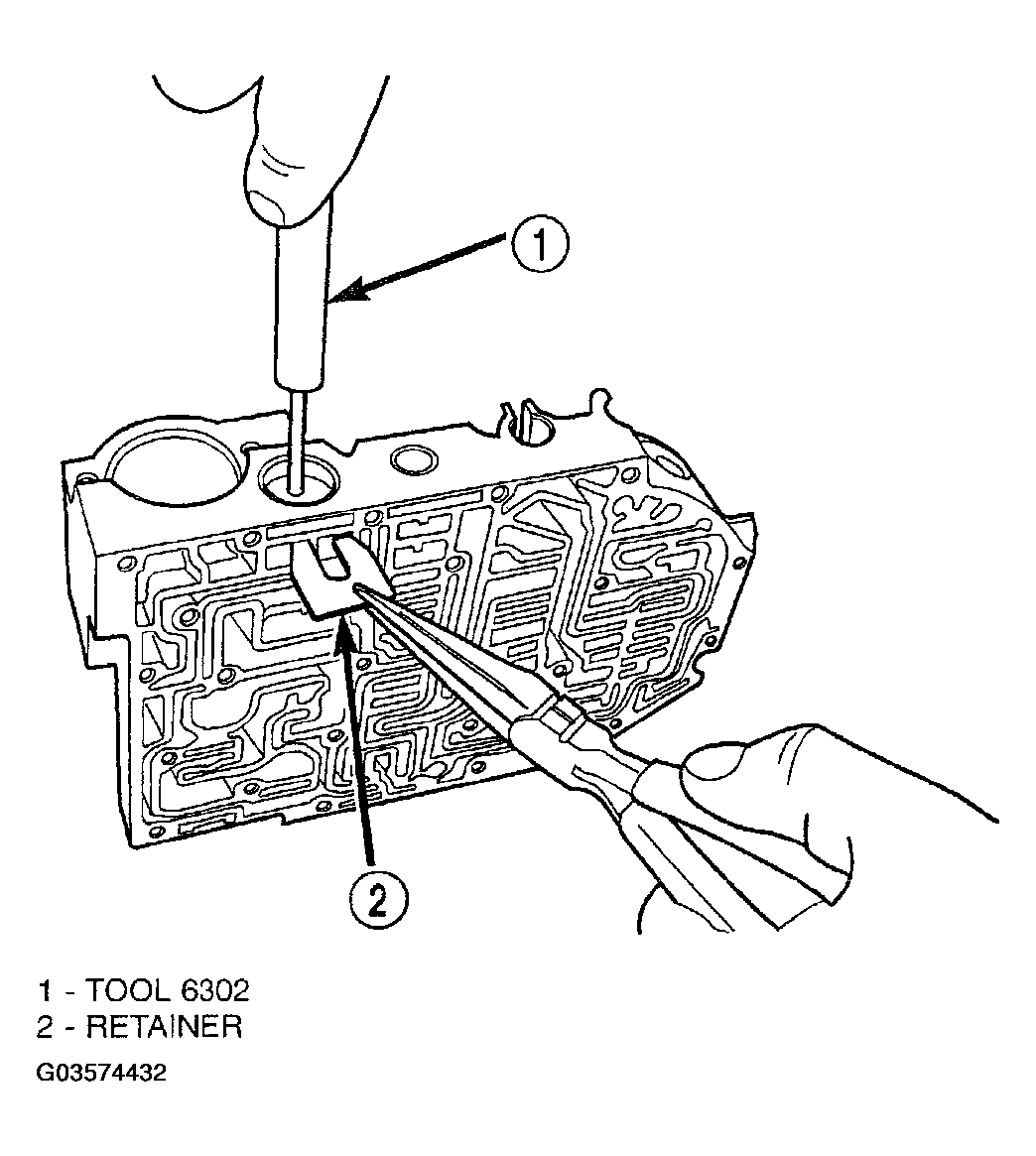

Install regulator valve spring retainer (Fig 2).

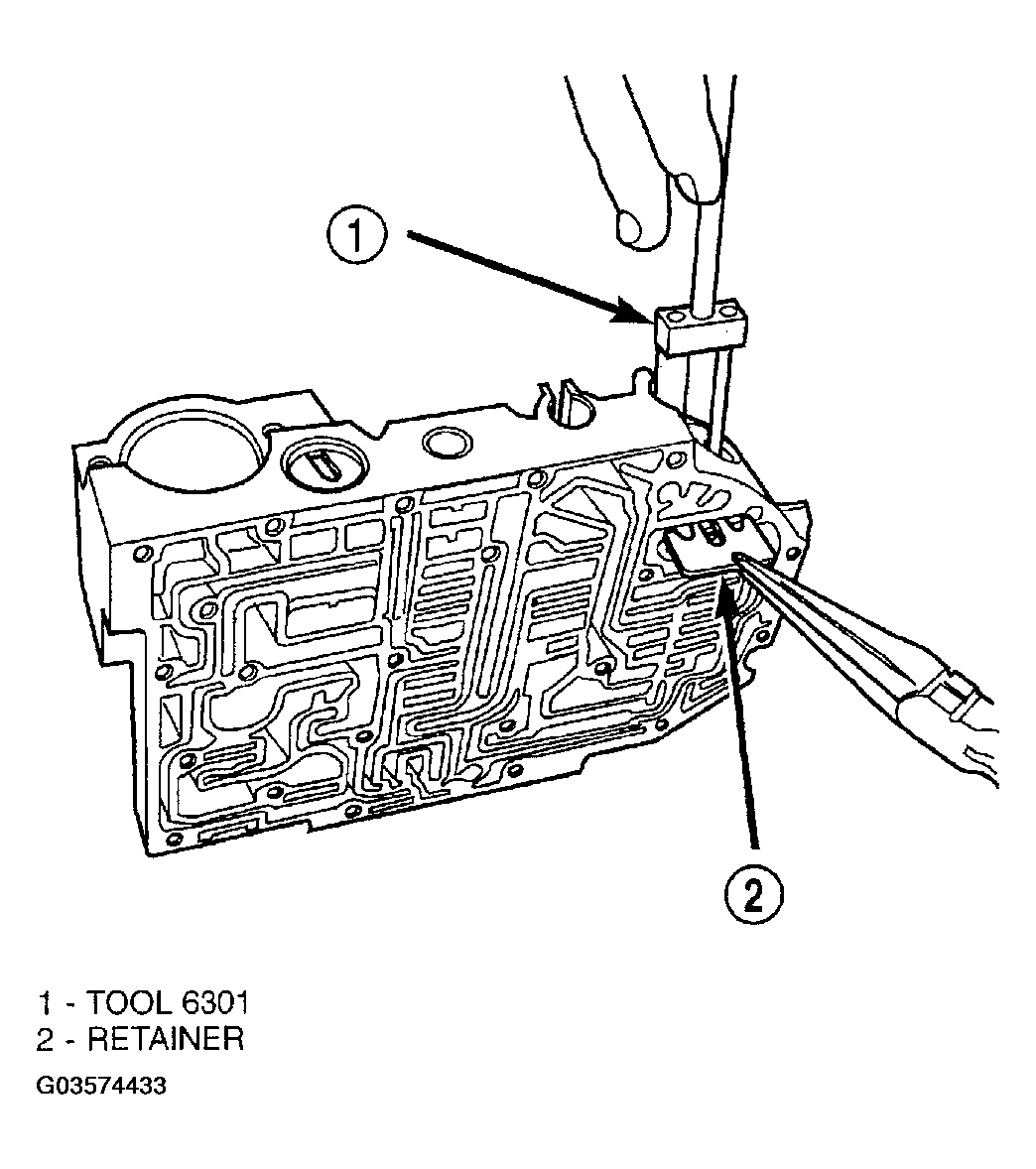

Install dual retainer plate using Tool 6301 (Fig 3).

Fig 1: Identifying Springs And Valves Location
Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Installing Regulator Valve Spring Retainer Using Tool 6302
Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Installing Dual Retainer Plate Using Tool 6301
Courtesy of DAIMLERCHRYSLER CORP.

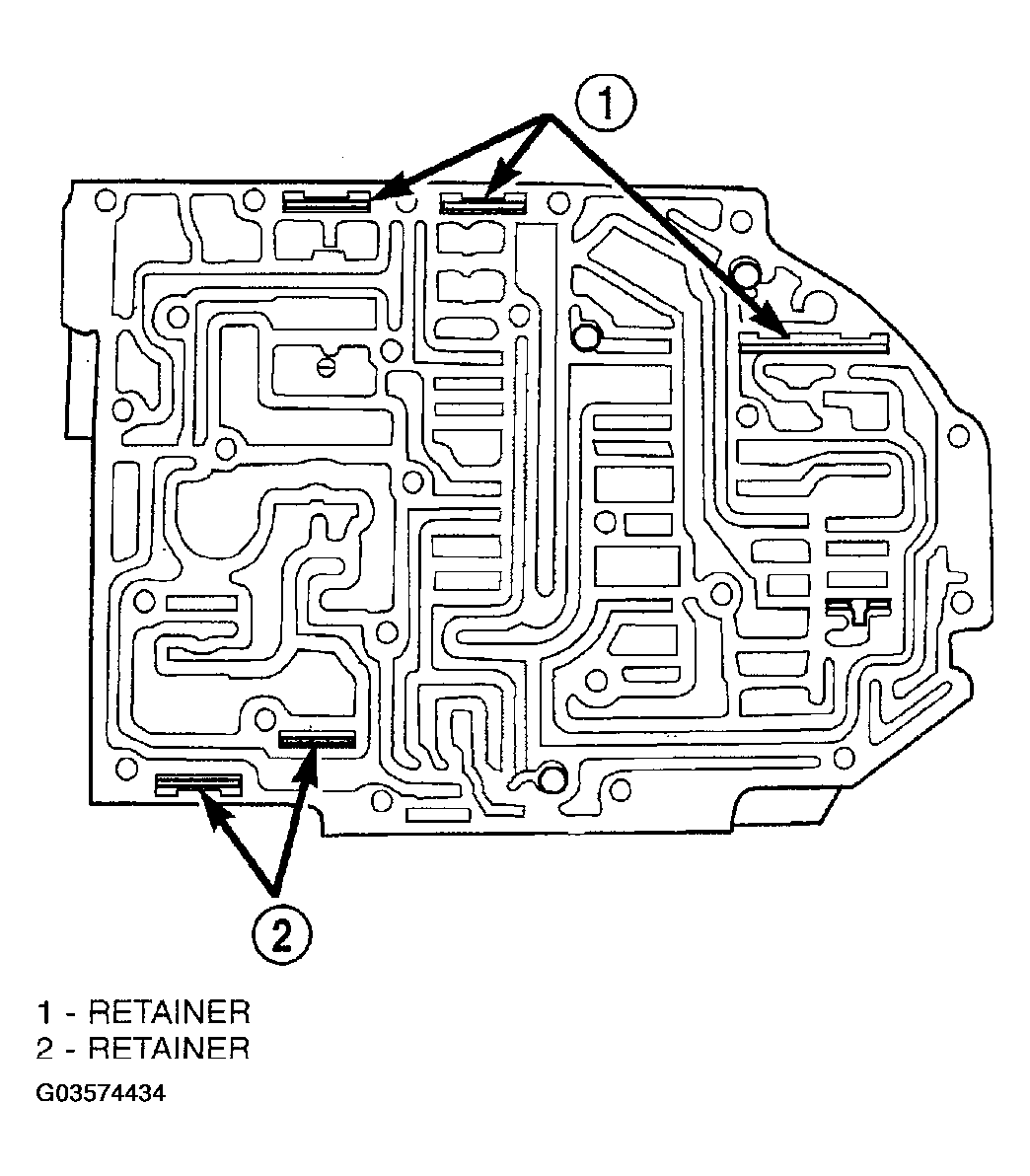

Verify that all retainers are installed as shown in (Fig 4). Retainers should be flush or below valve body surface.

Fig 4: Identifying Valve Retainer Location
Courtesy of DAIMLERCHRYSLER CORP.

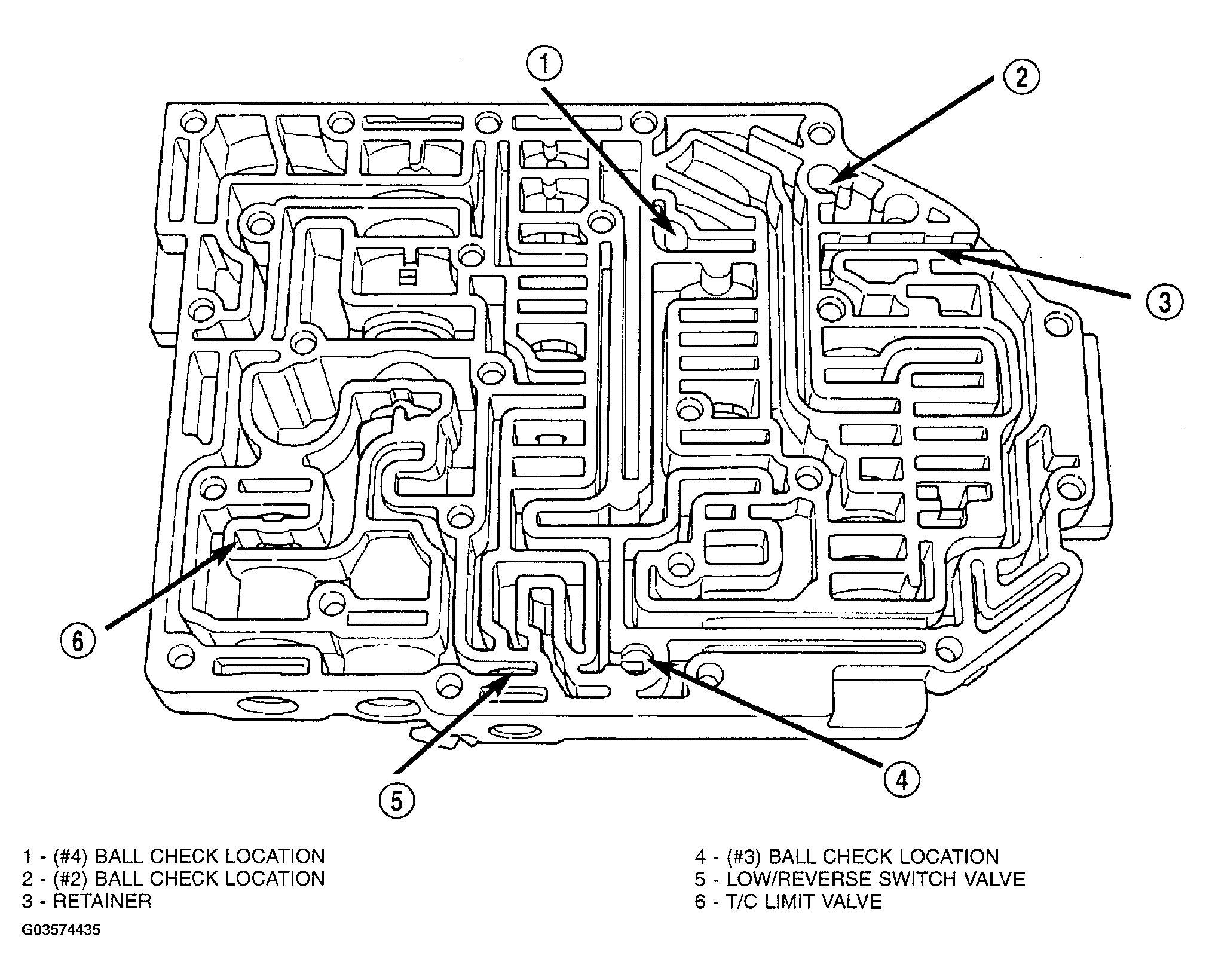

Install check balls into position as shown in (Fig 5). If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.

Fig 5: Checking Ball Location
Courtesy of DAIMLERCHRYSLER CORP.

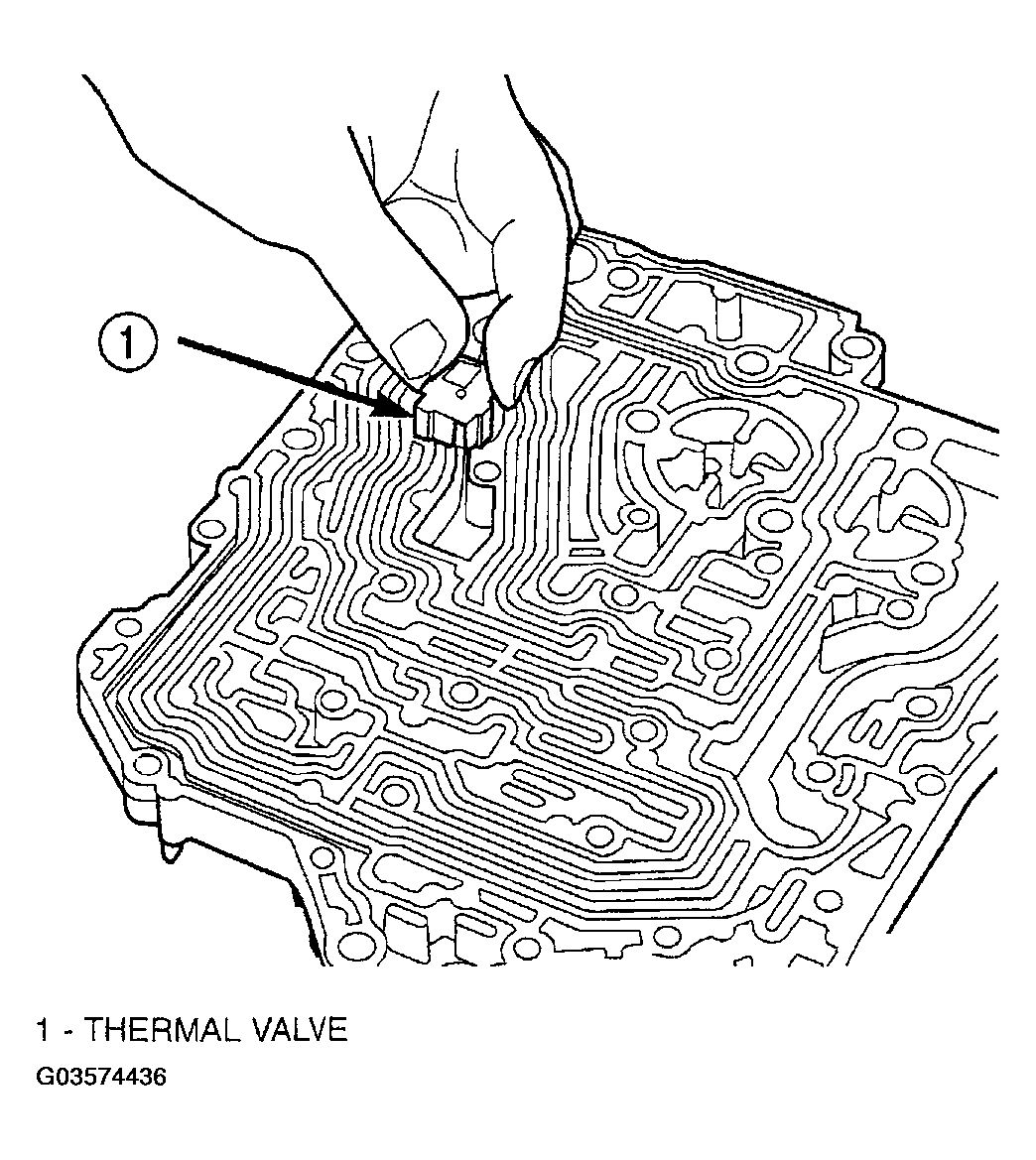

Install thermal valve into transfer plate (Fig 6).

Fig 6: Installing Thermal Valve
Courtesy of DAIMLERCHRYSLER CORP.

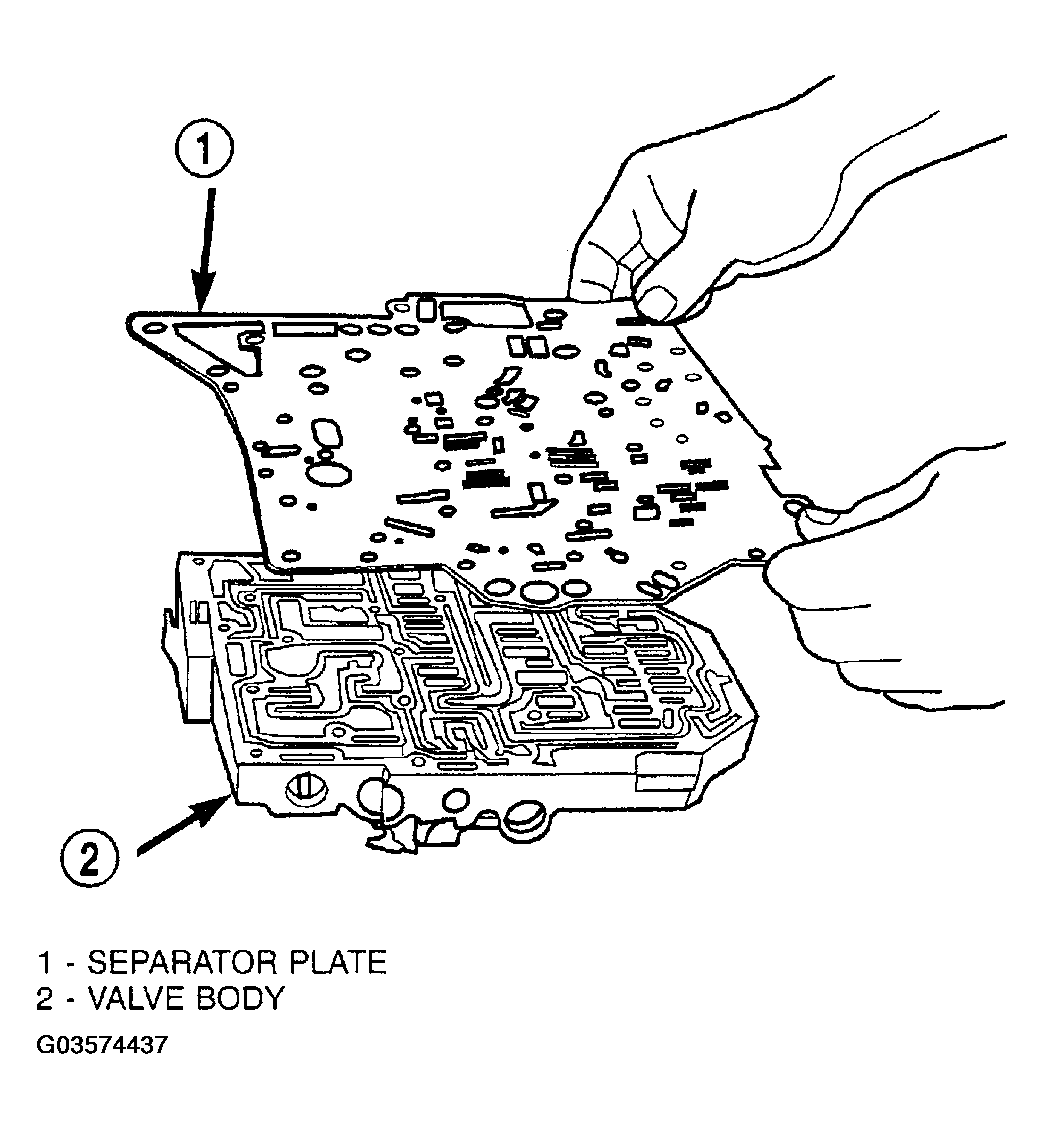

Install separator plate to valve body (Fig 7).

Fig 7: Installing Separator Plate
Courtesy of DAIMLERCHRYSLER CORP.

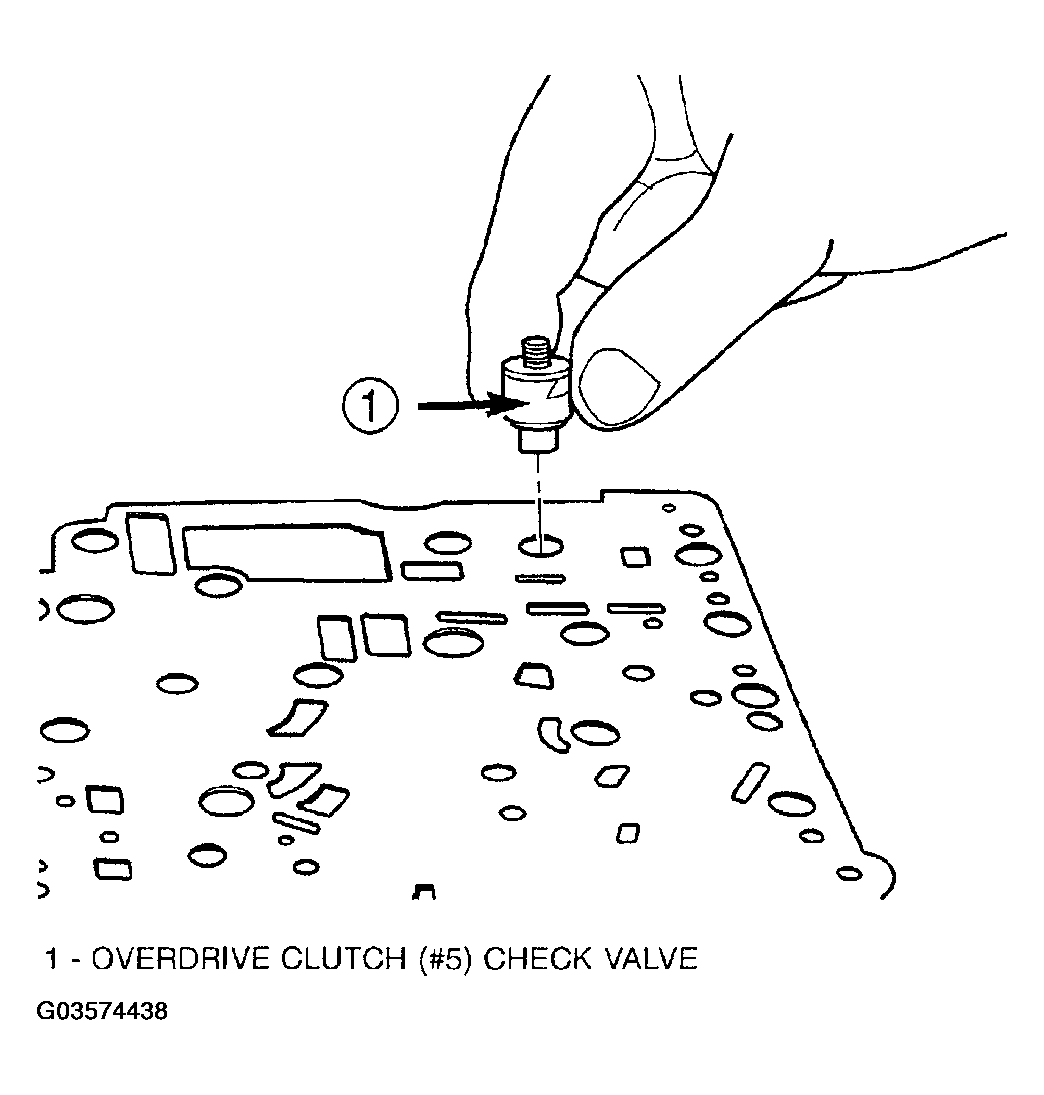

Install the overdrive clutch (#5) check valve to separator plate (Fig 8)

Fig 8: Installing Overdrive Clutch (#5) Check Valve
Courtesy of DAIMLERCHRYSLER CORP.

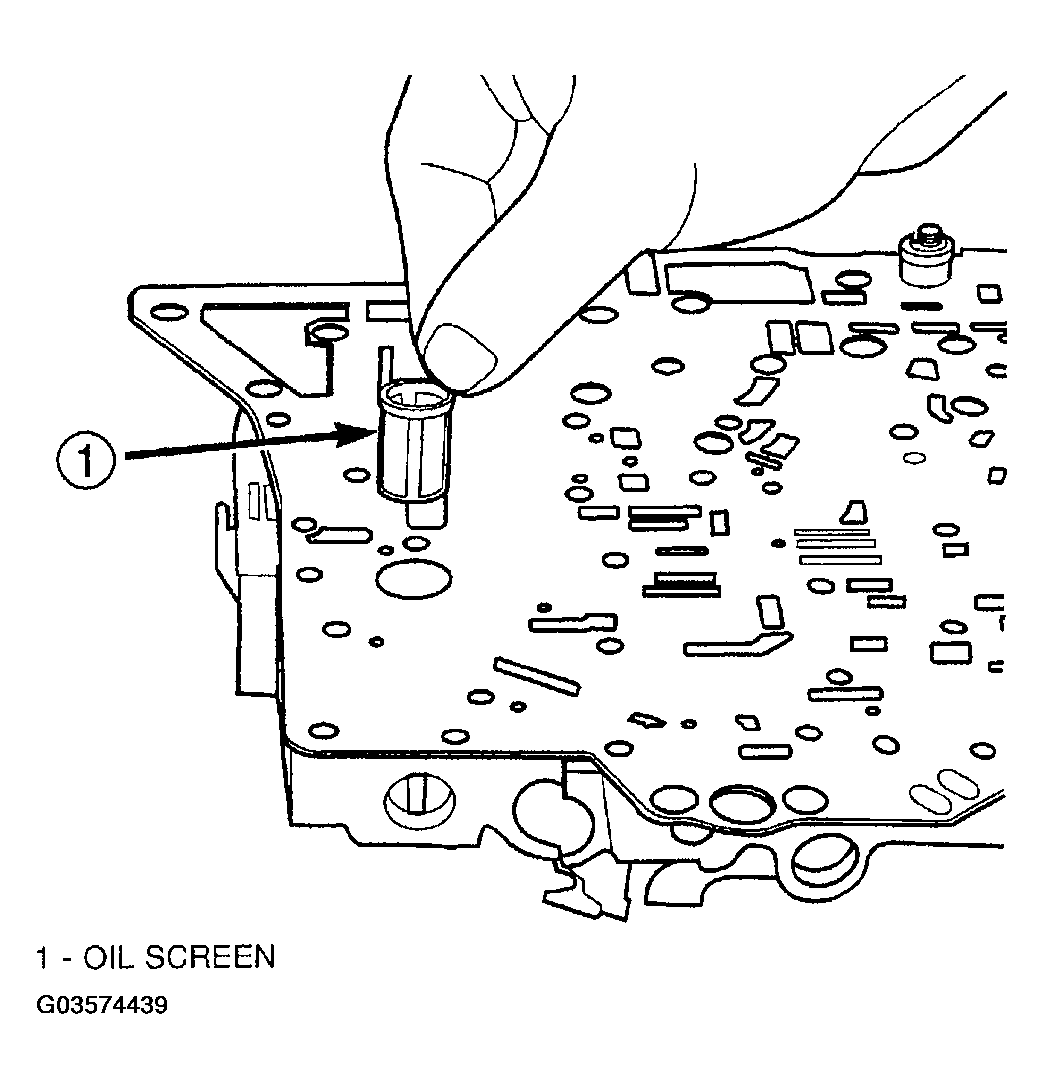

Install oil screen to separator plate (Fig 9).

Fig 9: Installing Oil Screen
Courtesy of DAIMLERCHRYSLER CORP.

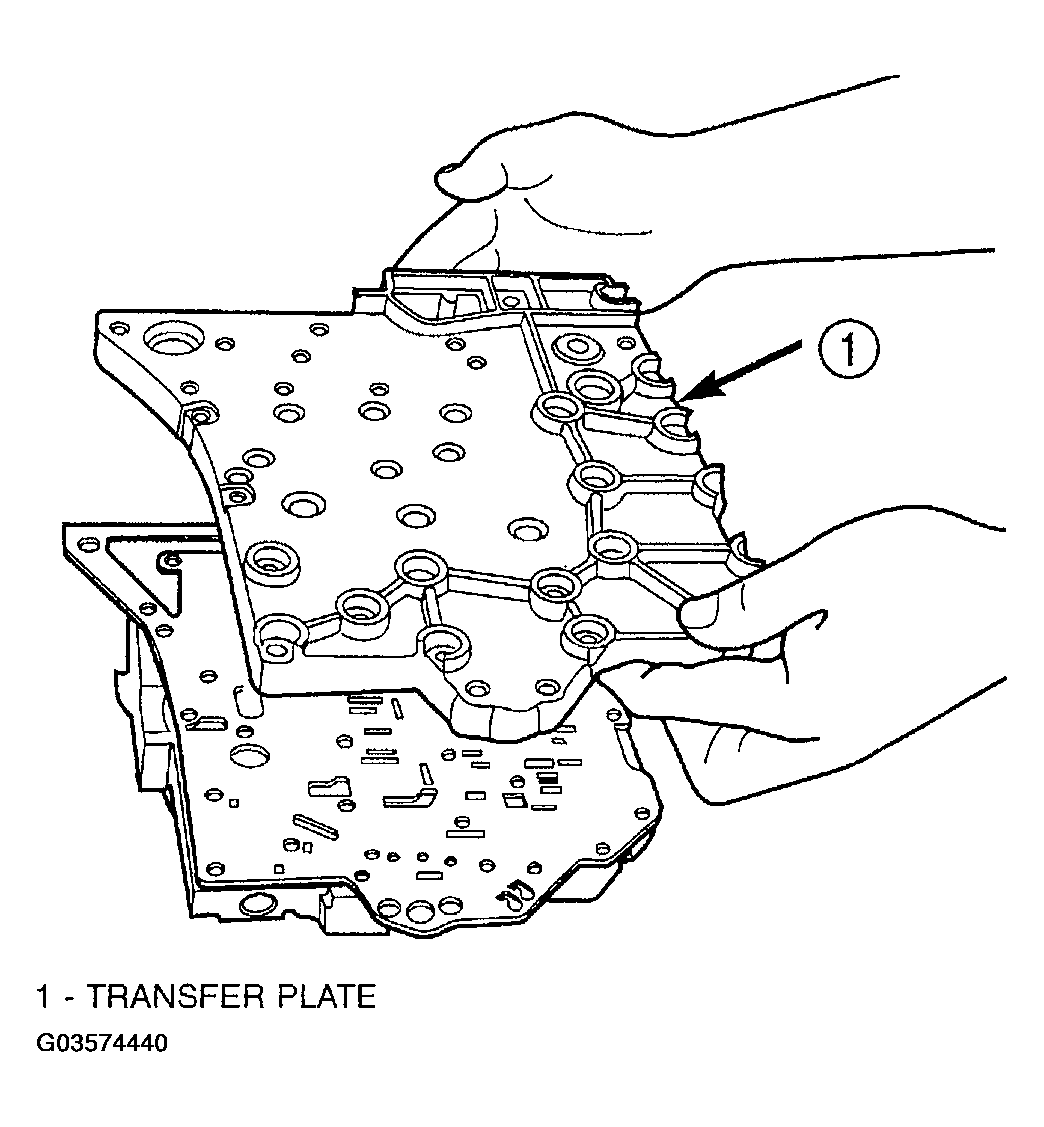

Install transfer plate to valve body and separator plate. Make sure oil screen and #5 check valve do not bind (Fig 10).

Fig 10: Installing Transfer Plate
Courtesy of DAIMLERCHRYSLER CORP.

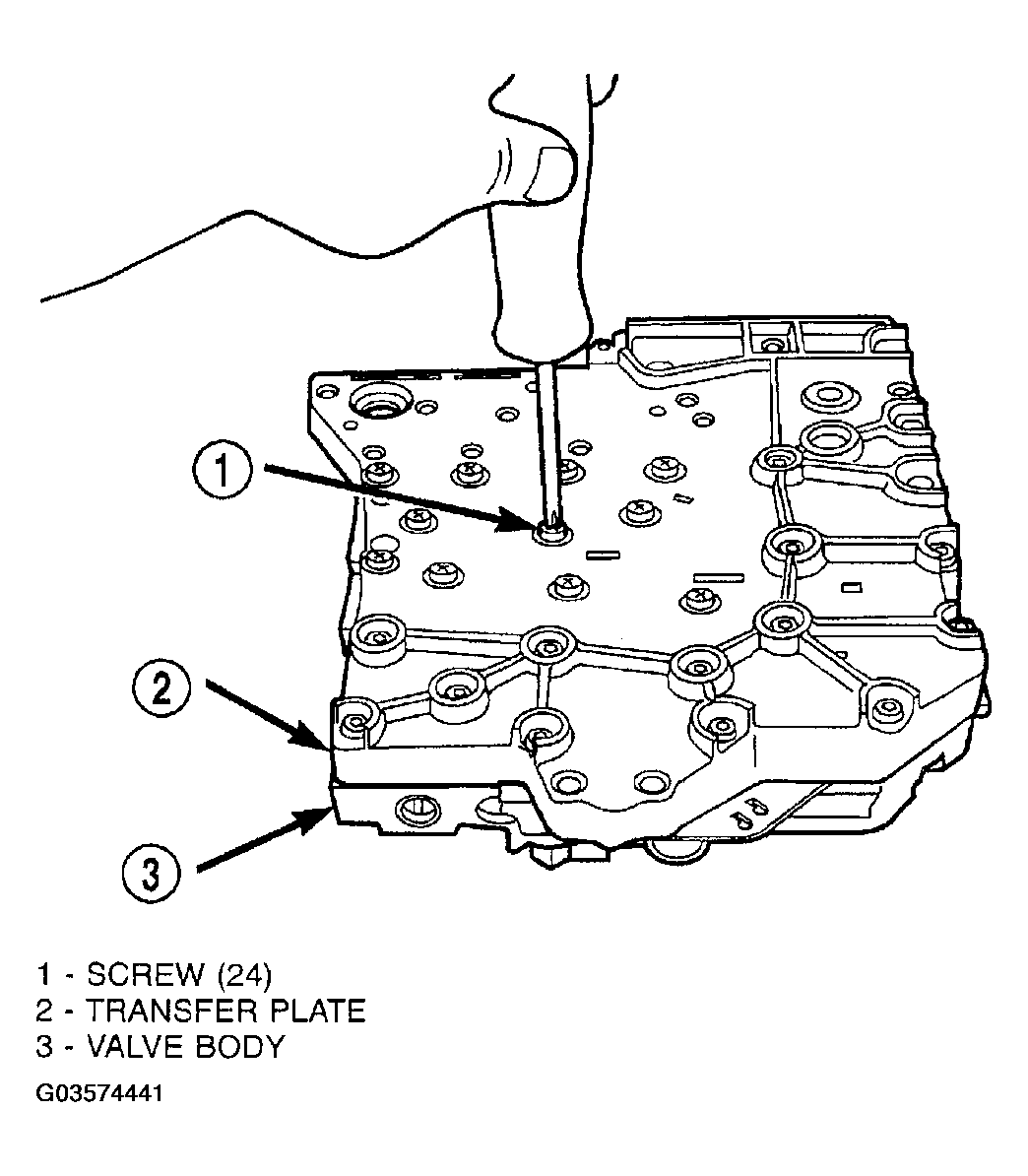

Install twenty-four transfer plate to valve body screws (Fig 11) and torque to 5 N.m (45 lbs.).

Fig 11: Installing Valve Body To Transfer Plate Screws
Courtesy of DAIMLERCHRYSLER CORP.

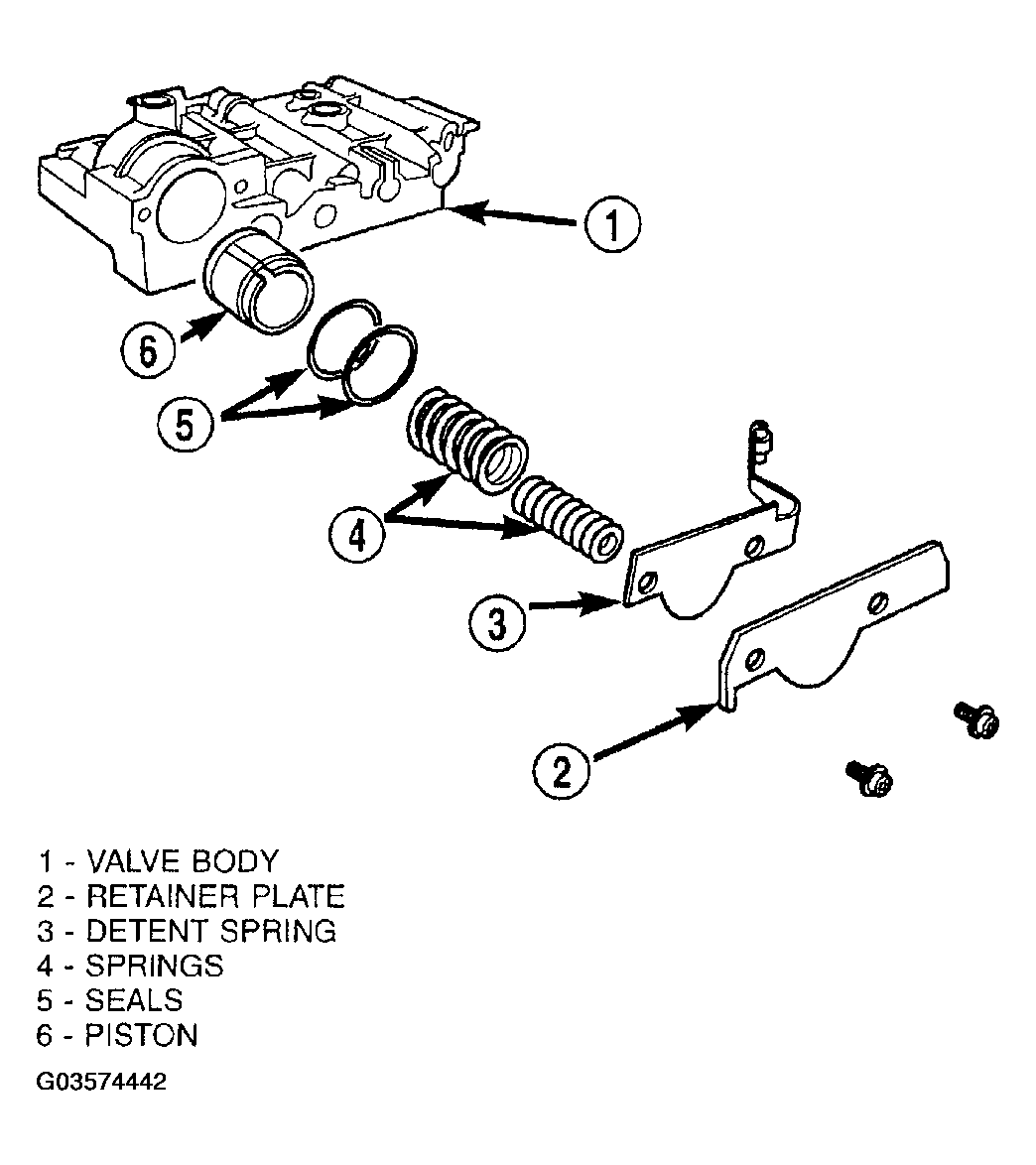

Install 2/4 Accumulator components as shown in (Fig 12).

Fig 12: Installing 2/4 Accumulator Assembly
Courtesy of DAIMLERCHRYSLER CORP.

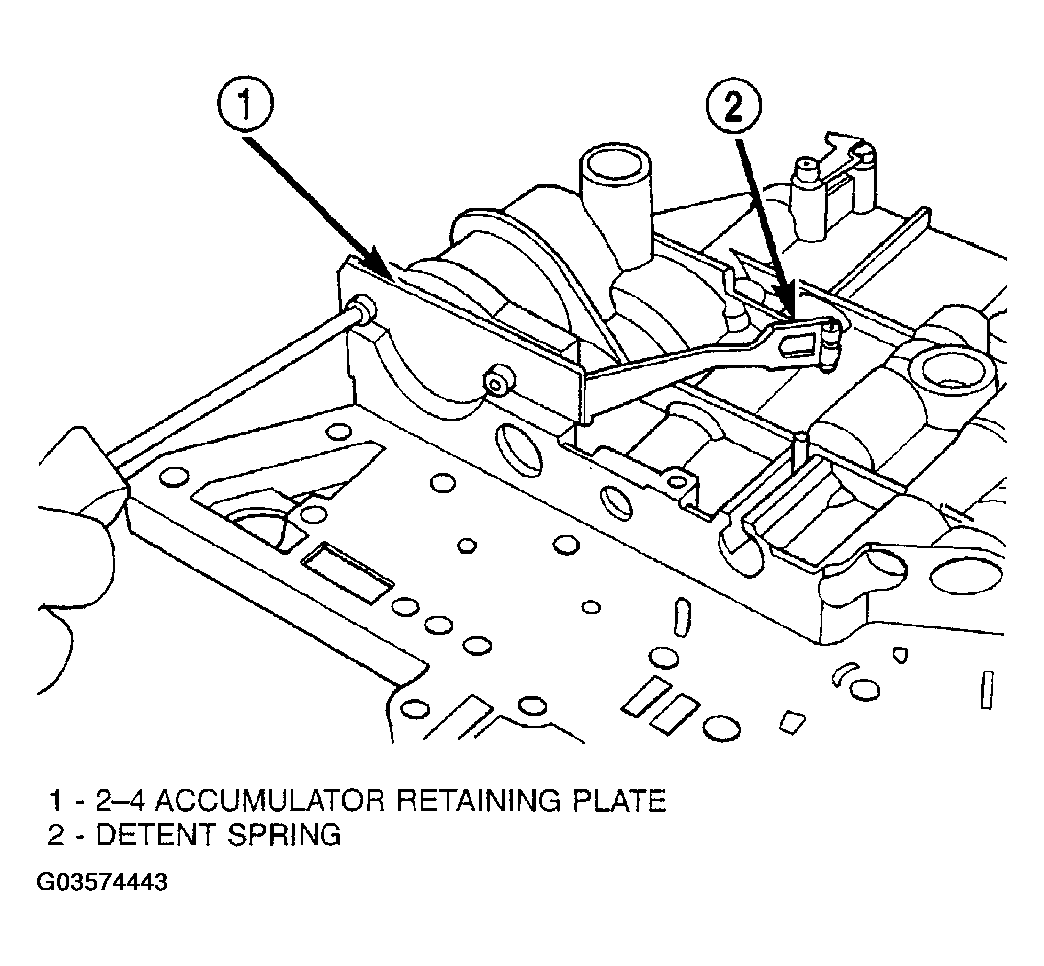

Torque 2/4 Accumulator retainer to 5 N.m (45 in. lbs.) (Fig 13).

Fig 13: Identifying 2/4 Accumulator Retaining Plate
Courtesy of DAIMLERCHRYSLER CORP.

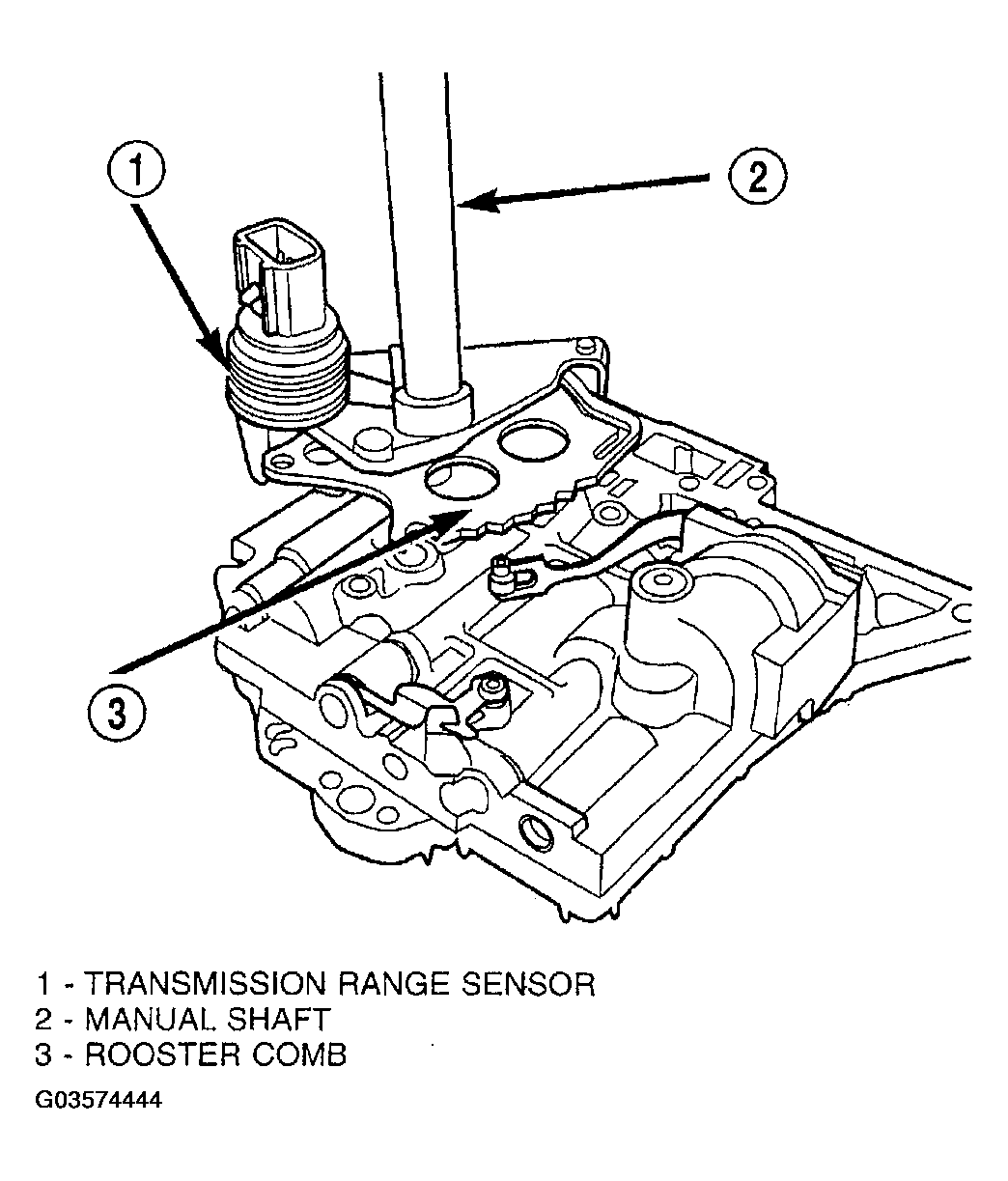

Install Manual Shaft/Rooster Comb and Transmission Range Sensor (Fig 14).

Fig 14: Installing Manual Shaft/Rooster Comb And Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.

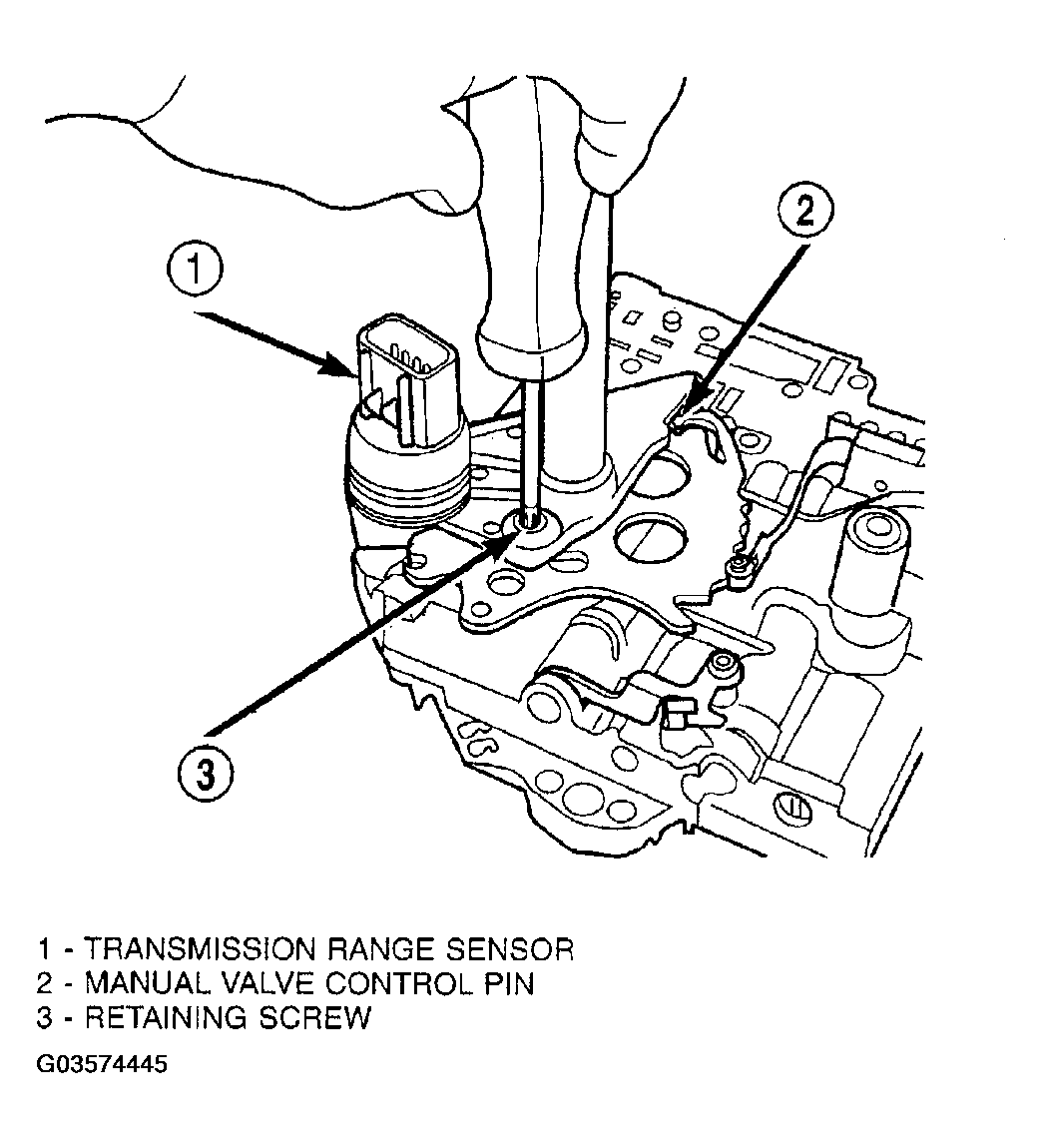

Make sure Manual Valve control pin is contained within the rooster comb slot (Fig 15). Install Transmission Range Sensor retaining screw (Fig 15) and torque to 5 N.m (45 in. lbs.).

Fig 15: Installing Transmission Range Sensor Retaining Screw
Courtesy of DAIMLERCHRYSLER CORP.

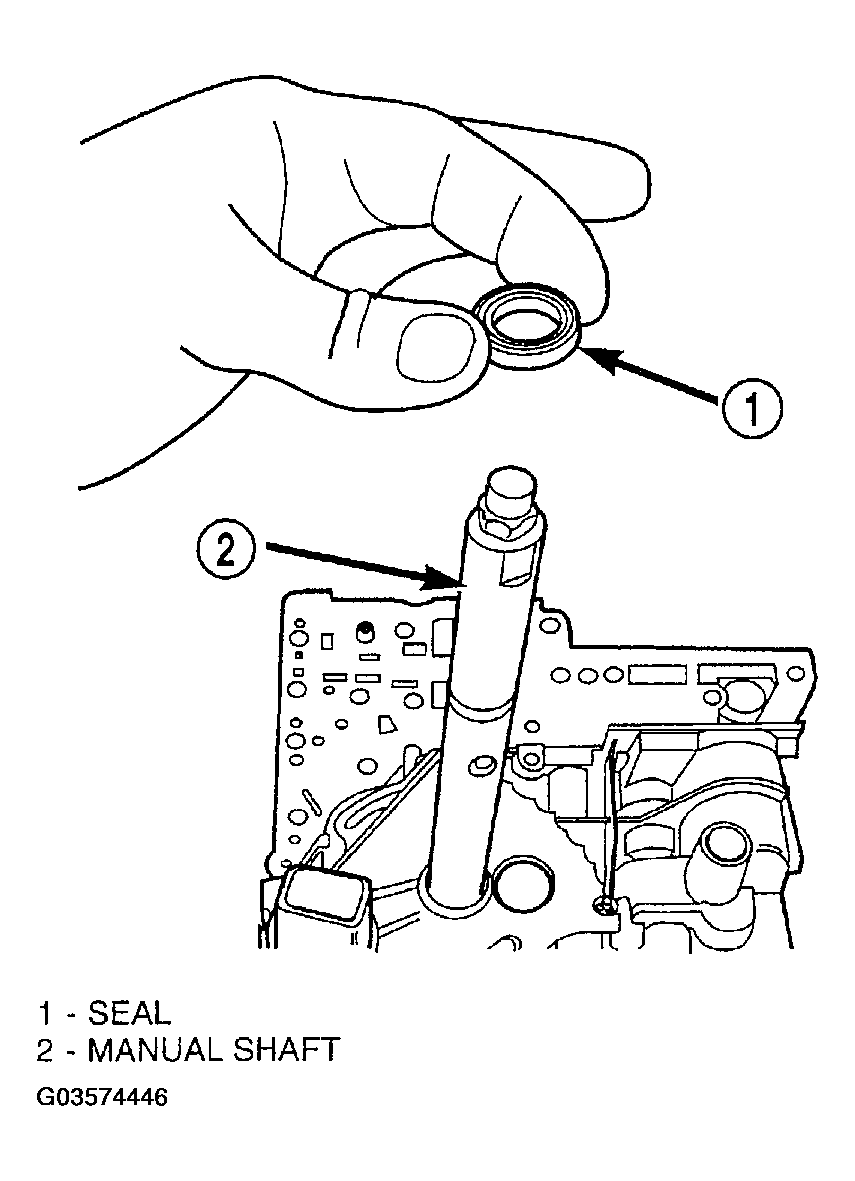

Install manual shaft seal (Fig 16).

Fig 16: Installing Manual Shaft Seal
Courtesy of DAIMLERCHRYSLER CORP.
