Powertrain Control Module C4 - Black/Green 38 Way Connector End View
Powertrain Control Module C4 - Black/Green 38 Way Connector End View

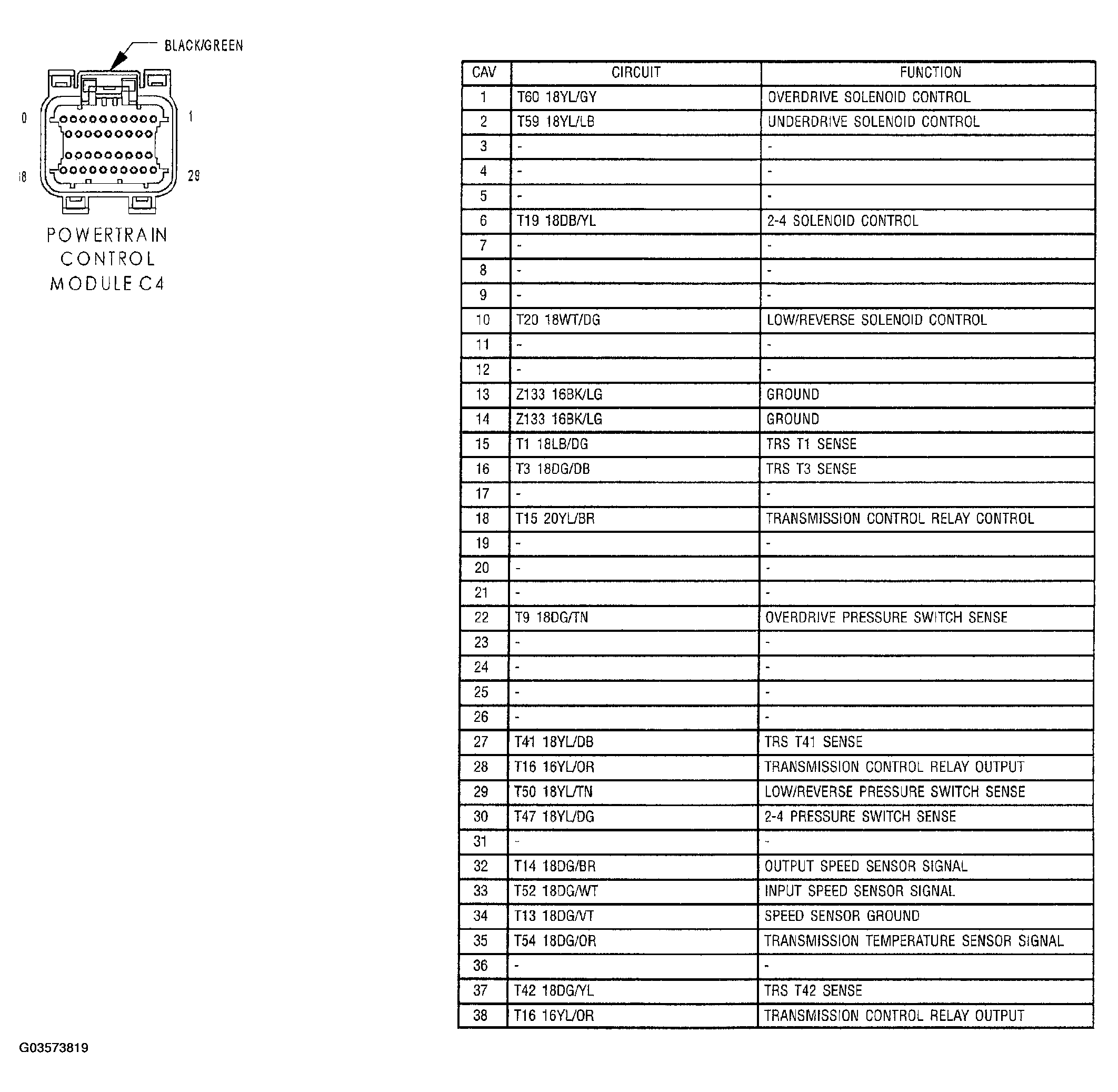

Fig 1: Powertrain Control Module Connector End View (C4)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
