Right Mount: Installation

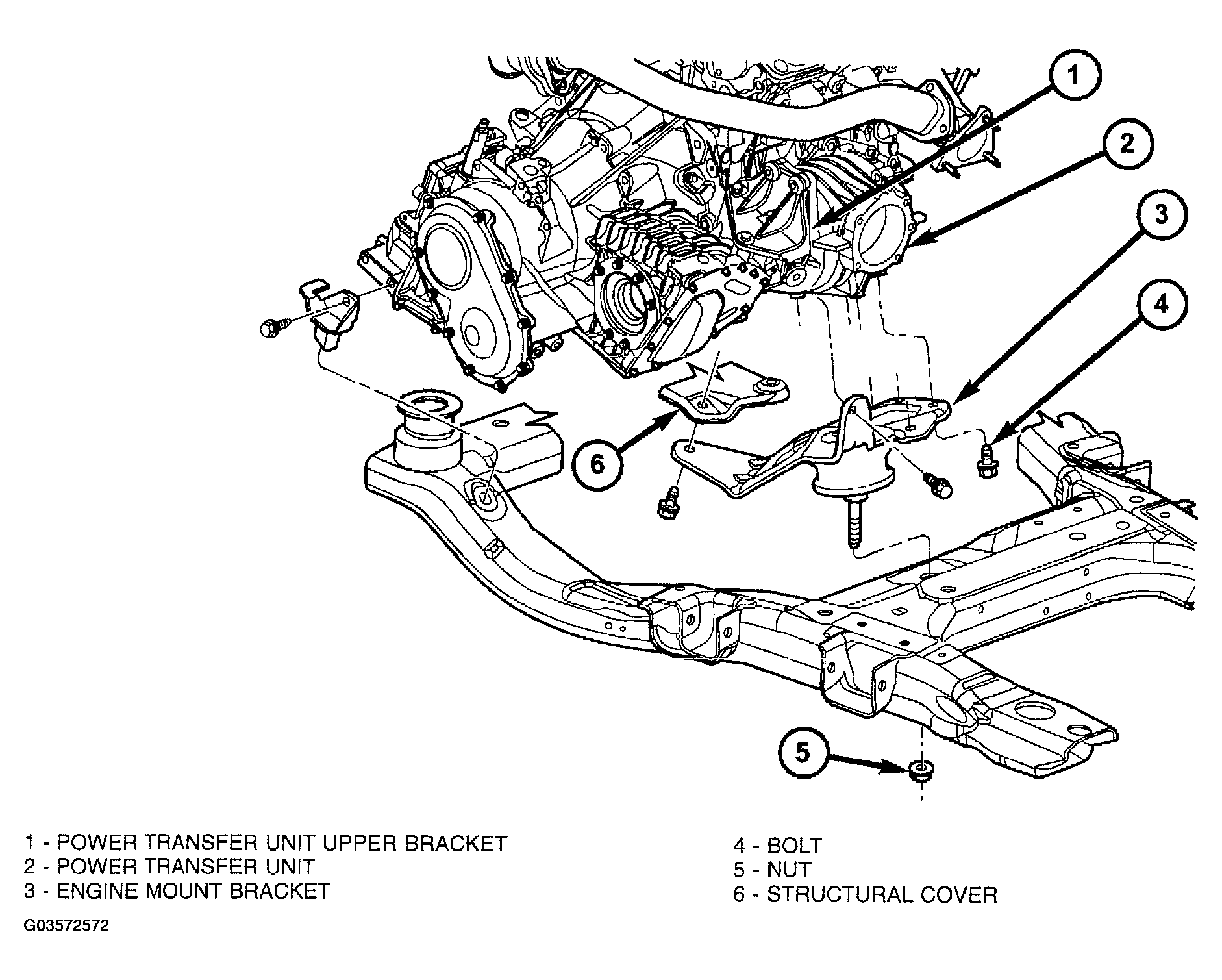

  1. Install the engine mount and plate. Tighten bolts to 54 N.m (40 lbs. ft.) (Figure ).
  2. Install the engine mount upper nut. Tighten nut to 101 N.m (75 lbs. ft.) (Figure ).
  3. Install right engine mount bracket bolts. Tighten bolts to 54 N.m (40 lbs. ft.) (Figure ).
  4. Lower the vehicle.
  5. Remove the engine support fixture.
  6. Raise and support the vehicle.
  7. Install both lower engine mount to cradle nuts. Tighten nuts to 101 N.m (75 lbs. ft.) (Figure ).
  8. Lower vehicle and connect the negative battery cable.
