Map Sensor: Installation

The sensor mounts onto intake manifold plenum (Fig 1 ). Tighten screws to 4.5 N.m (40 in. lbs.) torque.

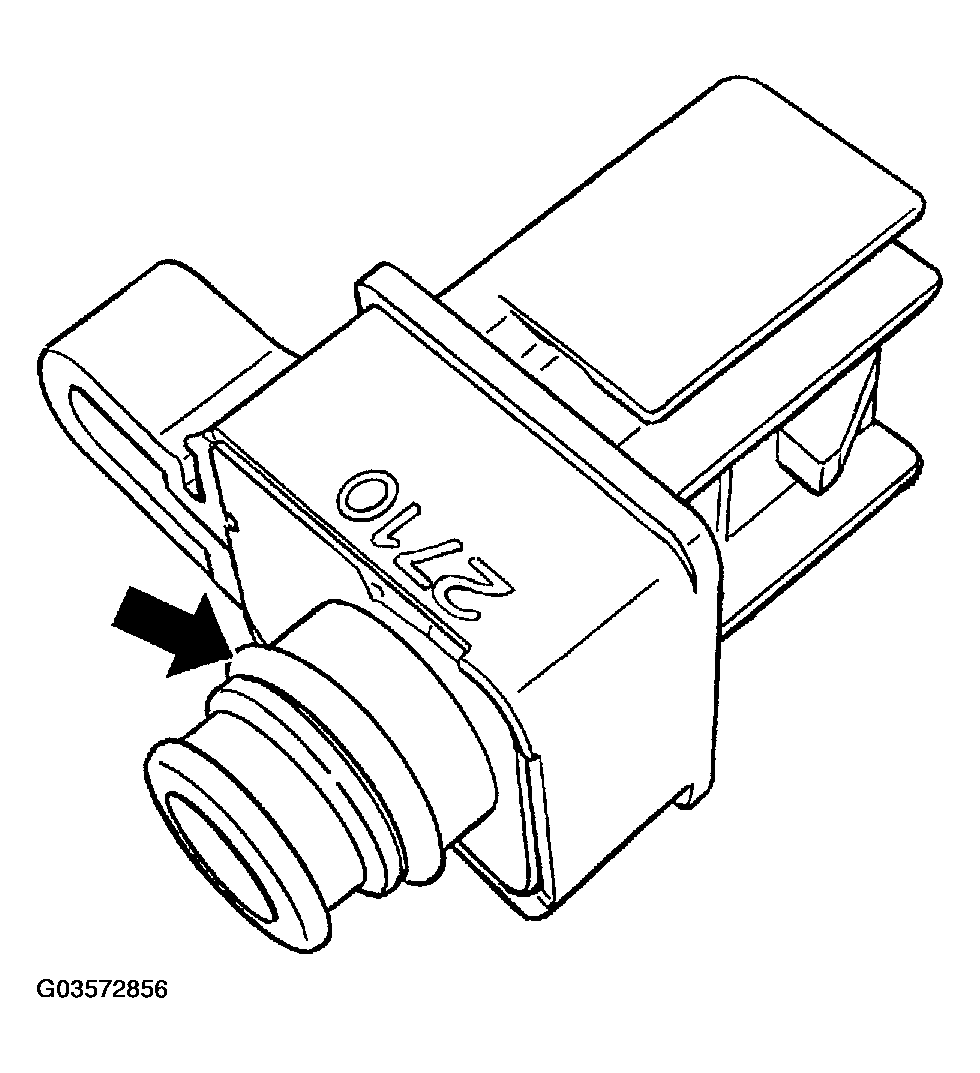

Fig 1: Identifying MAP Sensor O-Ring
Courtesy of DAIMLERCHRYSLER CORP.
Attach electrical connector to sensor.
Install the negative battery cable.
