Knock Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Remove the upper intake manifold, (Refer INTAKE MANIFOLD )
  3. Disconnect the electrical connector (Fig 1).

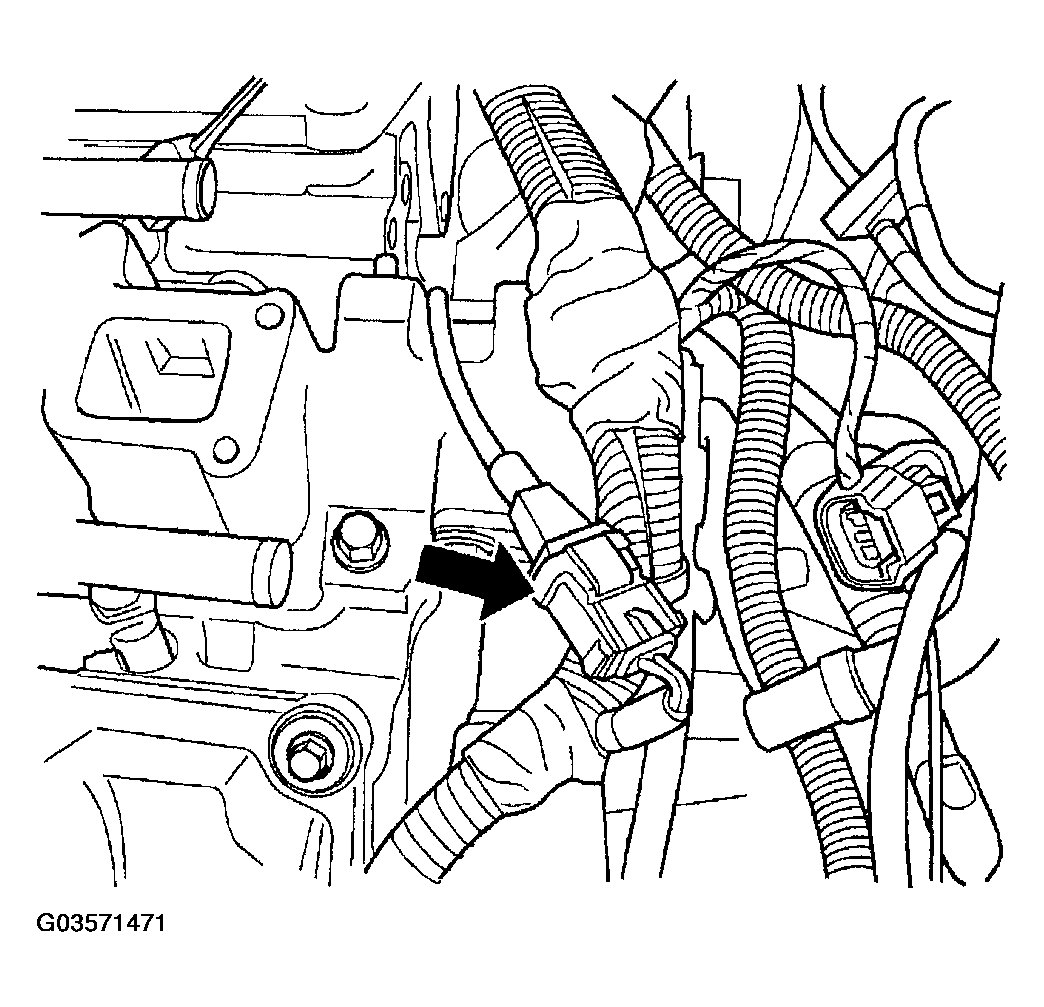

    Fig 1: Disconnecting Knock Sensor Connector
    G03571471Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the knock sensor (Fig 2).

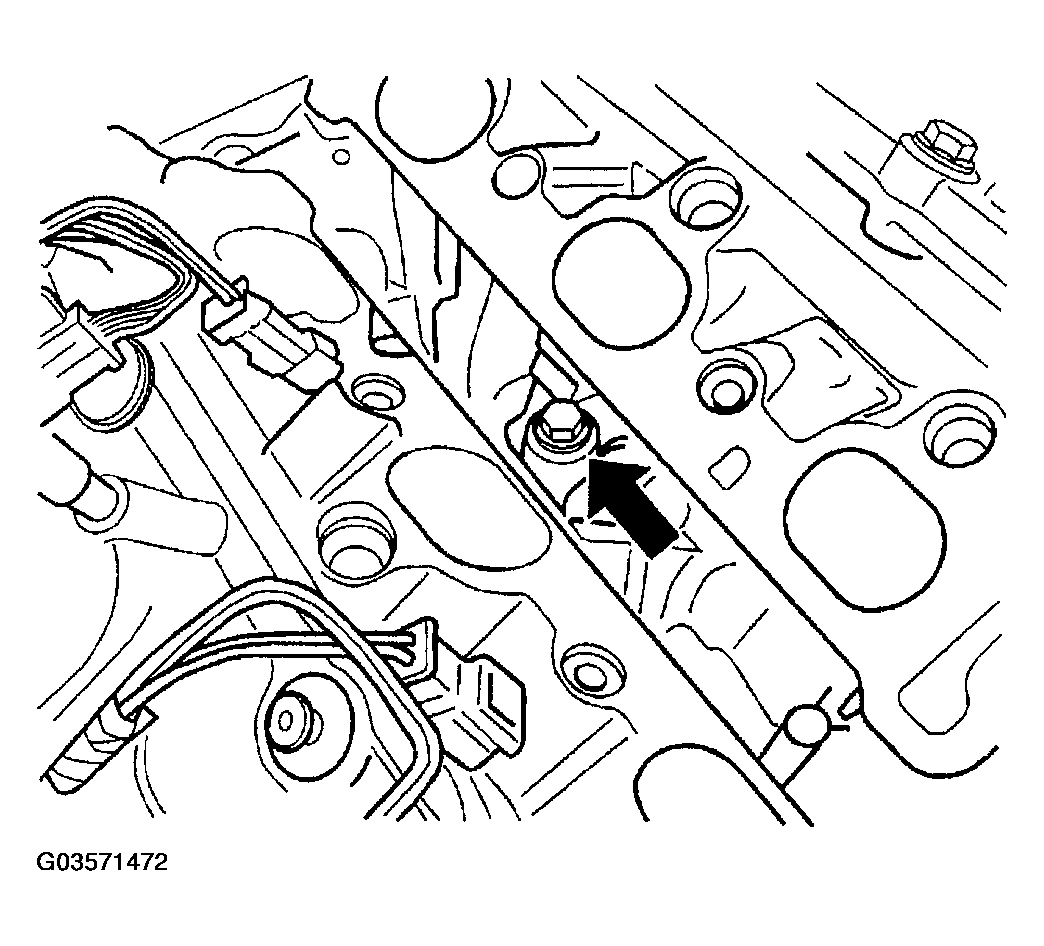

    Fig 2: Locating Knock Sensor
    G03571472Courtesy of DAIMLERCHRYSLER CORP.
