Component Locations
›
Fuel System And EVAP System
Fuel System And EVAP System

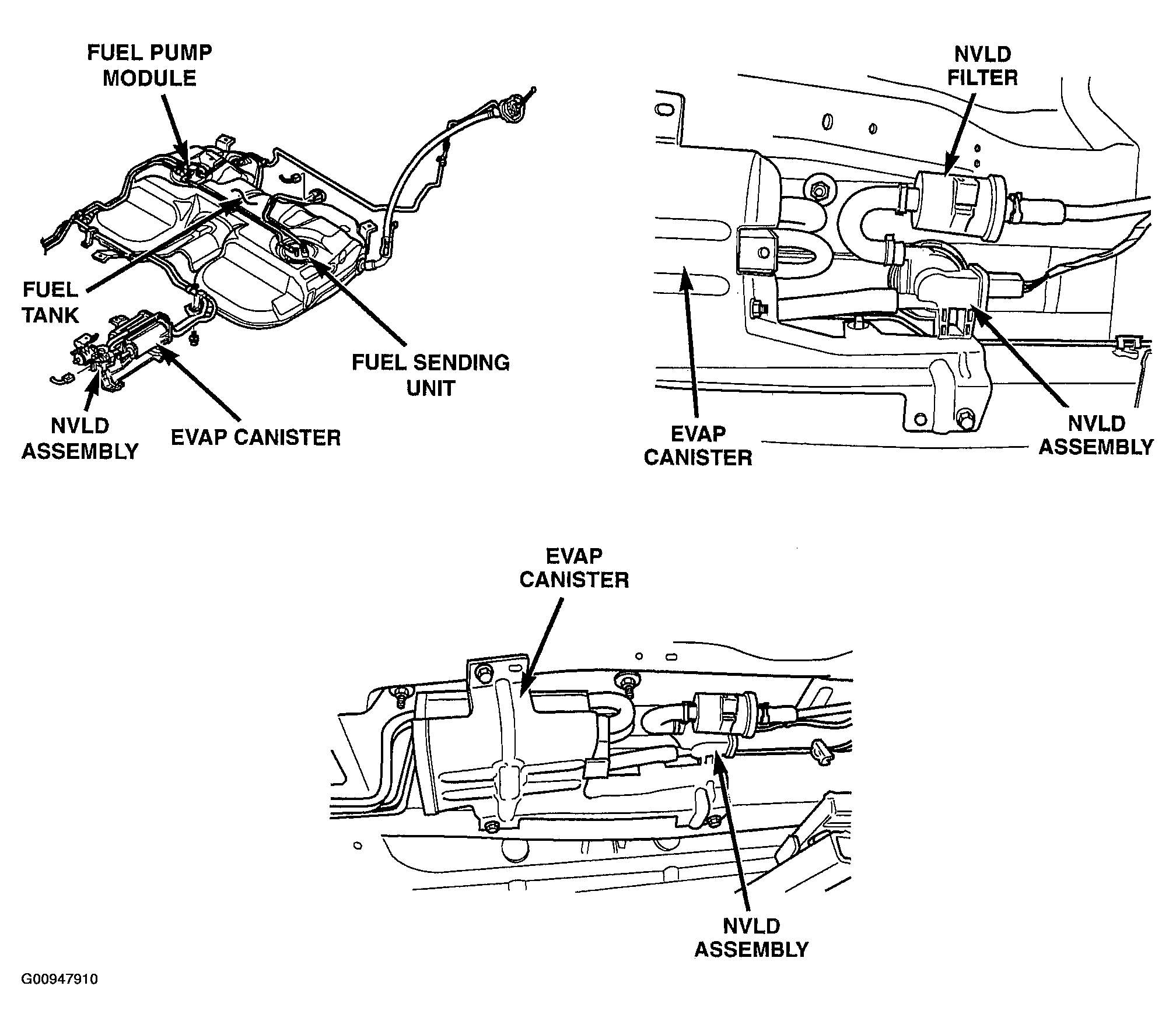

Fig 1: Locating Fuel System And EVAP System Components
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
