Home › Chrysler › 2004 › Pacifica FWD › Repair and Diagnosis › Engine Performance › System › Powertrain Diagnostic Procedures › Component Locations › Sensor

Component Locations: Sensor

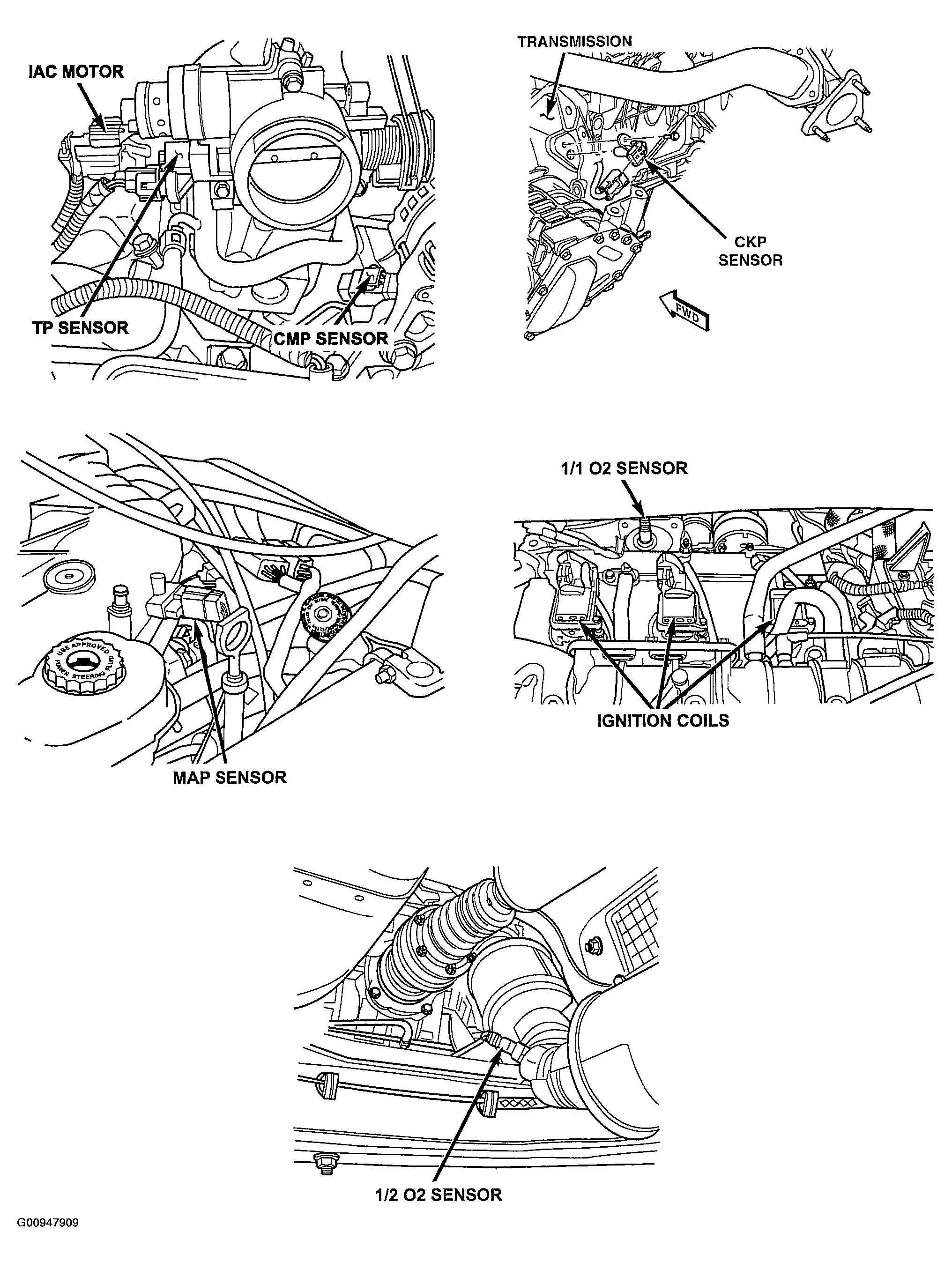

Fig 1: Locating Sensors
G00947909Courtesy of DAIMLERCHRYSLER CORP.
