Battery Temperature Sensor Connector End View
Battery Temperature Sensor Connector End View

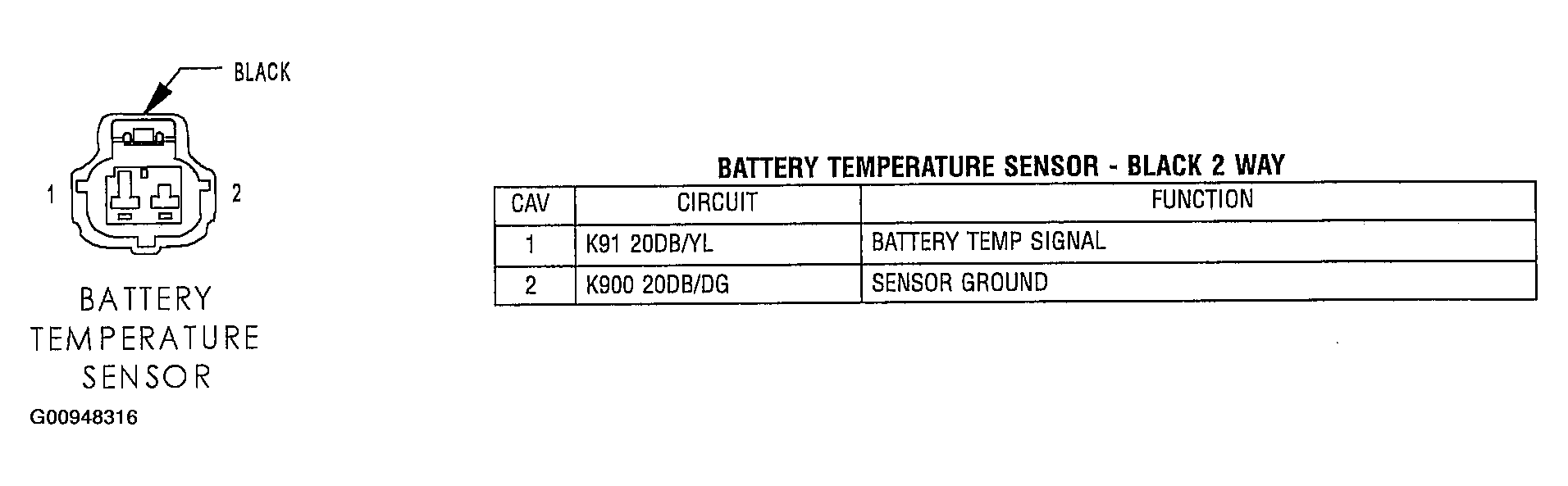

Fig 1: Identifying Battery Temperature Sensor - Black 2 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
