Fuel Pump Module Connector End View

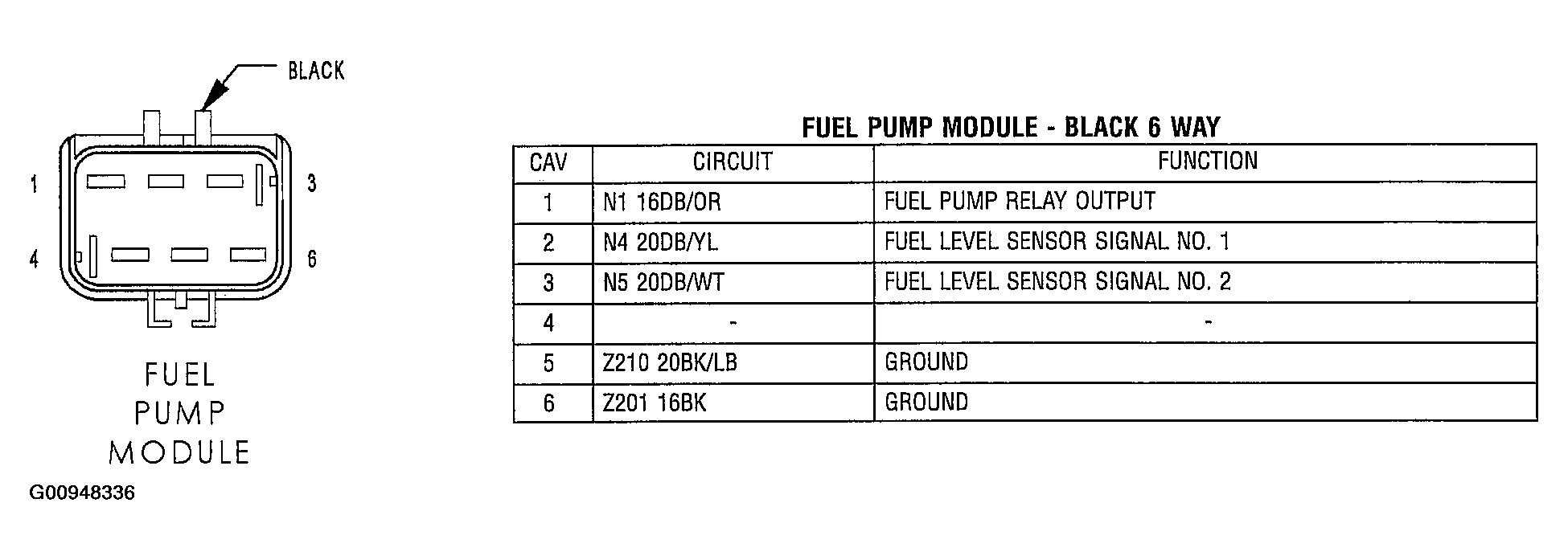

Fig 1: Identifying Fuel Pump Module - Black 6 Way Connector
G00948336Courtesy of DAIMLERCHRYSLER CORP.
