Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Radiator Fan Motor Connector End Views
Radiator Fan Motor Connector End Views

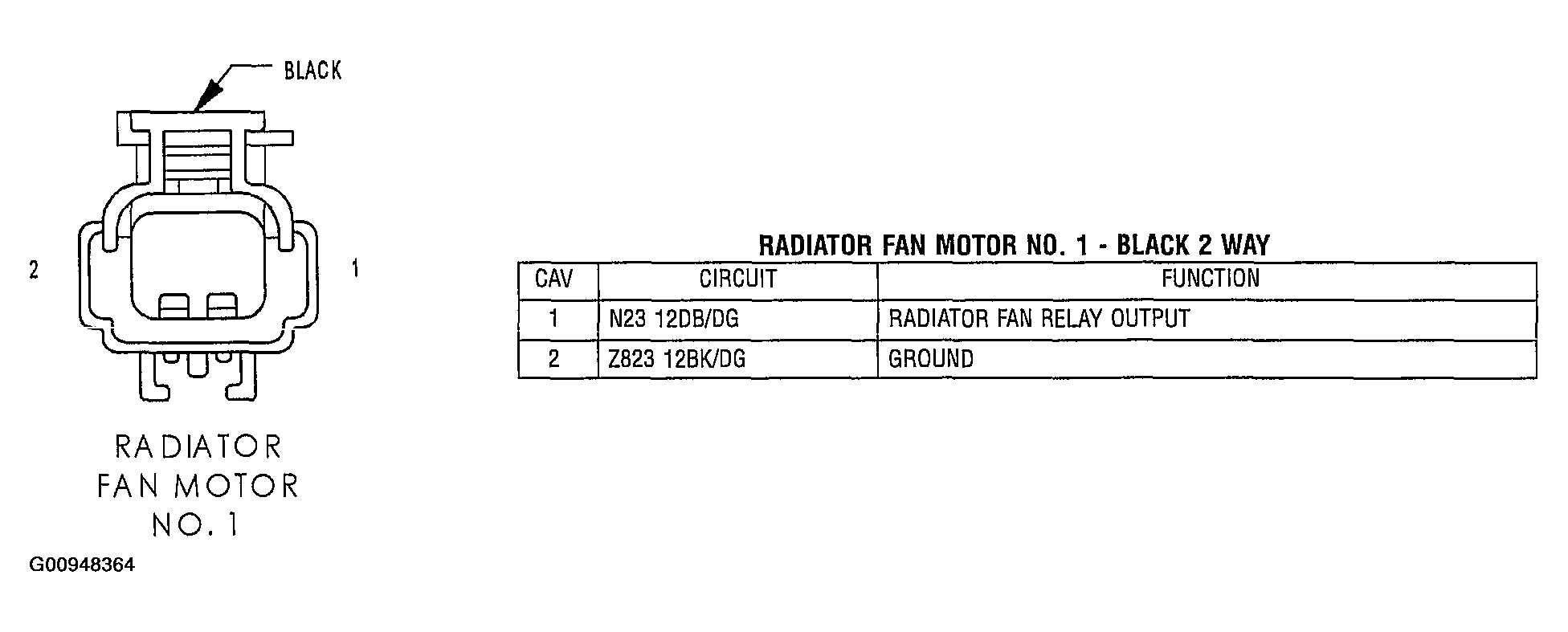

Fig 1: Identifying Radiator Fan Motor No. 1 - Black 2 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.

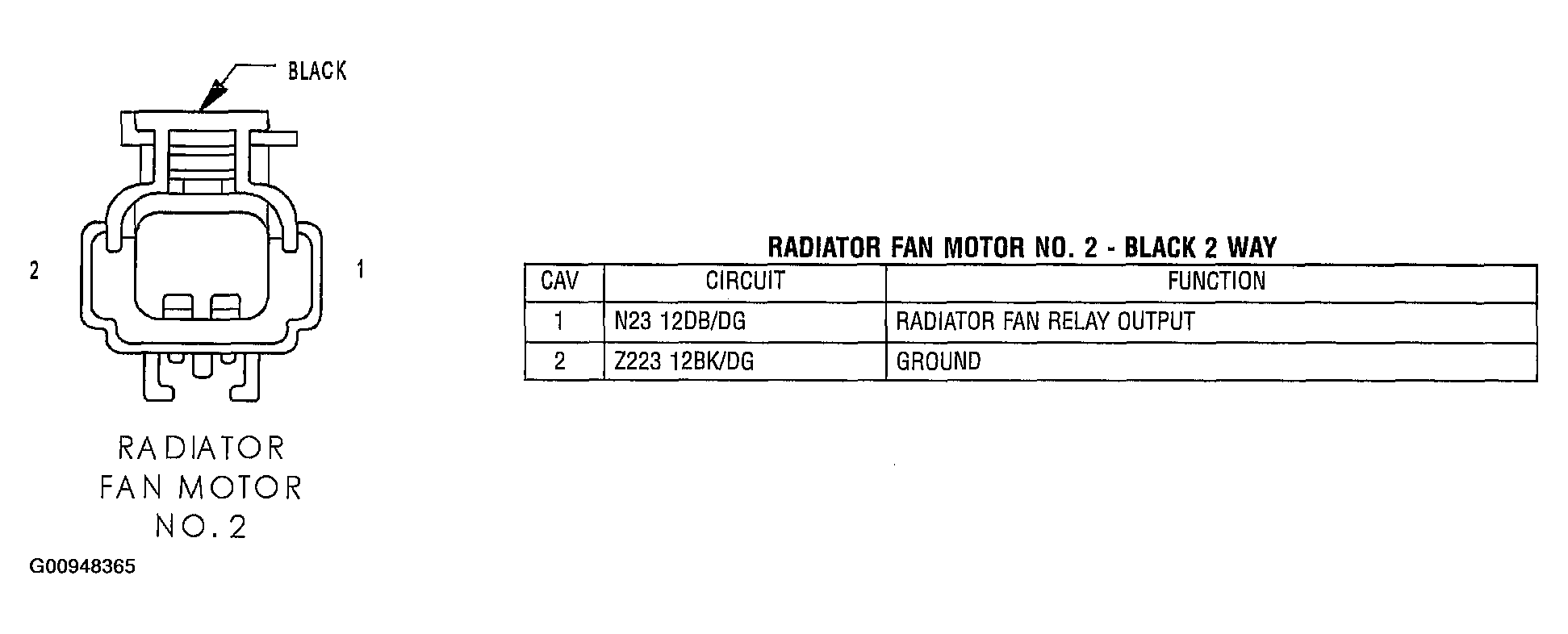

Fig 2: Identifying Radiator Fan Motor No. 2 - Black 2 Way Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
