Speed Control Servo Connector End View

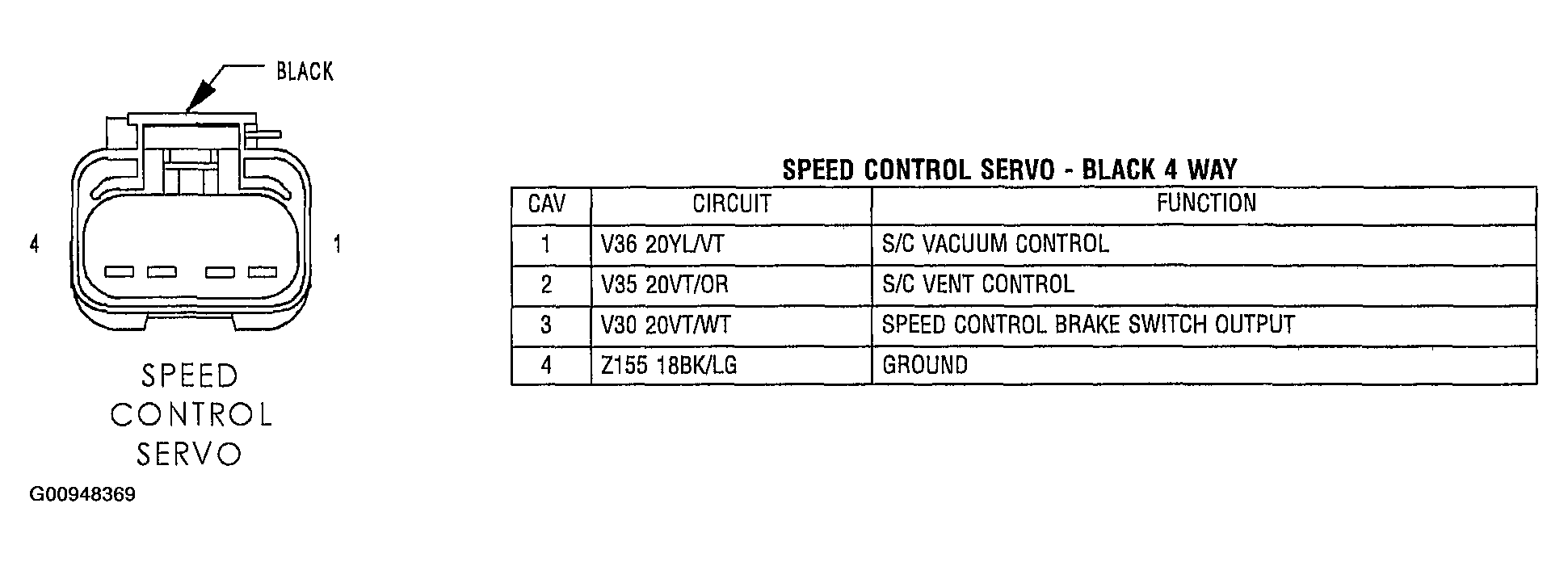

Fig 1: Identifying Speed Control Servo - Black 4 Way Connector
G00948369Courtesy of DAIMLERCHRYSLER CORP.
