Schematic Diagrams

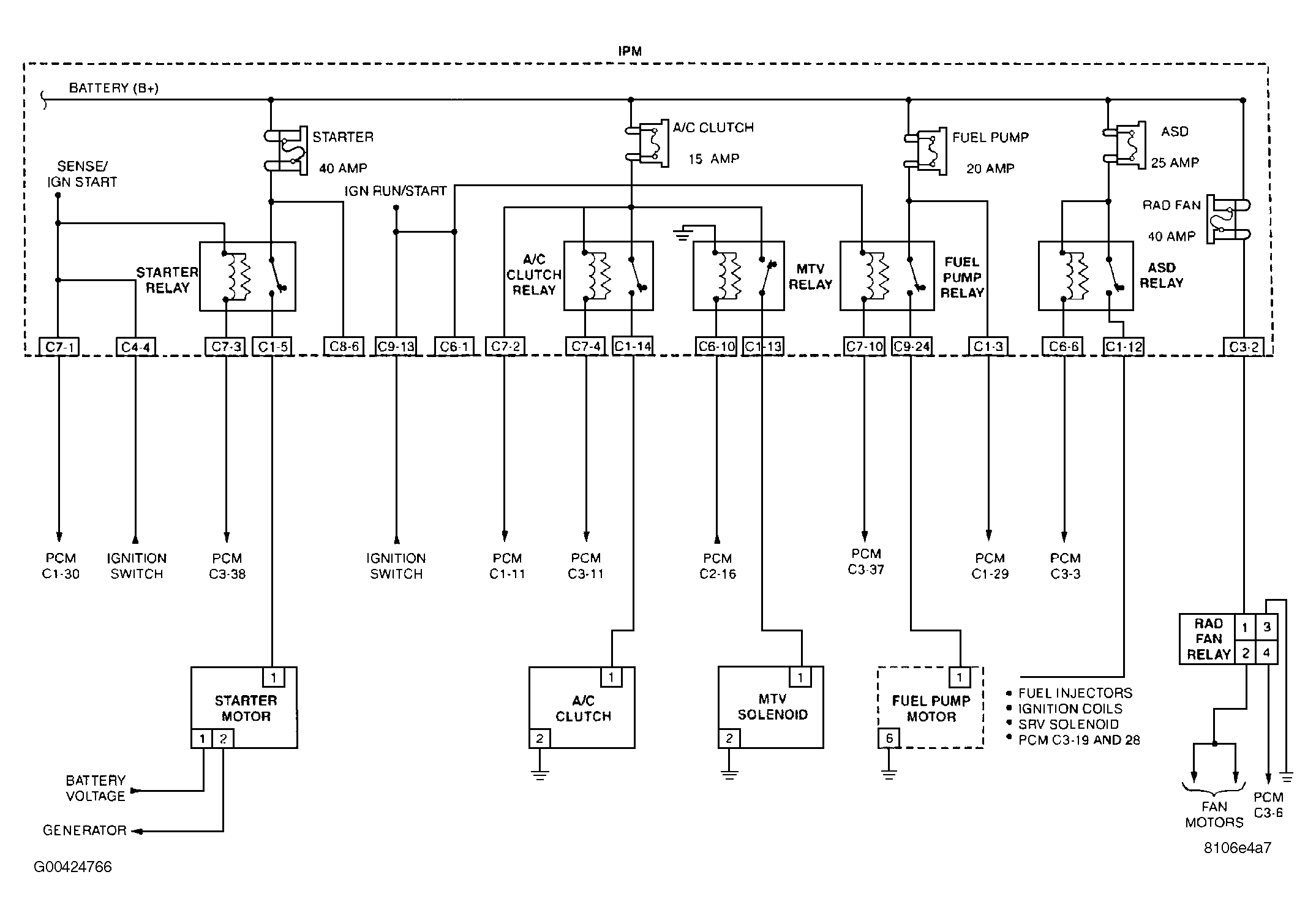

Fig 1: Schematic Diagram (1 Of 3)

G00424766

Courtesy of DAIMLERCHRYSLER CORPORATION

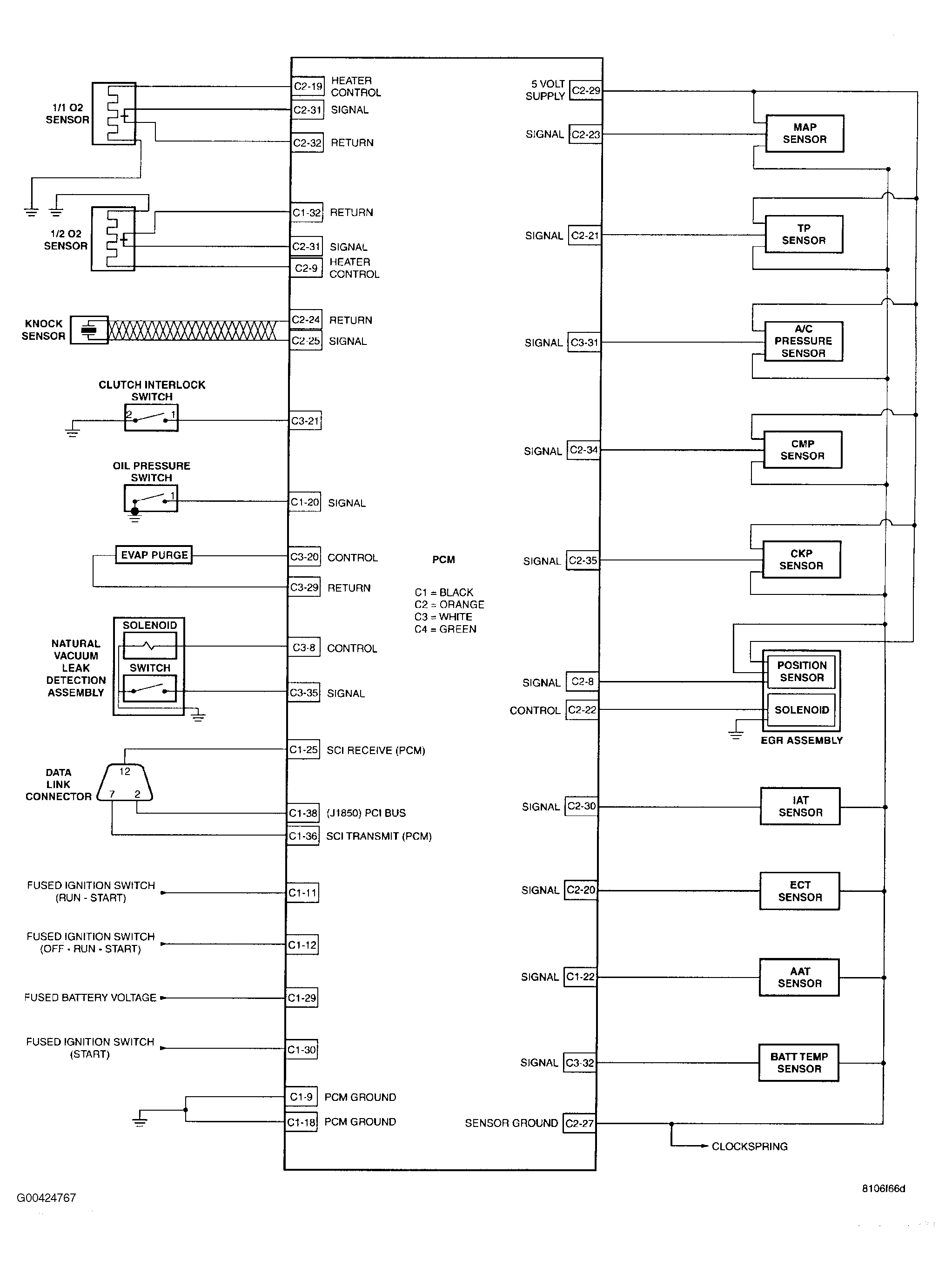

Fig 2: Schematic Diagram (2 Of 3)

G00424767

Courtesy of DAIMLERCHRYSLER CORPORATION

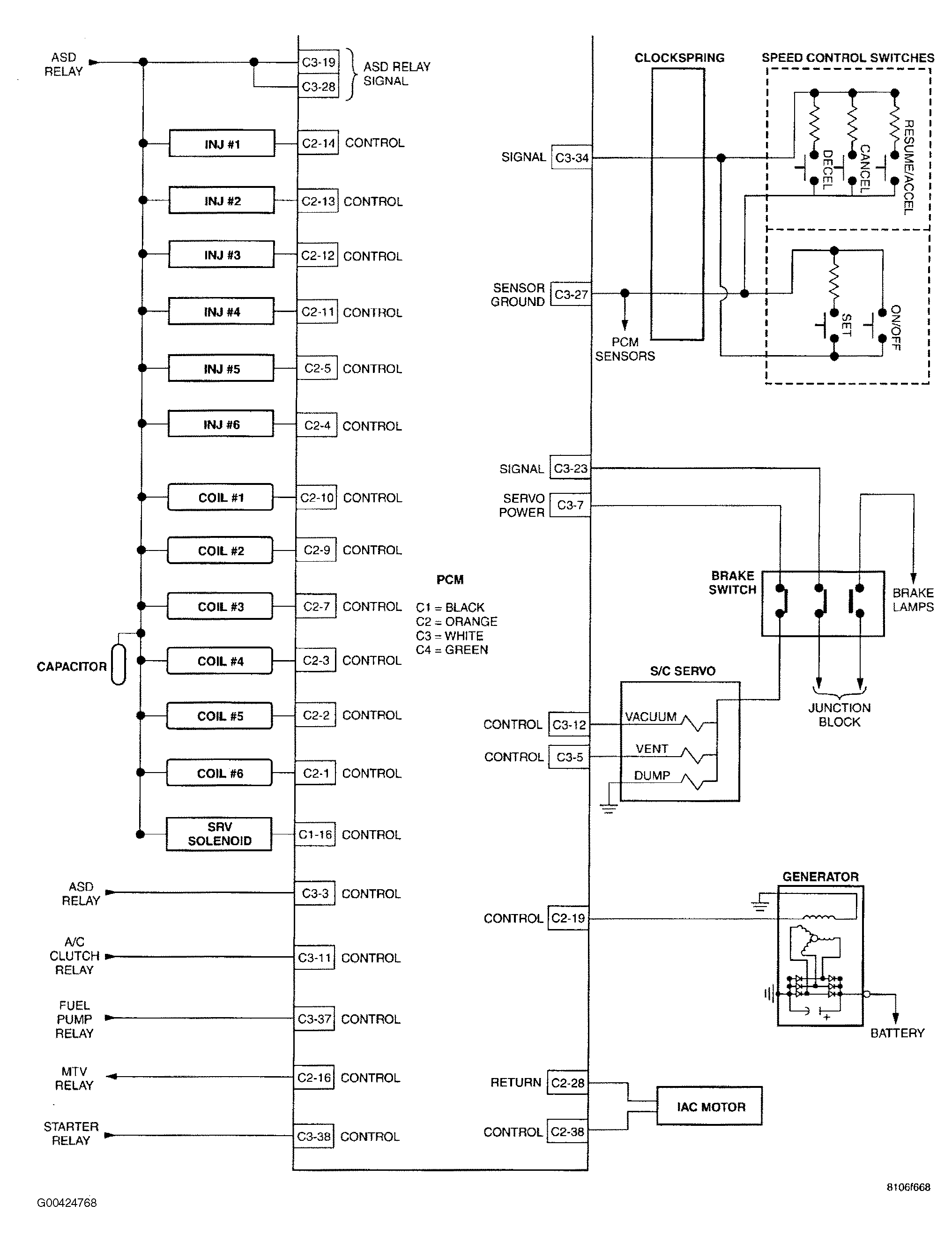

Fig 3: Schematic Diagram (3 Of 3)

G00424768

Courtesy of DAIMLERCHRYSLER CORPORATION
