Connector PINOUTS
›
Powertrain Control Module C4 - Black/Green 38 Way
Powertrain Control Module C4 - Black/Green 38 Way

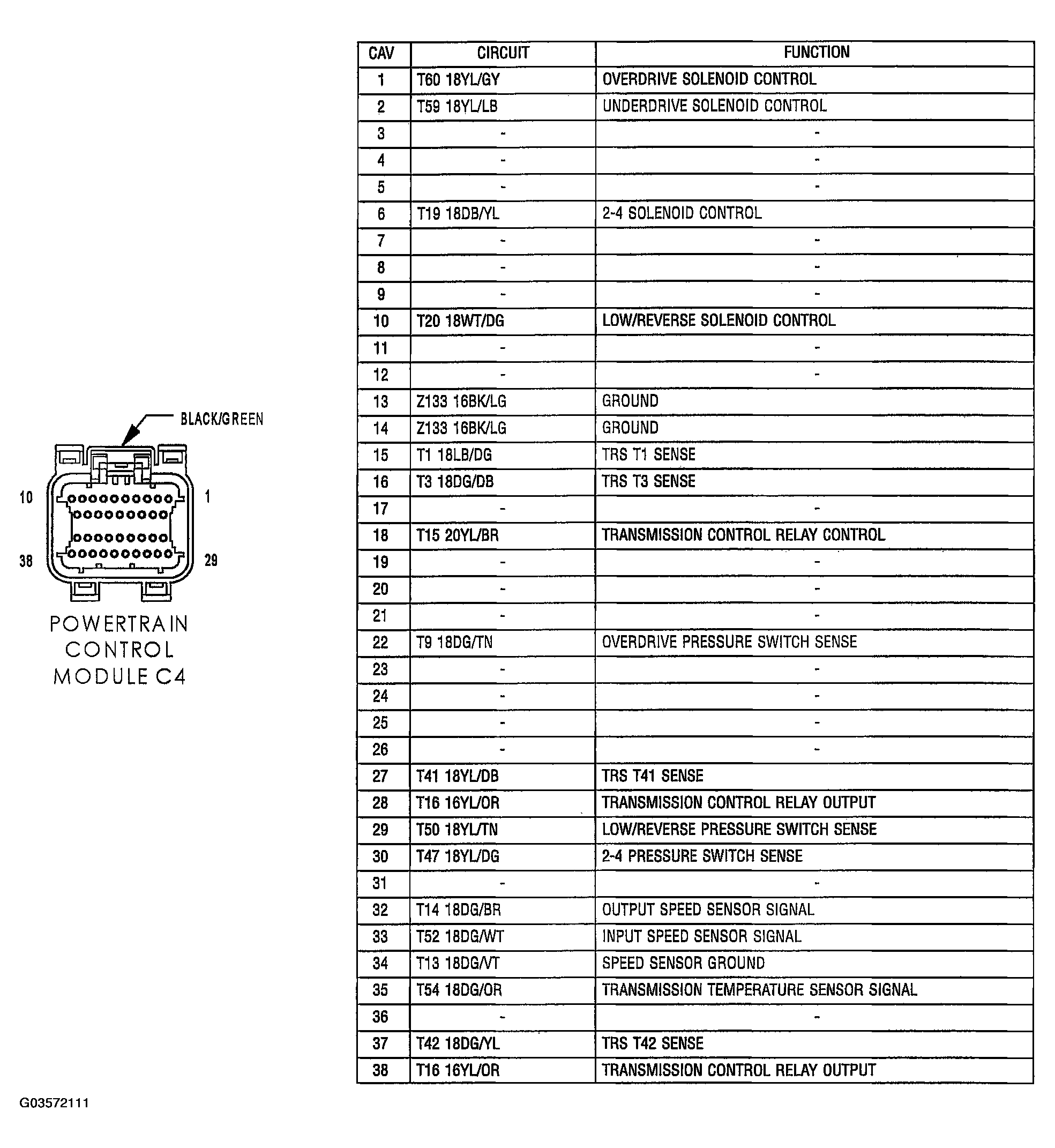

Fig 1: Identifying Powertrain Control Module C4 - Black/Green 38 Way Connectors
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
