Power Window Relay Check

SPECIFIC CONDITION

BATTERY VOLTAGE	TESTER CONNECTION	SPECIFIED CONDITION
Not applied	4-5	Open circuit
Connect terminal No. 1 to the positive battery terminal. Connect terminal No. 3 to the negative battery terminal.		Less than 2 ohms

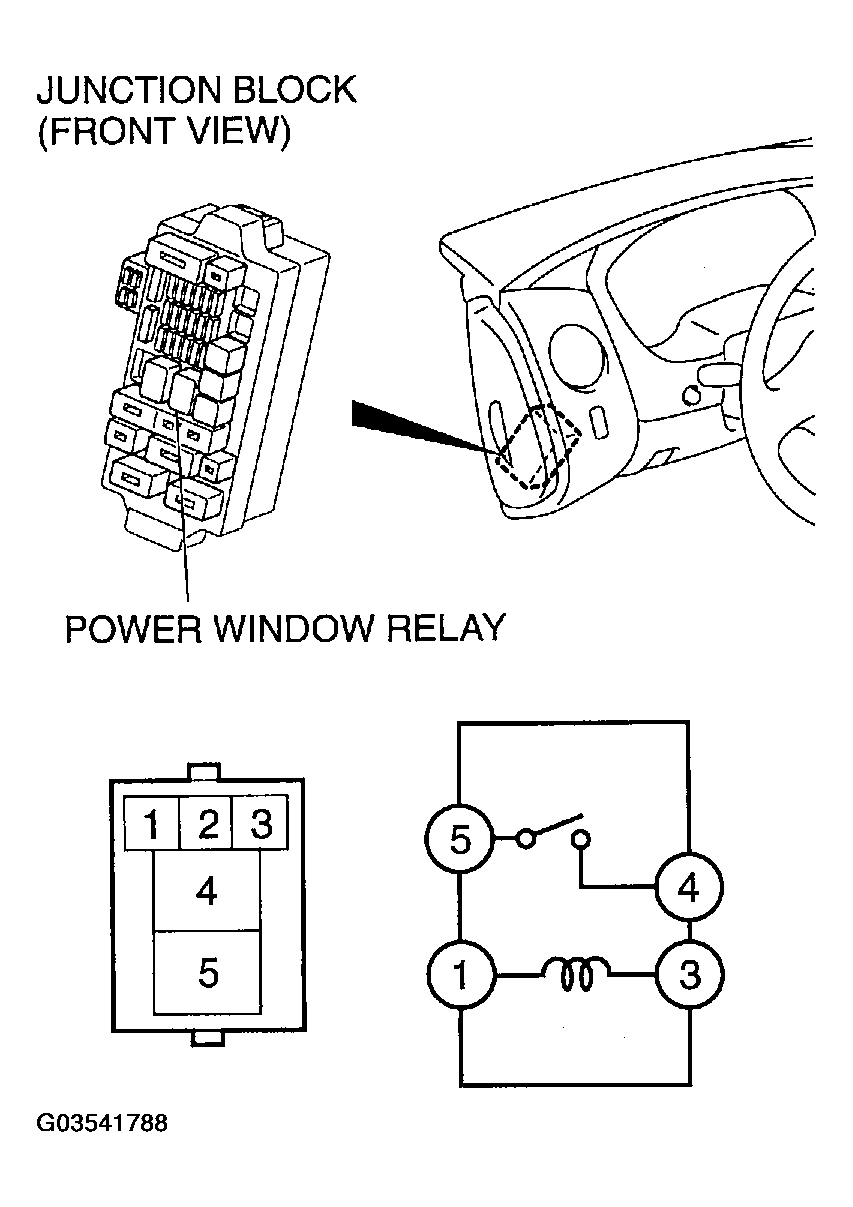

Fig 1: Identifying Power Window Relay Terminal

Courtesy of DAIMLERCHRYSLER CORP.
