Wheel Alignment Specifications

For wheel alignment specifications, see Fig 1 and Fig 2 .

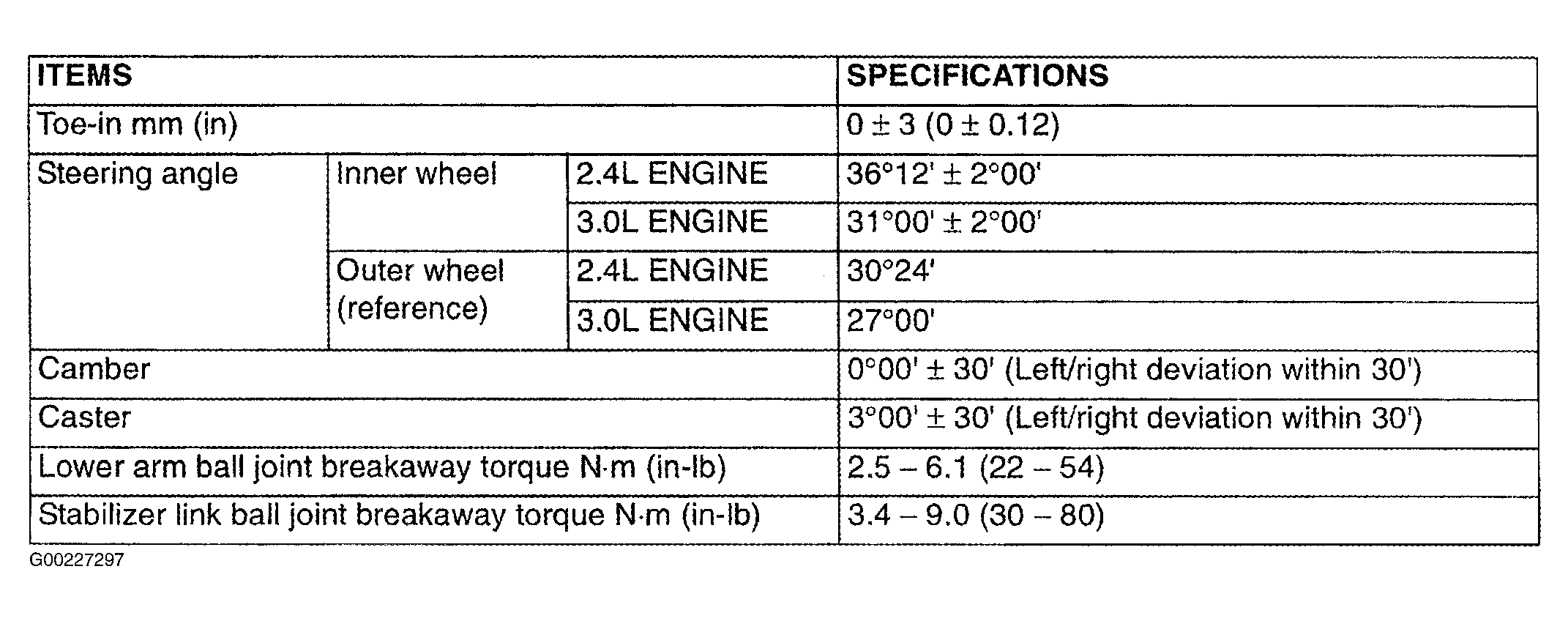

Fig 1: Wheel Alignment Specifications (Front)

Courtesy of CHRYSLER CORP.

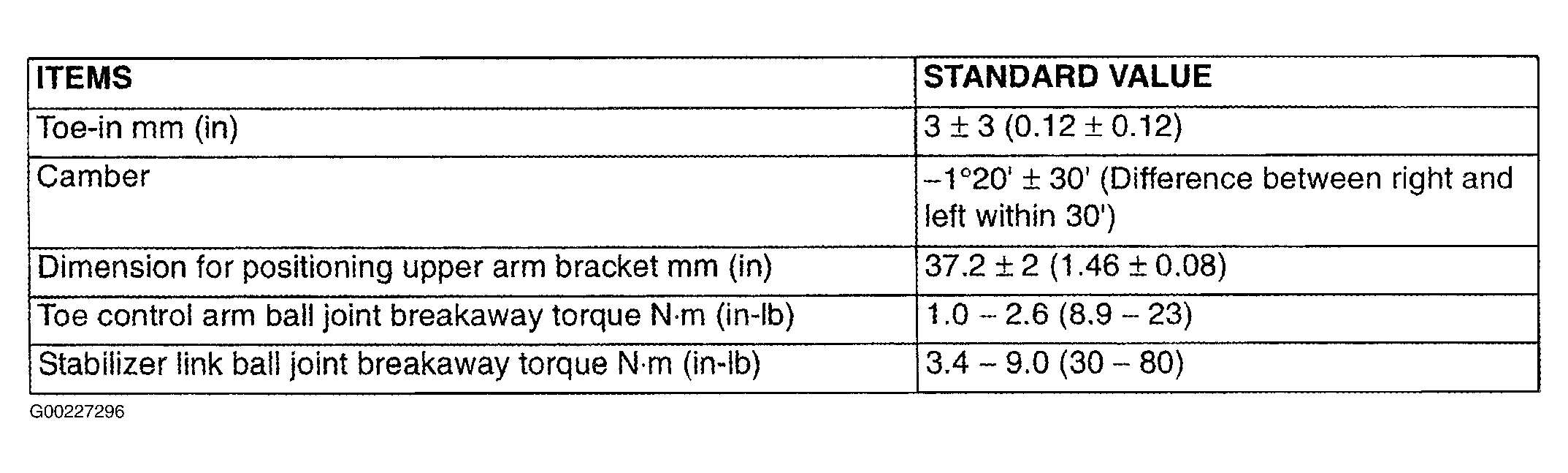

Fig 2: Wheel Alignment Specifications (Rear)

Courtesy of CHRYSLER CORP.
