Map Sensor: Description

The MAP sensor mounts to the driver side of the intake manifold plenum (Fig 1) or (Fig 2).

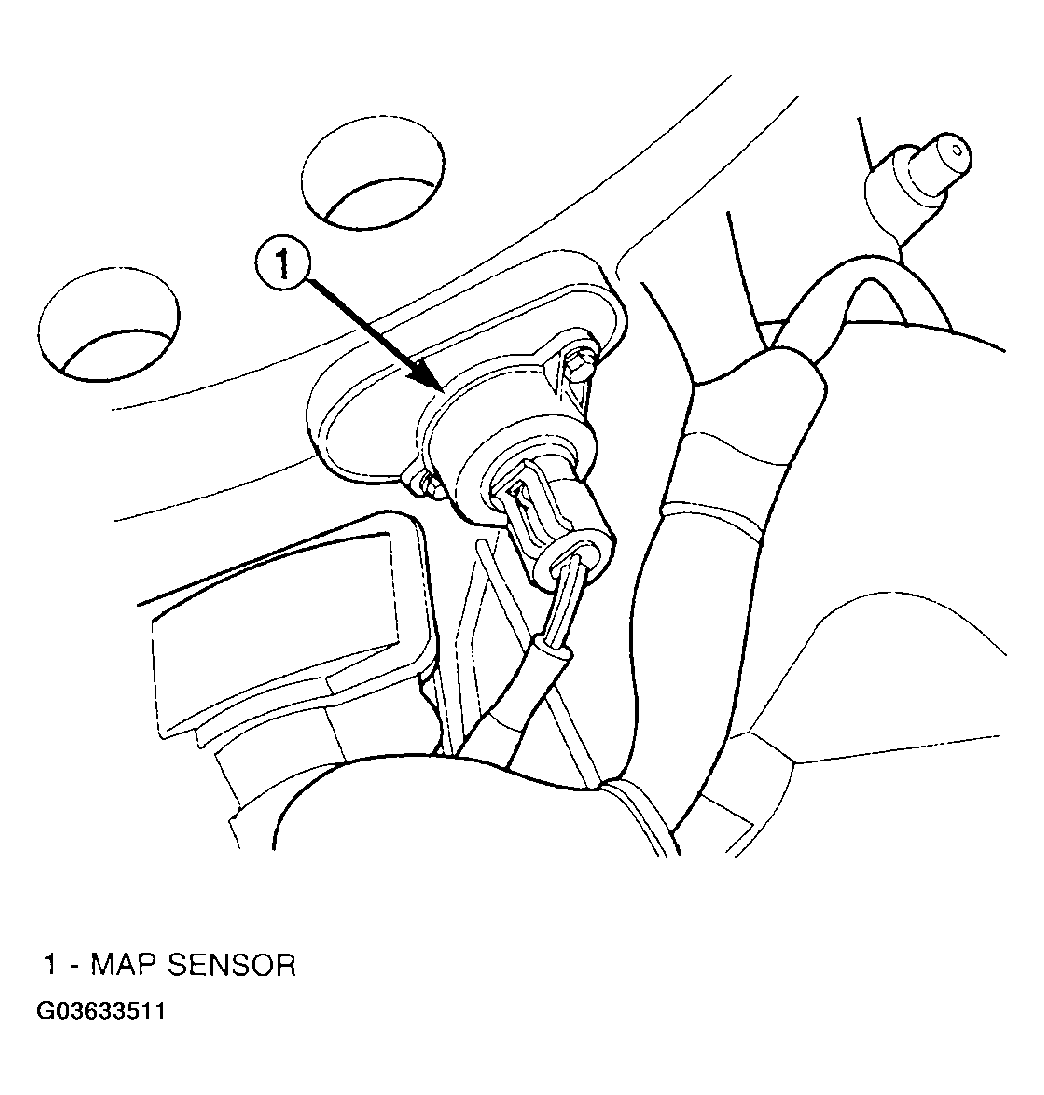

Fig 1: Identifying MAP Sensor 2.7L

Courtesy of DAIMLERCHRYSLER CORP.

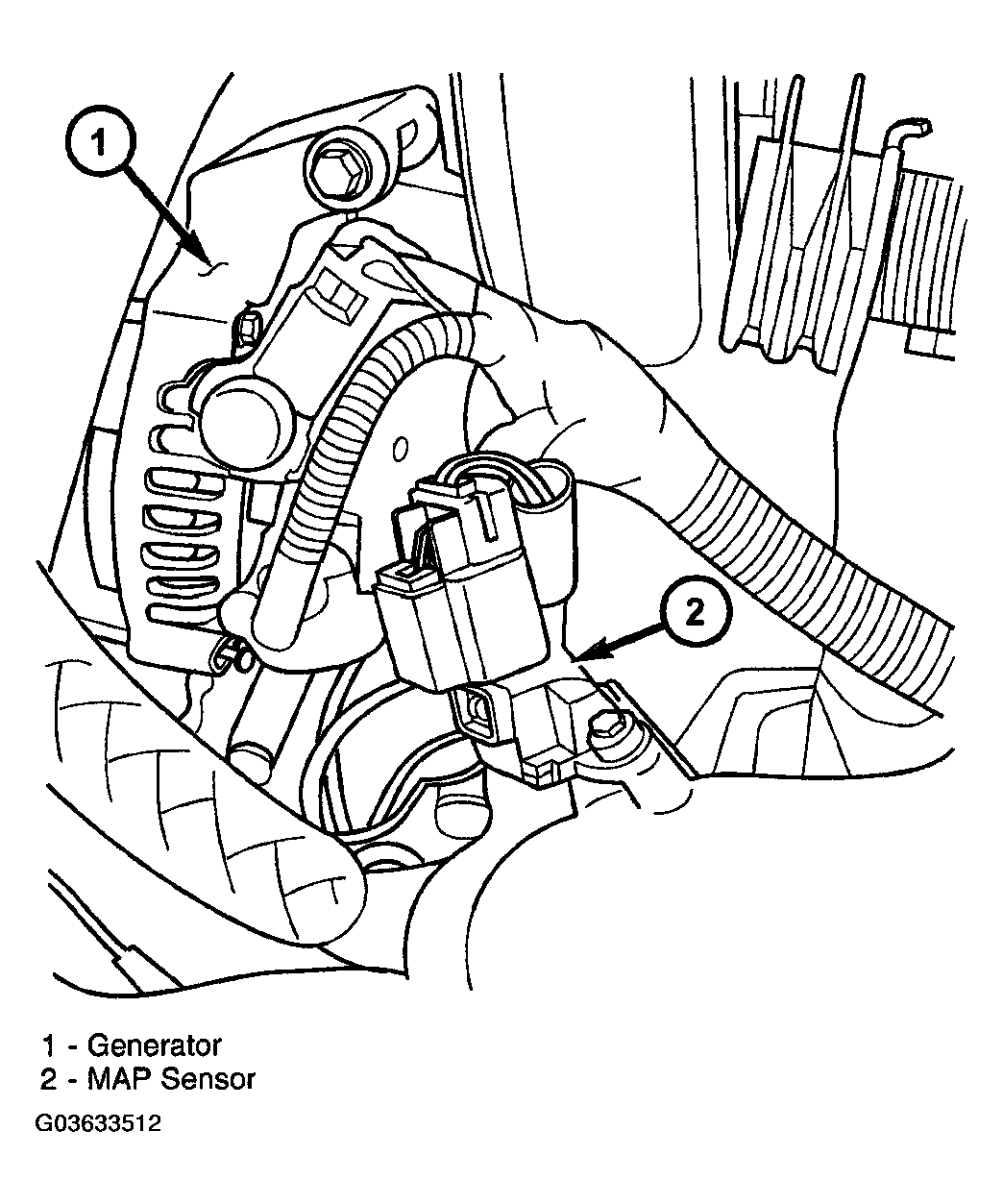

Fig 2: Identifying Generator And Map Sensor

Courtesy of DAIMLERCHRYSLER CORP.
