Installation - 4 Cylinder

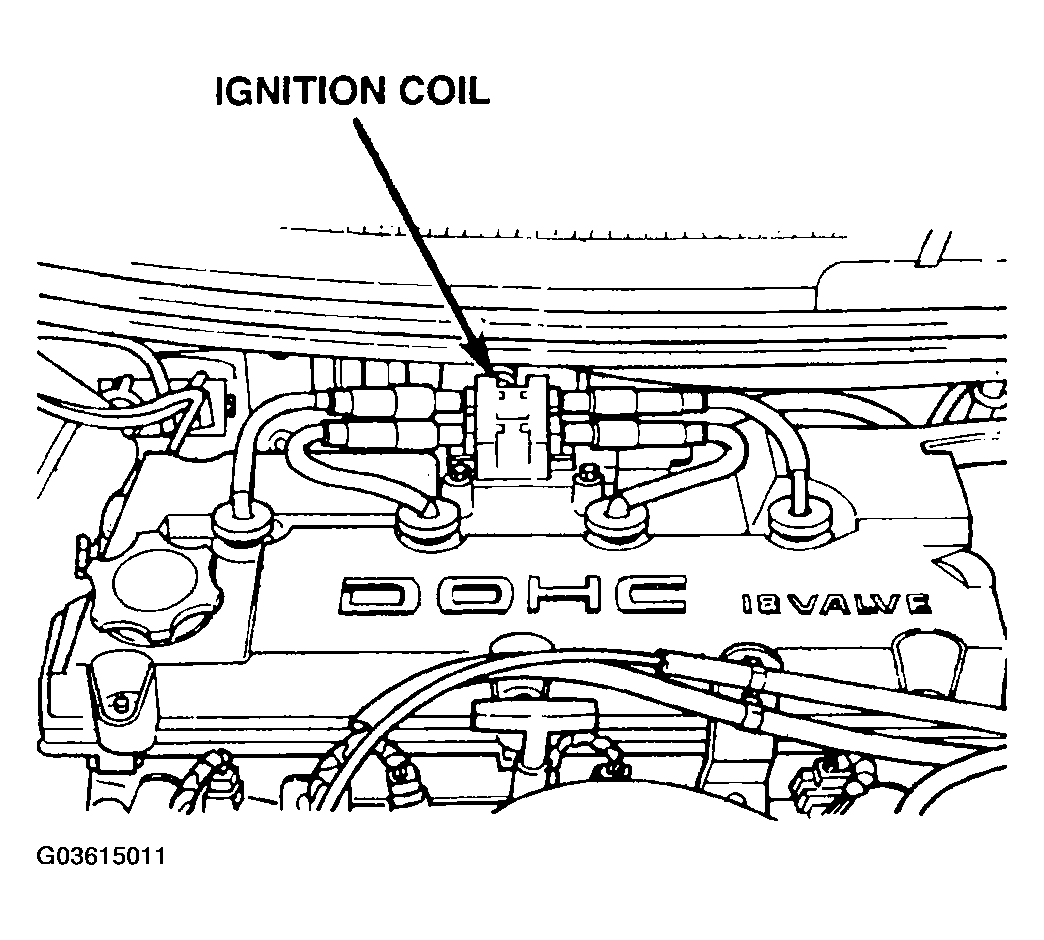

The electronic ignition coil pack attaches directly to the valve cover (Figure).

1. Install coil pack on valve cover.
2. Install bolts and tighten bolts to N.m 11.8 (105 in. lbs.).

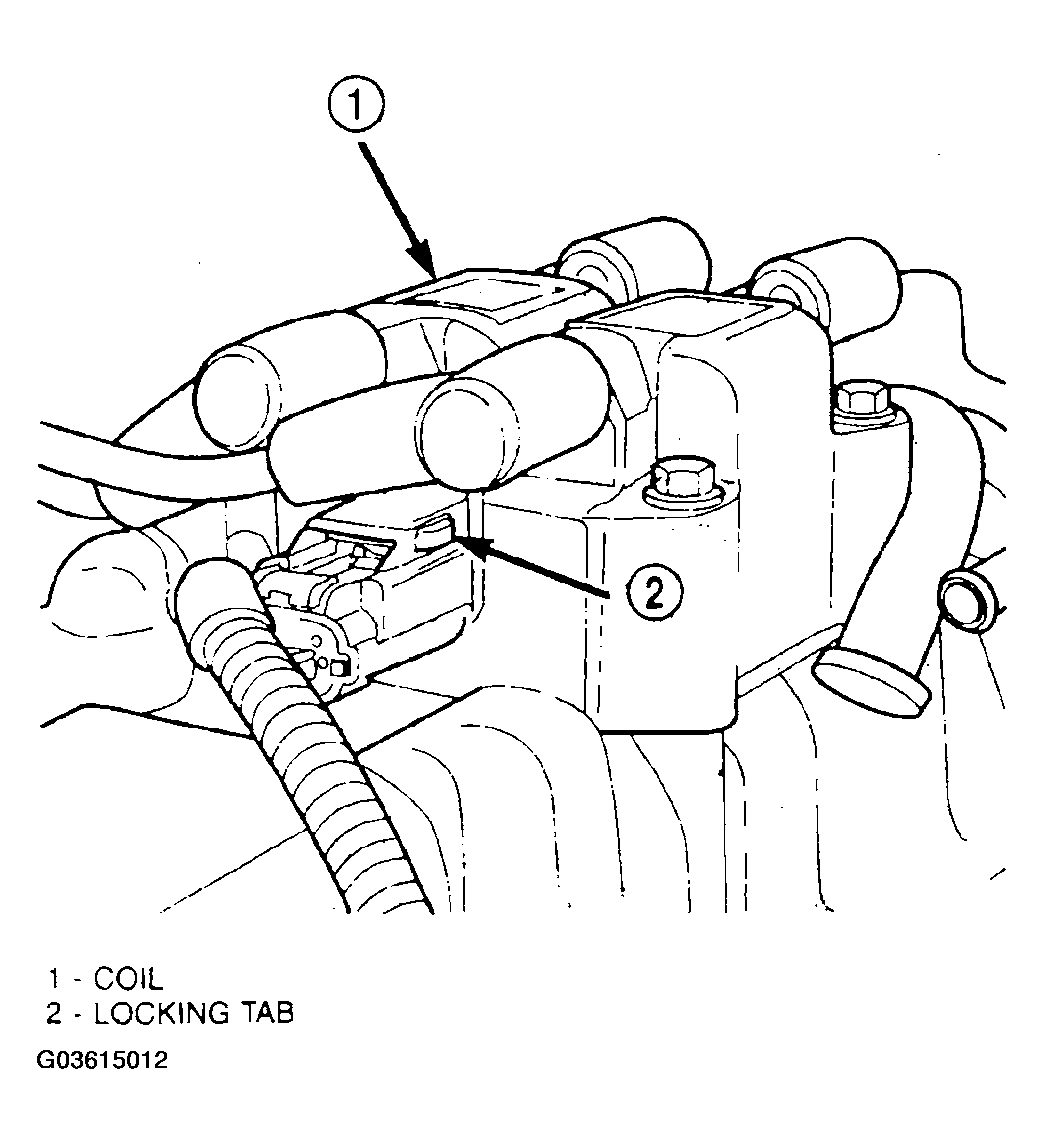

3. Connect the electrical connector (Figure).
4. Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the ignition cables snap onto the towers.
