Diagnosis And Testing - Window Switch

For switch testing, remove the switch. (Refer to REMOVAL ). Using an ohmmeter, refer to Window Switch Continuity Charts to determine if continuity is correct (Fig 1 ) and (Fig 2 ). If the results are not obtained, replace the switch.

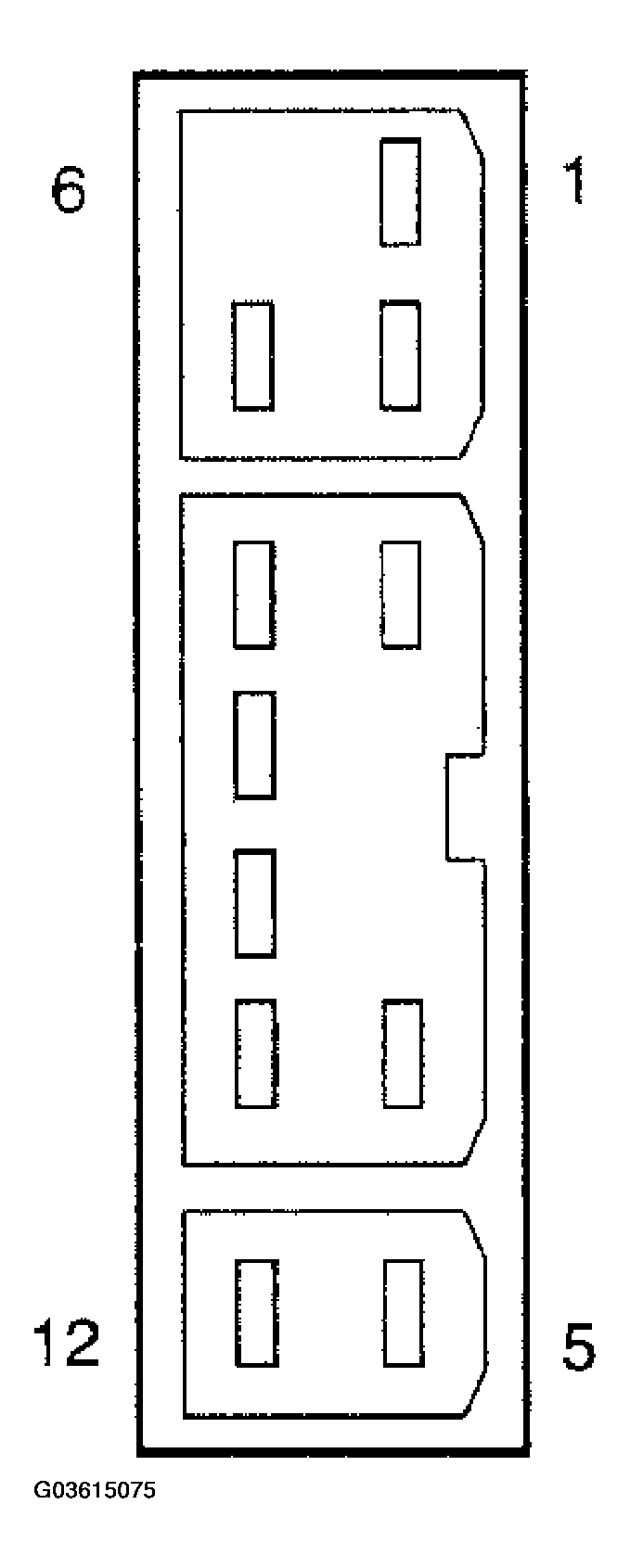

Fig 1: Identifying Master Window Switch Connector

Courtesy of DAIMLERCHRYSLER CORP.

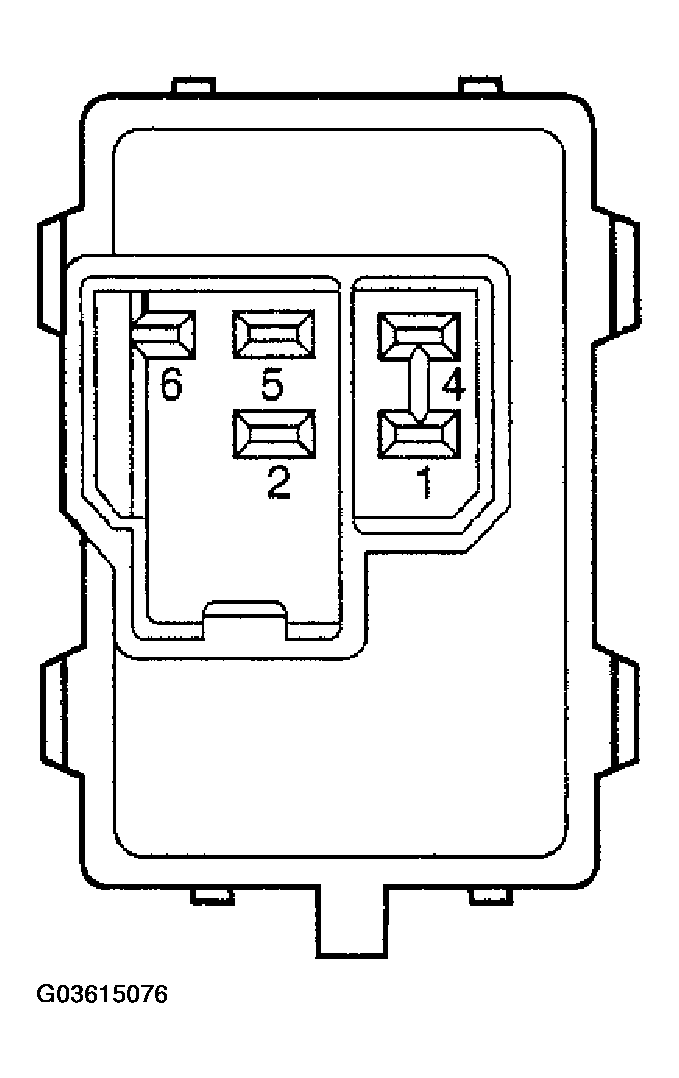

Fig 2: Identifying Passenger Window Switch Connector

Courtesy of DAIMLERCHRYSLER CORP.

The master window switch has an Auto-Down feature. Actuation of the master switch to the second down position will move the drivers side window completely down. The electronic switch will automatically disconnect the motor approximately 1 second after the window bottoms out. Failure of the electronic switch to detect stall current, will cause the switch to disconnect after approximately 13 seconds. The auto down function can be canceled by any movement of that switch.

MASTER WINDOW SWITCH TEST

SWITCH POSITION	CONTINUITY BETWEEN
OFF	10 AND 2
	10 AND 3
	10 AND 4
	10 AND 7
	10 AND 8
	10 AND 9
	10 AND 11
	10 AND 12
LEFT FRONT UP	1 AND 7
LEFT FRONT UP	8 AND 10
LEFT FRONT DOWN	1 AND 8
LEFT FRONT DOWN	7 AND 10
RIGHT FRONT UP	1 AND 12
RIGHT FRONT UP	10 AND 11
RIGHT FRONT DOWN	1 AND 11
RIGHT FRONT DOWN	10 AND 12
LEFT REAR UP	3 AND 10
LEFT REAR UP	1 AND 2
LEFT REAR DOWN	3 AND 1
LEFT REAR DOWN	2 AND 10
RIGHT REAR UP	1 AND 4
RIGHT REAR UP	9 AND 10
RIGHT REAR DOWN	1 AND 9
RIGHT REAR DOWN	4 AND 10
LOCKOUT SWITCH (SWITCH NOT DEPRESSED)	1 AND 5

PASSENGER WINDOW SWITCH TEST

SWITCH POSITION	CONTINUITY BETWEEN
OFF	2 AND 5
OFF	1 AND 4
UP	1 AND 4
UP	5 AND 6
DOWN	2 AND 5
DOWN	1 AND 6
