Chrysler
›
2004
›
Town & Country Base
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Integrated Power Module C8 - Orange 10 Way
Integrated Power Module C8 - Orange 10 Way

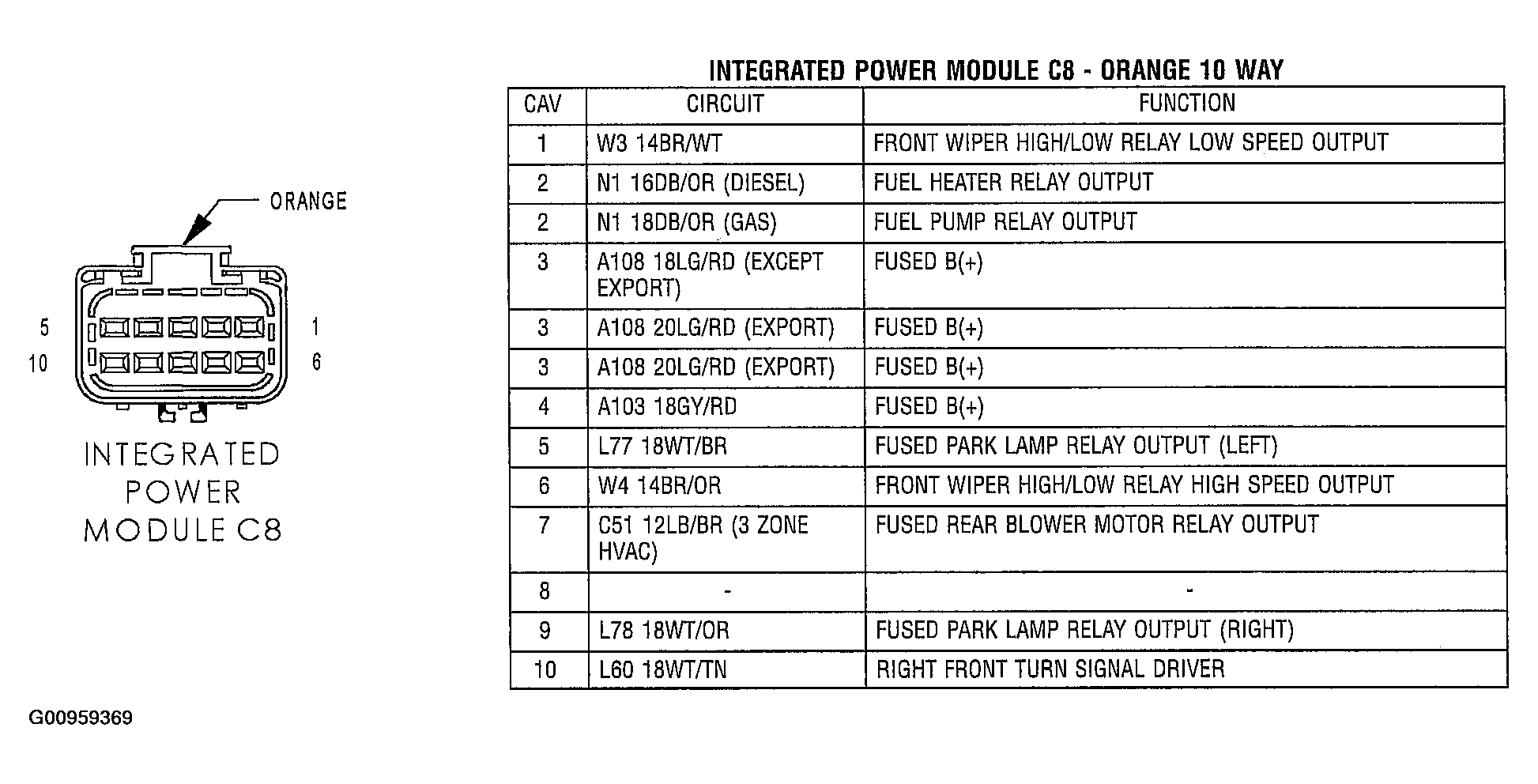

Fig 1: Identifying Integrated Power Module C8 - Orange 10 Way Connector Pinouts And Functional Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
