DRIVEABILITY - NGC - Diagnostic Tests
›
P0133-O2 Sensor 1/1 Slow Response, P0139-O2 Sensor 1/2 Slow Response
›
Diagnostic Procedure
Diagnostic Procedure

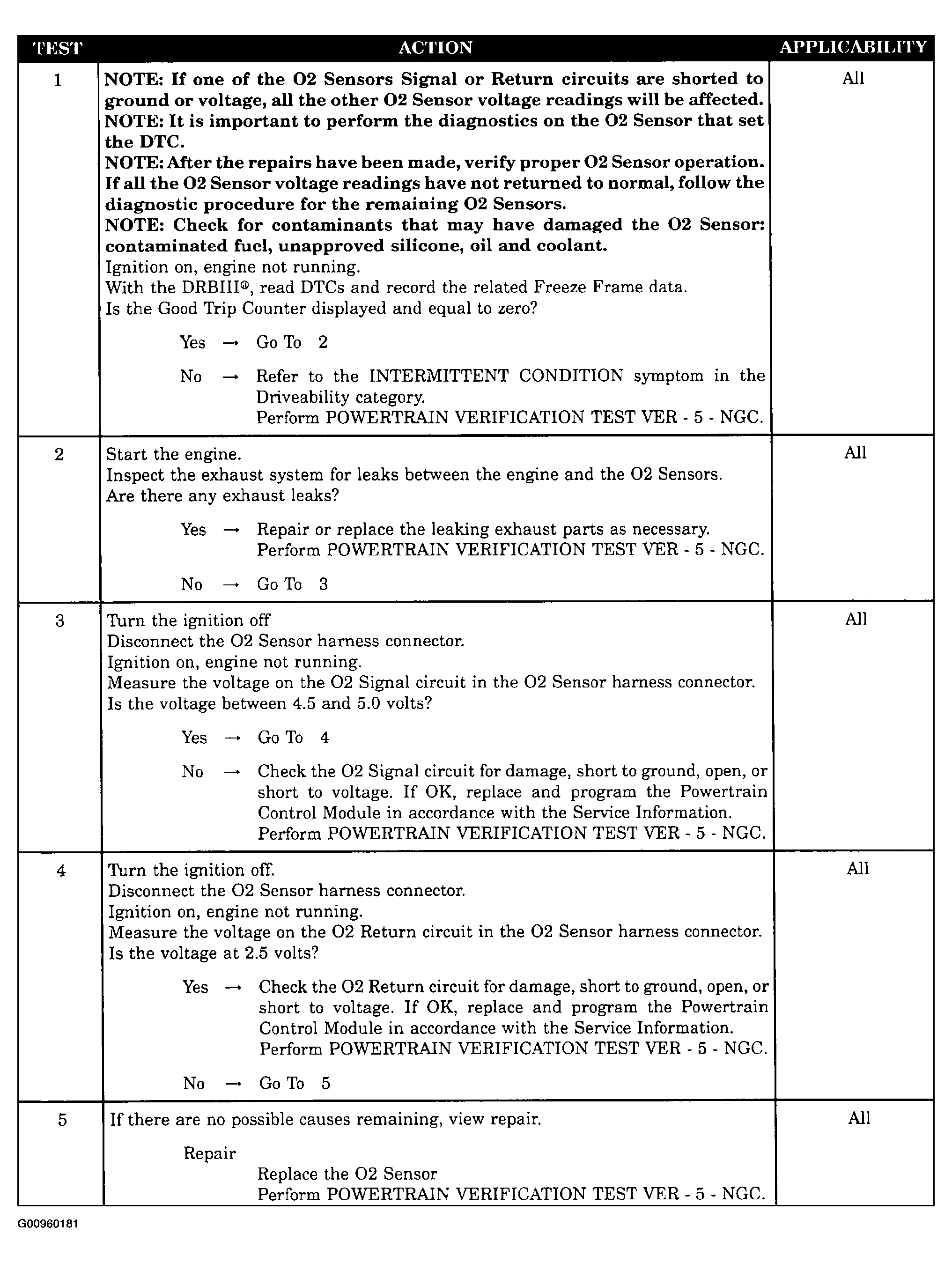

Fig 1: O2 Sensor 1/1 Or 1/2 Slow Response Diagnostic Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
