Power Window Switch: Installation

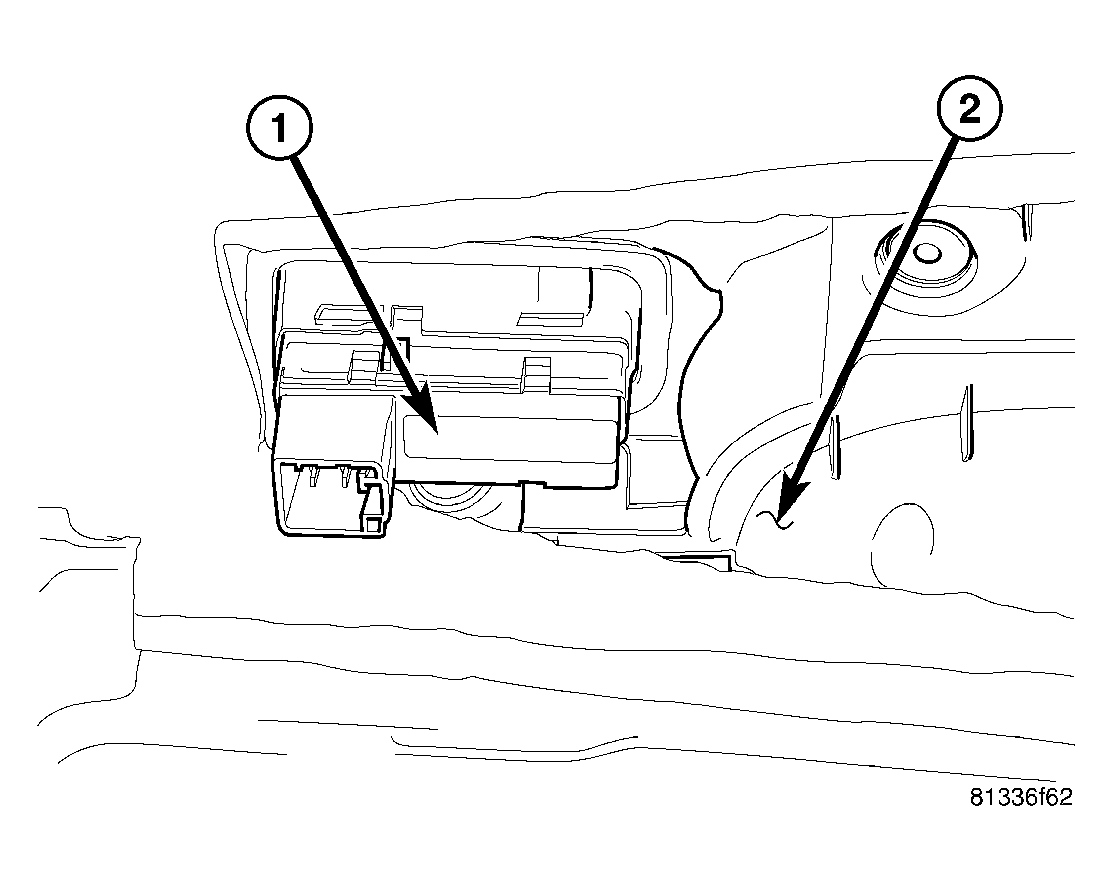

Fig 1: View Of Switch At Door Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .

1. Install switch (1) to rear door trim panel (2).
2. Install rear door trim panel (Refer to BODY/DOORS - REAR/TRIM PANEL - INSTALLATION) .
3. Connect battery negative cable.
