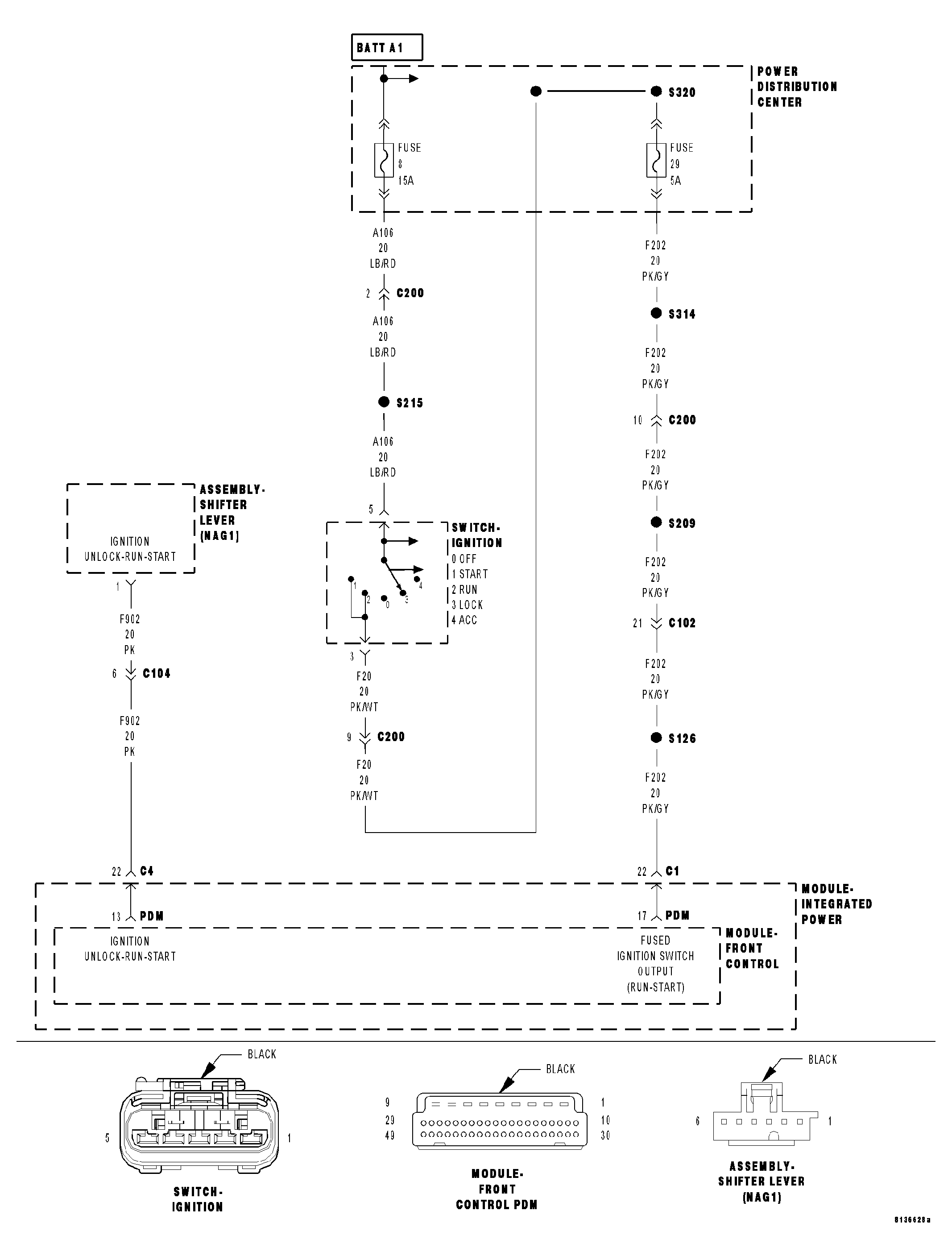

Home › Chrysler › 2005 › 300 Base › Repair and Diagnosis › Engine Performance › Ignition System › Ignition System - Electrical Diagnostics › DTC Troubleshooting › B2105-Ignition Unlock Run/Start Control Circuit High › Circuit Schematic
