Section 130 (Speed Control): Reservoir-Vacuum: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

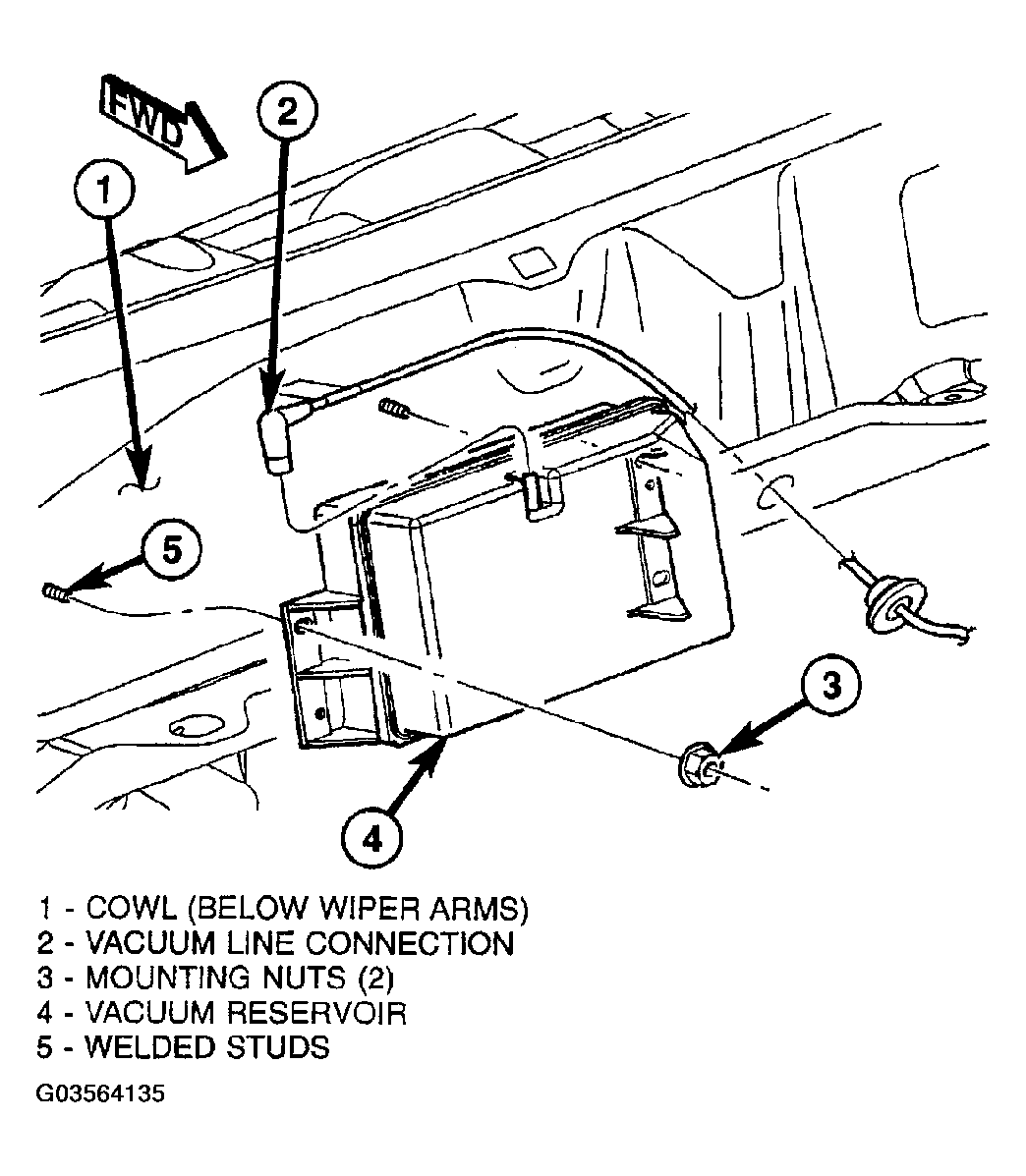

- Position reservoir onto 2 weld studs (Figure).
- Install 2 mounting nuts and tighten. Refer to TORQUE - SPEED CONTROL .
- Connect vacuum line to reservoir fitting.
- Install cowl grill. Refer to COWL GRILLE .
- Install wiper arms / blades. Refer to WIPERS/WASHERS .
